Radium Engineering PCV Fluid Lock Catch Can Kit Toyota Chaser / Mark II (JZX100) 1JZ-GTE

Radium Engineering PCV Fluid Lock Catch Can Kit - Toyota Chaser / Mark II (JZX100) - 1JZ-GTE

Radium Engineering builds precision CNC machined billet aluminium catch cans trusted by professional motorsport teams and serious enthusiasts worldwide. The 20-0738-FL is a purpose-built PCV solution for the Toyota Chaser / Mark II (JZX100), intercepting oil-saturated crankcase vapour before it contaminates the intake manifold and degrades 1JZ-GTE performance over time.

This listing covers the Radium Engineering PCV Fluid Lock Catch Can Kit for the Toyota Chaser (JZX100) and Toyota Mark II (JZX100), model years 1996–2001, fitted with the 1JZ-GTE engine. One kit only — no variants.

Key Features

• Fluid Lock design — prevents fluid draining back into the engine when the can is full
• Inline on the PCV circuit between the PCV valve and intake manifold
• 2-step oil separation baffling for highly effective oil mist capture
• Large 10AN ORB inlet and outlet ports minimise flow restriction
• 4AN ORB drain port allows clean draining without removing the can
• O-ring sealed dipstick for fluid level checks without opening the system
• Closed-loop design — no venting to atmosphere, emissions compliant and track legal
• JZX100-specific bracket mounts to factory threaded bosses behind the RH strut tower — no cutting or drilling required
• Capacity: approximately 207 mL (7 fl oz)
• Height (without fittings): approximately 127 mm (5 in)
• Outside diameter: approximately 62 mm (2.45 in)

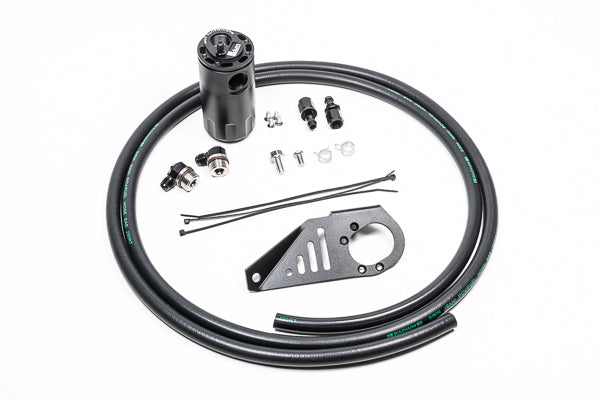

Kit Contents

• Baffled Fluid Lock oil catch can
• JZX100-specific CNC machined billet aluminium mounting bracket
• AN adapter fittings and hose ends
• Radium PCV hose
• Stainless steel hardware

Vehicle compatibility, part numbers, and fitment notes are provided in the tabs above. Please confirm your vehicle's year, engine code, and configuration before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
