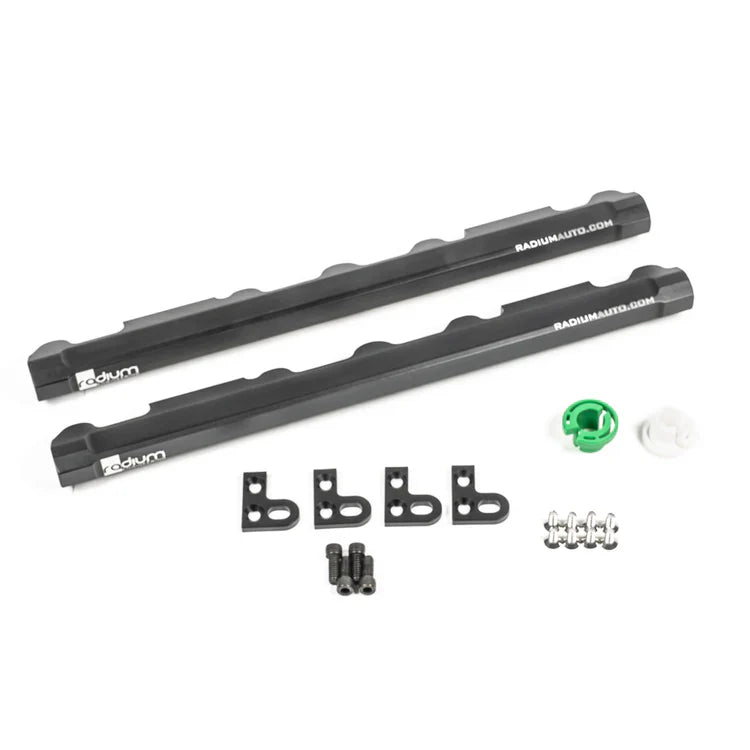

Radium Engineering Fuel Rails – Ford 302/351 Windsor
Radium Engineering builds fuel system hardware to motorsport grade tolerances, and this fuel rail kit brings that same precision to the Ford 302/351 Windsor platform. CNC machined from 6061 billet aluminium, black anodised and laser etched, these rails are engineered to support serious power while bolting straight onto the factory injector seats.
This listing covers the Ford 302 Windsor and 351 Windsor engines, SKU 20-1302. The rails mount in the stock location with injectors sitting perpendicular to the intake manifold, just like OEM, so no spacers or fabrication are needed.
Note: Fuel line fittings are not included — the 8AN ORB and 1/8 NPT ports need appropriate fittings selected for your specific fuel system setup.
Specifications
- Material: 6061 billet aluminium, black anodised and laser etched
- Internal bore: 16mm (5/8 in) for maximum flow
- Port configuration: 3 ports per rail (6 total), 8AN ORB and 1/8 NPT thread
- Mounting hardware: black oxide stainless steel 1/4"-20 screws, stainless steel M5x0.8mm screws
- Included: black anodised aluminium fuel rail mounts, 12.7mm (1/2 in) and 15.9mm (5/8 in) disconnect tools
- Fuel compatibility: pump petrol, E85, and all standard fuel types
- Fitment: bolt-on, no cutting or spacers required
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your engine configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Ford | — | — | 302 Windsor |
| Ford | — | — | 351 Windsor |
Technical Specifications
| Spec | Value |
|---|---|
| Part Number | 20-1302 |
| Application | Ford 302 / 351 Windsor |
| Internal Bore | 15.9 mm (5/8 in) |
| Material | 6061 billet aluminium, CNC machined |
| Finish | Black anodized, laser etched |
| Rail Mounts | Black anodized aluminium |
| Ports per Rail | 3 (6 total) |
| Port Thread Type | 8AN ORB, tapped for 1/8 NPT |
| Mounting Screws | Black oxide stainless steel, 1/4in-20 |
| Additional Screws | Stainless steel, M5 x 0.8 mm |
| Disconnect Tool 1 | 12.7 mm (1/2 in) |
| Disconnect Tool 2 | 15.9 mm (5/8 in) |
No instructions available for this product.
