Radium Engineering Fuel Pump Outlet Adaptor Walbro 460 / DW400 / Bosch BR540 6AN Male

Radium Engineering Fuel Pump Outlet Adaptor - Walbro 460 / DW400 / Bosch BR540 - 6AN Male

Radium Engineering builds precision fuel system hardware trusted by tuners and race teams worldwide. This outlet adaptor is a clean, purpose-built solution for anyone integrating high-flow pumps into an AN-plumbed fuel system — no hose barbs, no compromise.

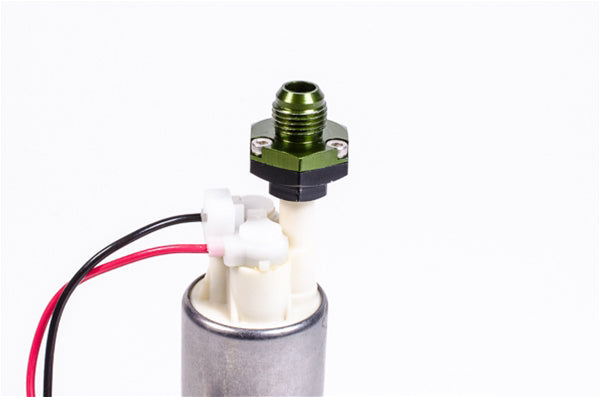

This listing covers the Radium Engineering 20-0298 fuel pump outlet adaptor in 6AN Male configuration (green upper fitting, short profile). It is compatible with the Walbro / TI Automotive F90000267, F90000274, F90000274, F90000285, F90000295, TI Automotive E5LM (BKS1000 Brushless Controller Kit), Bosch Motorsport BR540, and Deatschwerks DW400 fuel pumps.

Important: Before purchasing, inspect the pump outlet plastic hose barb ridges. Damaged or out-of-round barb ridges may prevent the O-ring from seating correctly and achieving a leak-free seal.

Key Features

• Converts hose-barbed pump outlet to 6AN male for clean AN hose integration
• Two-piece billet aluminium construction with stainless steel bolts and retainer
• Viton O-ring seal — compatible with E85, ethanol, methanol, and pump petrol
• Short profile design — approximately 11mm (0.42 in) shorter than the 20-0599 variant, ideal for space-constrained installations
• Identified by green upper fitting
• Manufactured in the USA to motorsport-grade tolerances

Compatible pump part numbers and additional fitment details are provided in the tabs above. Please confirm your pump model before ordering.

Not sure if this adaptor suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
