Radium Engineering Fuel Pump Hanger Toyota GR Supra (A90)

Radium Engineering Fuel Pump Hanger - Toyota GR Supra (A90)

Radium Engineering builds precision fuel system components trusted by professional motorsport teams and serious enthusiasts worldwide. The 20-0760 Fuel Pump Hanger is a purpose-engineered drop-in solution that adds an independent port injection pump circuit to the Toyota GR Supra A90/A91 without touching the factory direct injection system — no tank modifications, no compromises.

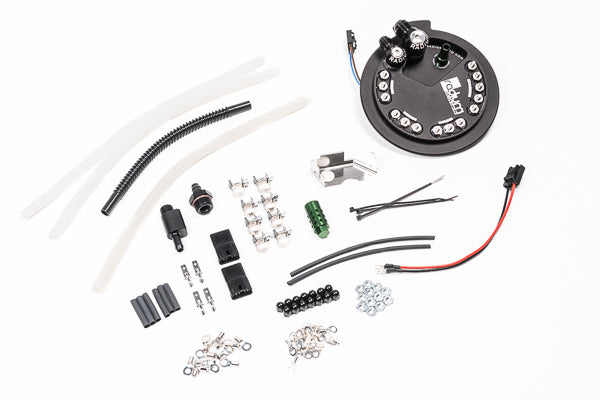

This listing covers the Radium Engineering 20-0760 Fuel Pump Hanger, designed to suit the Toyota GR Supra A90 and A91 (2019 onwards). Compatible with the B58 and B58TU engine platforms. Pair with Radium 20-0753 Port Injection Fuel Rail and 20-0761 Plumbing Kit for a complete system.

Important: This hanger accepts 39mm brushed and brushless pumps only. It is not compatible with 39/50 DCSS pumps (including Walbro F900002XX, DeatschWerks DW400, or Bosch BR540). An external fuel pressure regulator and low-micron downstream filter are required and must be sourced separately. External wiring for the additional pump is also not included.

Key Features

• Drop-in fitment — no fuel tank modifications required
• Entire OEM direct injection system retained undisturbed: factory pump, FPR, filters, collector basket, venturi jet pump, and level sensor
• Independent port injection pump circuit with dedicated 8AN feed and 6AN return ports
• Port injection feed port: 8AN ORB (3/4"-16) female thread with pre-installed low-profile 8AN male banjo fitting
• Port injection return port: 8AN ORB (3/4"-16) female thread with pre-installed low-profile 6AN male banjo fitting
• Direct injection feed port: SAE quick connect outlet replicating the OEM fuel hat connection
• Three-source starvation protection: OEM venturi jet pump, FPR return fuel, and one-way fill valve on the collector basket
• Venturi jet pump scavenges fuel from the passive side of the saddle tank
• Brushless pump compatible — provisions for 39mm brushless pump technology
• Anodised aluminium construction — lightweight and corrosion resistant
• High current electrical hardware: stainless steel studs, hermetically sealed connections, ETFE insulated wiring
• Non-conductive anodised aluminium acorn nuts prevent accidental short circuits
• Compatible with petrol, E85, methanol, and ethanol fuels
• Compatible pumps include: Walbro GSS342 255LPH (filter 14-0143 required, sold separately), AEM 50-1200 E85, Ti Automotive BKS1001 Brushless, ID BPC-1100 Brushless
• Exclusively distributed in Australia by Coore; stocked in Sydney for fast local delivery

Vehicle compatibility, available part numbers, and fitment notes are listed in the tabs above. Please confirm your vehicle's year, variant, and engine configuration before ordering.

Not sure if this hanger suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
