Radium Engineering FCST-X Fuel Cell Surge Tank
Choose options
The Radium Engineering FCST-X (Fuel Cell Surge Tank – 10 Years) represents a decade of continual development, combining proven design with new engineering advancements. Originally introduced in 2013, Radium’s FCST system quickly became the benchmark fuel solution for professional motorsport applications. The new FCST-X continues that legacy, offering simplified servicing, improved flow capacity, and full compatibility with a wide range of fuel pumps and fuels.
The FCST-X integrates both a lift pump and surge tank assembly inside the fuel cell to completely eliminate fuel starvation under high G-forces. A lift pump supplies fuel to the 2L surge tank, which can house up to three high-pressure EFI pumps. The return fuel from the regulator also flows into the surge tank, ensuring it remains full at all times. Three one-way fill valves automatically balance fuel between the main cell and the surge tank for constant delivery and reliability under race conditions.
The latest design features faster access to lift and surge pumps (only nine bolts total), an integrated service handle, increased surge volume, improved rollover protection, and support for up to four brushless pumps. All components are CNC-machined from anodised aluminium and sealed with FKM materials for long-term corrosion and chemical resistance. Installation requires a standard 6" × 10" 24-bolt top-mount flange with a minimum cell depth of 196 mm.
Key Features
- Completely integrated lift pump and surge tank assembly
- Eliminates fuel starvation during racing and cornering
- Fast lift and surge pump access with only nine bolts
- Integrated handle for easy fuel pump servicing
- Supports up to four brushless fuel pumps
- Compatible with Bosch BR540, DW400, Ti Automotive E5LM, and DW440 pumps
- Lightweight surge tank with increased volume and reduced leak points
- Full CNC aluminium construction with anodised corrosion-resistant finish
- Hermetically sealed high-current stainless electrical studs
- Optional fuel level switch and diagnostic LED failsafe port
- Fuel compatible with petrol, methanol, ethanol, and E85

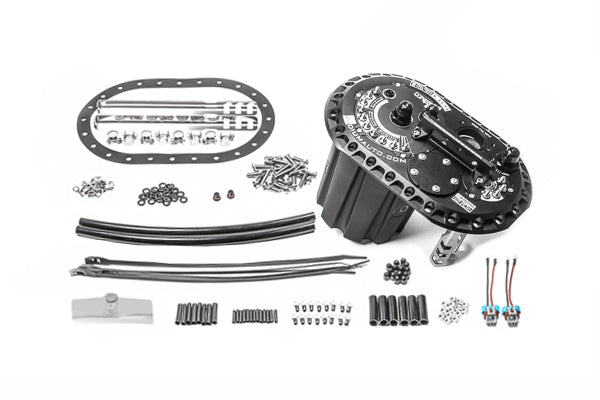

Contents
- Anodised aluminium 6" × 10" FCST-X plate
- Surge tank pump hat and lift pump hat
- Integrated service handle and level sensor plate
- Surge pump bracket and stainless lift pump mounts
- Lift and surge pump fuel filters
- 8AN roll-over vent valve and refuelling protection seal
- FKM 6" × 10" sealing gasket (24-hole)
- 10AN ORB to 8AN male pump-out fitting
- 8AN ORB to 6AN male return fitting
- 2AN ORB fuel level switch plug
- FKM one-way fill valves (×3)
- Anodised aluminium acorn nuts
- Electrical ring terminals and hardware
Vehicle Fitment
- Universal motorsport fuel systems using standard 6" × 10" 24-bolt fuel cell openings
Fuel cell must have a top-mounted 6" × 10" 24-bolt flange and a minimum depth of 7.7" (196 mm). Compatible with all major race fuel cell manufacturers.
