Radium Engineering 4-Port Manifold Universal

Radium Engineering 4-Port Manifold - Universal

Radium Engineering builds precision fuel system hardware trusted by tuners and race teams running serious power worldwide. CNC-machined from billet aluminium, anodized for durability, and compatible with E85, ethanol, methanol, and flex fuel — their components are built to motorsport tolerances without compromise.

This listing covers the Radium Engineering 4-Port Manifold Universal Kit (20-0062). Five configurations are available across different pump applications — refer to the kit selector below and ensure you order the correct part number for your setup.

Note: This is the universal kit (20-0062) only. Bosch 044, AEM 50-1005, and Deatschwerks DW 350iL pump-specific kits are separate part numbers — see the kit contents section below for details.

Specifications

• CNC-machined billet aluminium construction, fully anodized
• Two 6AN ORB ports (9/16-18 thread) and two 8AN ORB ports (3/4-16 thread)
• Overall length: approximately 114mm (4.5 in)
• Compatible with E85, ethanol, methanol, and flex fuel
• Suitable for fuel and coolant system plumbing with multiple pumps or fuel rails

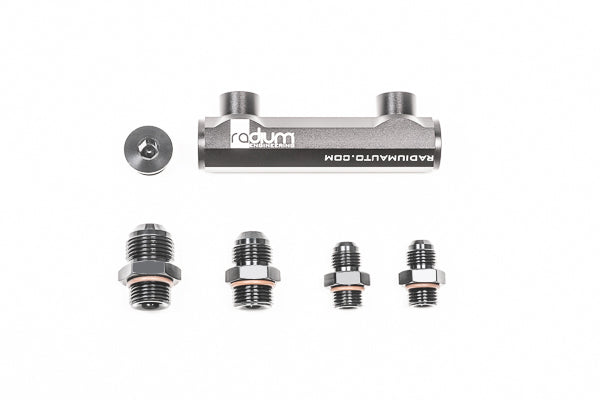

Kit Contents — Universal Kit (20-0062)

• 4-Port Manifold body
• 8AN ORB plug
• 8AN ORB to 8AN male adapter
• 8AN ORB to 10AN male adapter
• 6AN ORB to 6AN male adapters (x2)

Available Configurations

• 20-0062 — Universal Kit
• 20-0063 — Bosch 044 Kit (check valves eliminated, pumps cannot be staged)
• 20-0463 — Bosch 044 Kit (check valves retained, pumps can be staged)
• 20-0187 — AEM 50-1005 Pump Kit
• 20-0188 — Deatschwerks DW 350iL Pump Kit

Application suitability and configuration notes are provided in the tabs above. Confirm your pump type and plumbing requirements before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
