Radium Engineering Dry Carbon Fibre Fuel Cell Lid 10/14 Gallon

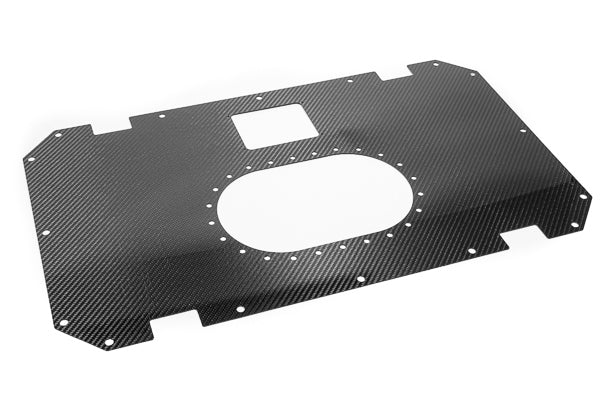

Radium Engineering Dry Carbon Fibre Fuel Cell Lid - 10/14 Gallon

Radium Engineering builds fuel system components trusted by tuners and race teams worldwide, and this dry carbon fibre lid is a prime example of that motorsport-focused engineering. Designed as a premium upgrade for the Radium RA-Series fuel cell, it replaces the standard powdercoated aluminium lid with a significantly lighter alternative — 68% lighter, to be exact — making it a straightforward win for any weight-sensitive circuit or endurance build.

This listing covers the dry carbon fibre lid for the Radium Engineering 10-gallon RA-Series and 14-gallon RA-Series fuel cells (part number 13-0410-01). The discontinued 15-gallon RA-Series fuel cell is also compatible with this part number.

Important: This lid is only compatible with RA-Series fuel cells — it cannot be exchanged for the standard aluminium lid. If ordered alongside a fuel cell, this lid ships in a separate box and requires end-user installation. Do not overtighten the mounting bolts as excessive torque can crack the carbon fibre resin and will not be covered under warranty.

Key Features

• Direct replacement for the standard powdercoated aluminium RA-Series lid — no cutting or fabrication required
• 68% lighter than the standard aluminium lid
• Manufactured from pre-impregnated 3K filament, 2x2 twill weave dry carbon fibre
• Same construction standard used in high-end motorsport bodywork and structural components
• Compatible with 10-gallon, 14-gallon, and discontinued 15-gallon RA-Series fuel cells
• Manufactured in the USA to motorsport-grade tolerances
• Hardware installed using a 4mm (5/32 in) Allen key and 7/16 in wrench for perimeter flange nuts
• Inspection plate secured with Phillips head screws — use a micro screwdriver

Compatibility details and fitment notes are provided in the tabs above. Please confirm your fuel cell model and capacity before ordering.

Not sure if this lid suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
