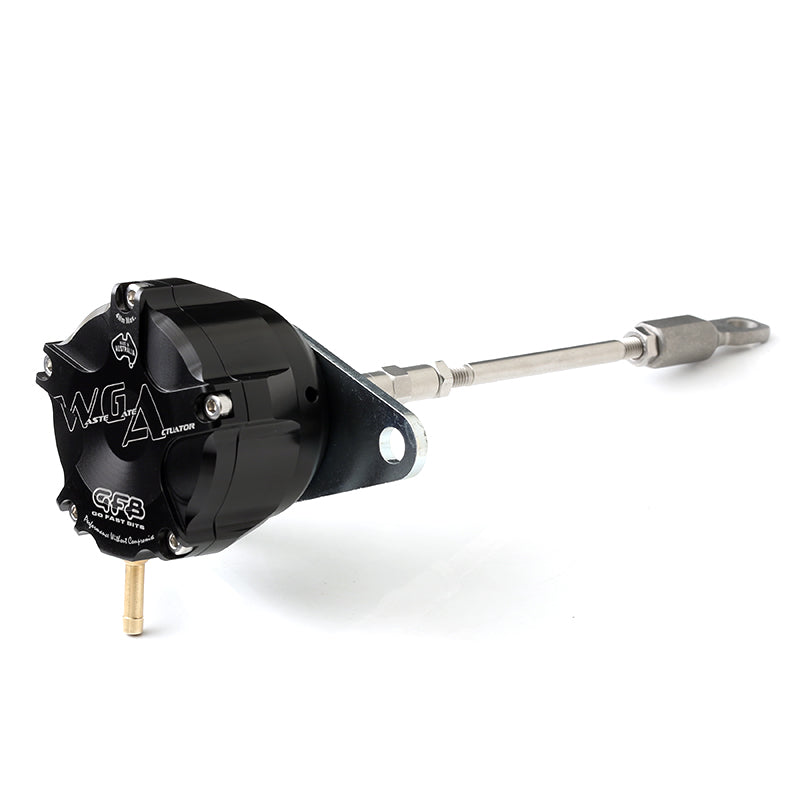

GFB WGA Internal Wastegate Actuator - Mitsubishi Evo X (CZ4A)
GFB has built a reputation for turbo boost control components that punch well above their size, and the WGA internal wastegate actuator is no exception. Designed to replace the restrictive factory actuator, it gives your Mitsubishi Evo X sharper throttle response and a far more stable boost curve, without the bulk of a typical aftermarket unit.
This listing covers the Mitsubishi Evo X (CZ4A), 2007 to 2015, fitted with the factory turbocharger. SKU 7303 is a direct bolt-on replacement designed specifically for this platform.
Important: This is a tuning component, not a straight bolt-on upgrade. Fitting the WGA will raise boost pressure above factory levels, so a professional retune is required afterwards.
Key Features
- Nomex-reinforced silicone diaphragm for maximum control authority in a compact housing
- 18mm (0.7 in) rod travel — longest stroke in its class for extra tuning range
- PEEK pivoting rod guide for low friction and long term wear resistance
- Turnbuckle adjustment for fine-tuning base boost without swapping springs
- Three stainless steel springs supplied, adjustable from 34-166kPa (5-24psi)
- Fitted with 69kPa and 48kPa (10psi and 7psi) springs for a base pressure of approximately 117kPa (17psi)
- Additional 34kPa (5psi) spring included for further tuning options
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your Evo X's year and turbo configuration before ordering.
Not sure if this actuator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Mitsubishi | Evo X | CZ4A | 4B11T |
Technical Specifications
| Spec | Value |
|---|---|
| Rod Travel (Stroke) | 18 mm |
| Diaphragm Material | Nomex-reinforced silicone |
| Rod Guide Material | PEEK (pivoting, encapsulated spherical design) |
| Springs Supplied | 3 x stainless steel springs (5 psi / 34 kPa, 7 psi / 48 kPa, 10 psi / 69 kPa) |
| Adjustable Pressure Range | 5–24 psi (34–166 kPa) |
| Factory Fitted Base Pressure (this application) | 17 psi (117 kPa) — 10 psi and 7 psi springs installed |
| Additional Spring Included | 5 psi (34 kPa) spring supplied loose for further tuning |
| Adjustment Method | Turnbuckle base pressure adjustment (no spring swap required) |
| Tuning Requirement | Tuning required — alters boost pressure |
No instructions available for this product.
