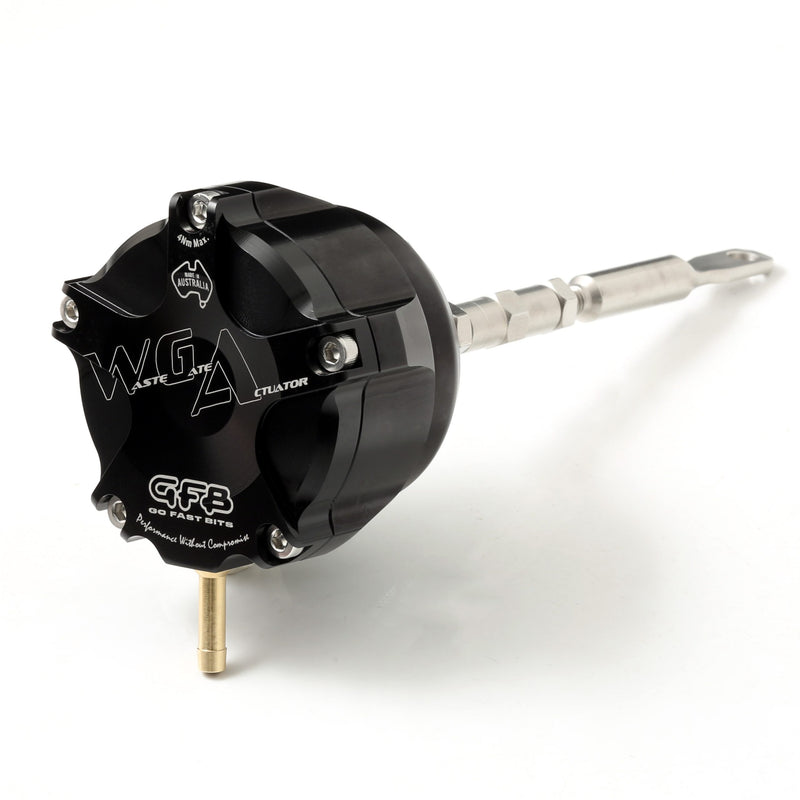

GFB WGA Internal Wastegate Actuator Ford Falcon XR6 Turbo/FPV F6 Turbo (BA/BF/FG)

GFB WGA Internal Wastegate Actuator - Ford Falcon XR6 Turbo/FPV F6 Turbo (BA/BF/FG)

GFB built the WGA to solve a problem every boosted Ford Falcon XR6 Turbo and FPV F6 Turbo owner eventually runs into — a factory actuator that just can't keep up once you start pushing boost. Using an industry first Nomex reinforced diaphragm and a PEEK pivoting rod guide, the WGA delivers more control authority over the wastegate flap in a shorter, more compact housing than anything else on the market.

This listing covers the Ford Falcon XR6 Turbo and FPV F6 Turbo across the BA, BF and FG chassis. Part number 7306 is a direct bolt on replacement for the factory internal wastegate actuator on these models.

Important: This is a tuning component, not a like for like replacement. Fitting the WGA will increase boost pressure over factory settings, so a professional retune is required after installation.

Key Features

• Nomex reinforced silicone diaphragm for maximum control authority in a compact housing
• PEEK pivoting rod guide for low friction and long term wear resistance
• 18mm rod travel — longest stroke in its class
• Turnbuckle adjustment for fine tuning boost without swapping springs
• Three stainless steel springs supplied, covering 5 psi to 22 psi in combination
• Fitted with 5 psi and 7 psi springs for a base pressure of 12 psi, plus a 10 psi spring included for further tuning
• Reduces boost taper at high RPM and improves boost stability and spool up

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's chassis code and turbo configuration are confirmed before ordering.

Not sure if this actuator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
