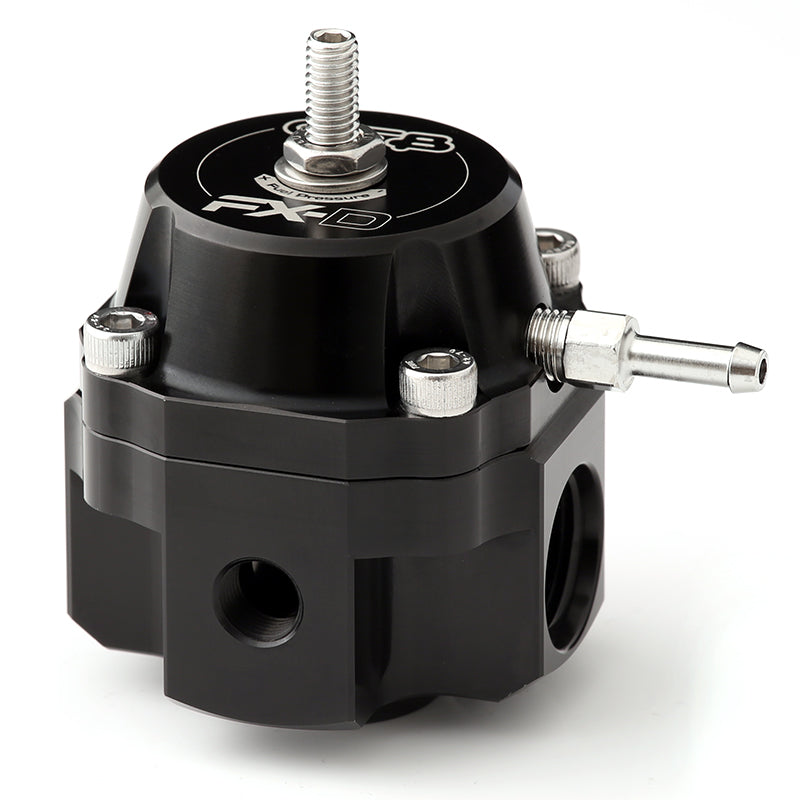

GFB FX-D 8AN Fuel Pressure Regulator - Universal
GFB brings its trademark obsession with sealing and reliability to the fuel side of the engine with the FX-D 8AN Fuel Pressure Regulator (SKU 8070). Built for high flow EFI setups running pump fuel, ethanol, methanol or diesel, it uses a replaceable Teflon co-polymer valve seat and spherical stainless valve to hold pressure long after shut down, giving factory like startup behaviour with serious aftermarket flow capacity.
This listing covers the standard 8AN configuration, suited to a wide range of single and multi pump fuel system builds. With dual -8AN inlet ports, a -8AN return, and twin 1/8" NPT gauge/sensor ports, it's flexible enough for parallel rail or deadhead returnless setups. No vehicle specific fitment applies as this is a universal fuel system component.
Key Features
- 2x -8AN inlet ports, 1x -8AN return port
- 2x 1/8" NPT ports for gauge and ECU sensor
- Flow rate of 1800 L/h at 172 kPa (25 psi)
- 1:1 fuel pressure rise ratio
- Static pressure adjustable from 172 to 552 kPa (25-80 psi)
- Double layer reinforced diaphragm, burst strength exceeding 3450 kPa (500 psi)
- O-ring sealed preload adjustment screw, no vacuum or boost leak
- Fully serviceable design
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your fuel system layout and port requirements before ordering.
Not sure if this suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
Universal fitment — verify dimensions before ordering.
Technical Specifications
| Spec | Value |
|---|---|
| Inlet Ports | 2x -8AN |
| Return Port | 1x -8AN |
| Pressure/Sensor Gauge Ports | 2x 1/8" NPT |
| Flow Rate | 1800 L/h @ 172 kPa (25 psi) |
| Fuel Pressure Rise Rate | 1:1 |
| Adjustable Static Pressure Range | 172–552 kPa (25–80 psi) |
| Diaphragm Construction | Double layer, double reinforced |
| Valve Seat Material | Teflon co-polymer seat with spherical stainless steel valve |
| Spring Pre-load Adjustment | O-ring sealed adjustment screw (no vacuum/boost leak) |
| Serviceable | Yes, fully serviceable |
