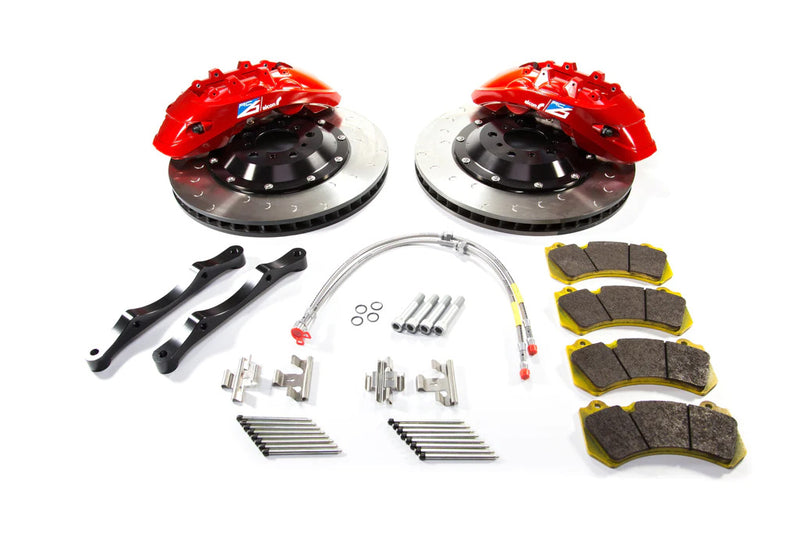

Alcon RC6 Front Big Brake Kit – BMW M2 / M3 / M4 (F80 / F82 / F87)
This Alcon RC6 big brake upgrade delivers serious stopping power for your BMW F8X platform. Built for performance driving, it features motorsport-grade components and a robust design that improves braking consistency, pedal feel, and heat management under demanding conditions. Supplied with Pagid RS29 brake pads for proven performance on both street and track.
Key Features and Benefits:
- High friction Pagid RS29 pads increase stopping power
- 396x34mm rotors offer improved heat capacity and reduced fade
- Increased pad area reduces temperatures and increases pad life
- Steel staggered pistons ensure even pad wear
- Stainless steel pistons for improved thermal resistance
- Pin-mounted pads for quicker and easier pad changes
Specifications:
- 2-piece forged aluminium caliper design
- High-temperature motorsport-grade seal material
- RC6 disc: 396mm diameter x 34mm width
- Pad area: 117.5cm²
- Requires 19" Wheel or larger
No instructions available for this product.
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
| Overview |
 CAR97 "MONO6" Full Specs |
 CAR70 "RC6" Full Specs |
 CAR99 Full Specs |
 CAR89 "TA6+" Full Specs |
 CAR89 Motorsport Full Specs |
 CAR89 "Billet" Full Specs |
CR6420 Full Specs |
|---|---|---|---|---|---|---|---|
| Category | Performance Street | Performance Street | Premium Street | Street / Track | Dedicated Track | GT / Touring Car | GT / Touring Car |
| Construction | Monobloc Cast | 2-Piece Forged | Monobloc Billet | Forged Aero | Billet Aero | Monobloc (1-Piece) | Billet Aero |
| Piston Sizing | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.0 / 31.8 / 38.1mm |
| Overview |
 CAR69 "RC4" Full Specs |
 CAR23 Full Specs |
 CRB343 Full Specs |
 CRB332 Full Specs |
|---|---|---|---|---|
| Category | Performance Street | Dedicated Track | Dedicated Track | Dedicated Track |
| Construction | 2-Piece Forged | Billet Monobloc | Radial Mount | Radial Mount |
| Piston Sizing | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm |
| Overview |
 CAR98 "MONO4" Full Specs |
CAR69 "RC4" Full Specs |
 CAR49 "TA4+" Full Specs |
|---|---|---|---|
| Category | Performance Street | Performance Street | Street / Track |
| Construction | Monobloc Cast | 2-Piece Forged | Forged Aero |
| Piston Sizing | 31.8 / 31.8mm | 31.8 / 31.8mm | 31.8 / 31.8mm |
| Overview |
 CRR300 Full Specs |
 CRR280 Full Specs |
|---|---|---|
| Category | Dedicated Track | Dedicated Track |
| Construction | Radial Monobloc | Radial Mount |
| Piston Sizing | 28.6 or 34.9mm | 2-Piston |
Caliper Name
Your subheading
Your title
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
CAR97 "MONO6"
Designed for high-performance street cars with a firm, consistent pedal feel.
CAR70 "RC6"
A versatile 6-piston caliper built for aggressive street driving and light track use.
CAR99
The pinnacle of Alcon's street range. Billet monobloc for maximum structural rigidity.
CAR89 "TA6+"
The ultimate dual-purpose weapon. Built specifically for Time Attack and heavy track sessions.
CAR89 Motorsport
Purpose-built for professional motorsport to deliver even pressure across massive pads.
CAR89 "Billet"
1-piece billet aerospace aluminium body offers massive strength and reduced weight.
CR6420
The definitive choice for endurance GT racing, accommodating ultra-thick 25mm pads.
CAR69 "RC4"
A forged 2-piece front caliper engineered for high-performance street applications.
CAR23
An ultra-lightweight billet monobloc front caliper designed for uncompromised motorsport use.
CRB343
A pure, track-focused front radial mount caliper with differential piston diameters.
CRB332
A dedicated motorsport radial mount front caliper providing incredibly stable brake bias.
CAR98 "MONO4"
A premium 4-piston rear caliper designed to perfectly complement Alcon front upgrades.
CAR69 "RC4"
Equipped with dust seals for long-term road use, ensuring balanced rear braking power.
CAR49 "TA4+"
The definitive rear caliper for dual-purpose track and street cars.
CRR300
A sub-1kg, ultra-compact rear caliper built exclusively for motorsport.
CRR280
A highly robust rear caliper tailored for Saloon and GT racing with fast-change pad wire.
