Paragon 6-Piston Front Big Brake Kit – Nissan 350Z (Z33)

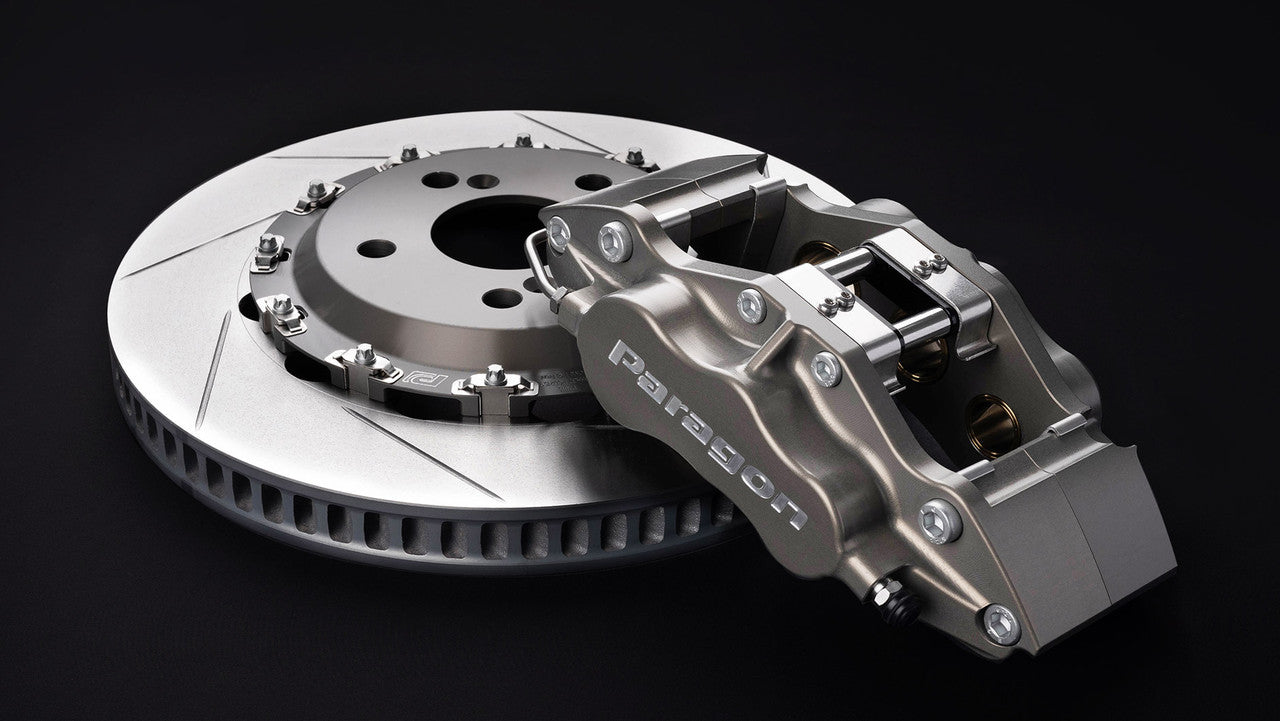

This complete, track-ready front big brake kit is designed for the Nissan 350Z (Z33), delivering a significant upgrade in braking power, cooling efficiency, and pedal consistency. Built around Paragon’s PA015 or PA035 6-piston calipers, this kit is engineered for both spirited street driving and hardcore track use. The only difference between the calipers is the maximum rotor size they are designed to support—providing flexibility based on your performance needs.

Key Features:

• Paragon PA015 / PA035 6-piston forged aluminium calipers
  Note: PA015 and PA035 differ only in the maximum rotor size supported
• Fully-floating 2-piece slotted rotors with directional curved ventilation vanes
• Up to 30% cooler operation compared to OEM rotors

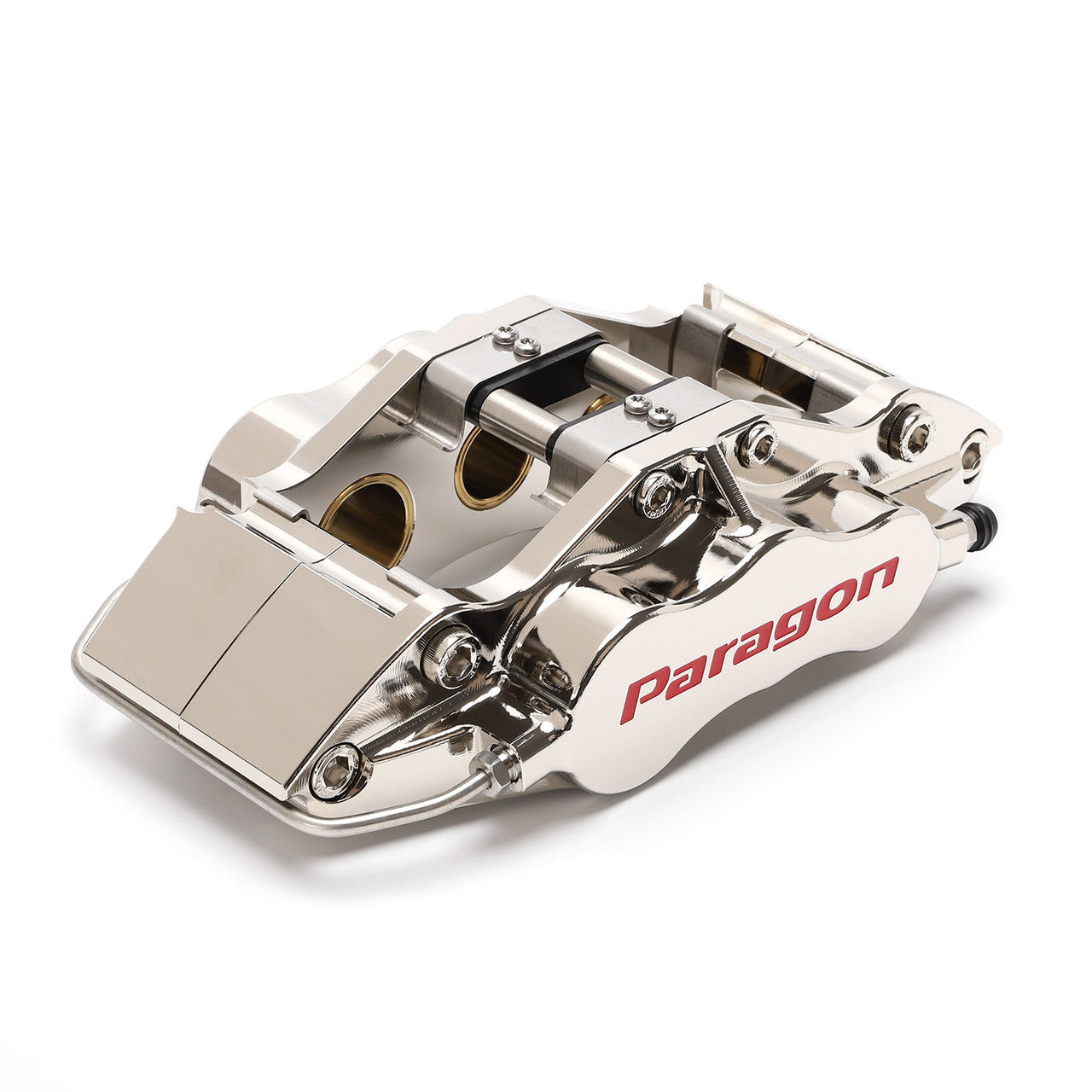

• Caliper finishes: hard-anodised or ENP electroless nickel plating
• Hard-anodised 6061-T6 aluminium rotor hats for enhanced heat and wear resistance
• Piston sizing optimised for 350Z chassis with full ABS/master cylinder compatibility
• Works seamlessly with OEM rear brakes
• Provides strong bite, modulation, and thermal stability under extended use
• Complete pre-assembled front axle kit – direct bolt-on installation

Construction Details:

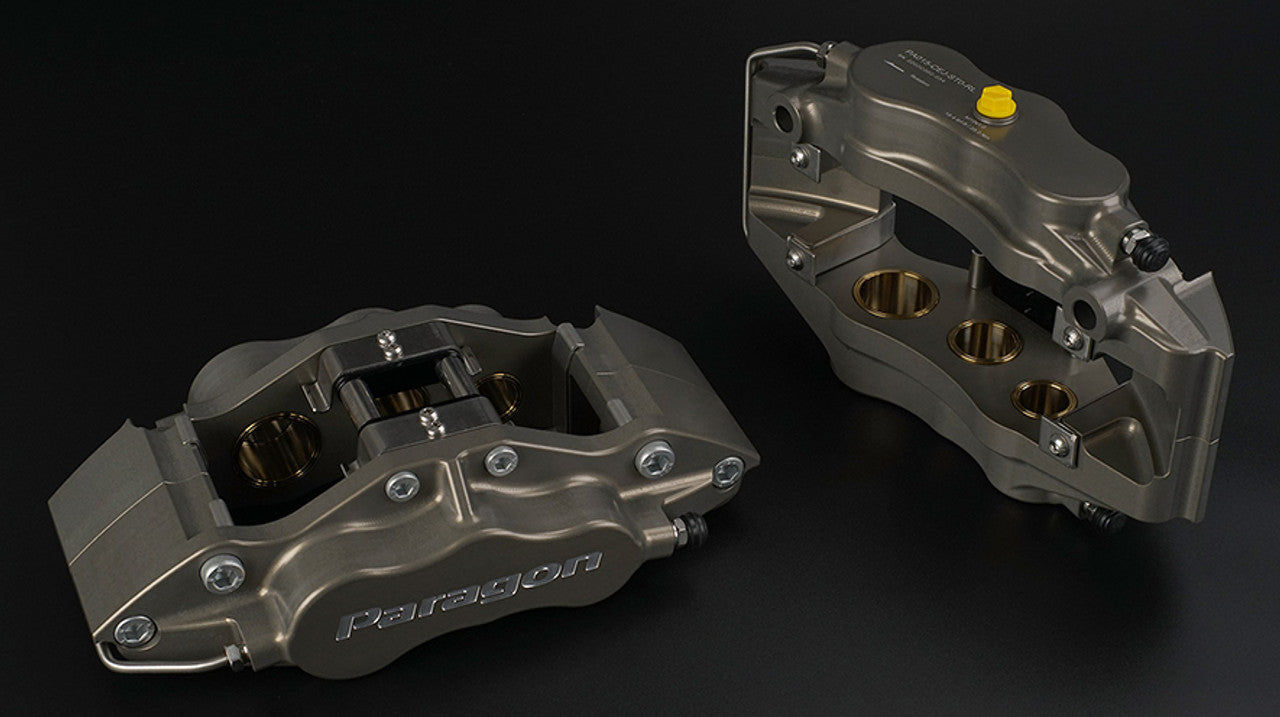

Calipers:

• Material: Forged 6061-T6 aluminium
• Pistons: Six, staggered for even pad wear
• Seals: High-temperature, motorsport-grade

Rotors:

• Material: CM-250 high-carbon alloy cast iron
• Design: 2-piece floating, slotted face with directional curved vanes
• Hats: 6061-T6 billet aluminium, hard-anodised

Vehicle Compatibility:

• Nissan 350Z (Z33) – 2003–2009

Fitment Notes:

• Direct bolt-on installation – no modifications required
• Compatible with OEM ABS, master cylinder, and rear brakes

Technical Specifications:
