Paragon 6-Piston Front Big Brake Kit – Mercedes-Benz CLA-Class (C117) / A-Class (W176) incl. AMG Models
Need it sooner? Contact us and we’ll see what we can do.
Choose options
Need it sooner? Contact us and we’ll see what we can do.
Need it sooner? Contact us and we’ll see what we can do.
This complete, track-ready front big brake kit is designed for the Mercedes-Benz CLA-Class (C117) and A-Class (W176), including AMG CLA45 and A45 AMG models. It delivers a serious upgrade in braking performance, thermal consistency, and pedal feel. Featuring Paragon’s PA015 or PA035 6-piston calipers and fully-floating 2-piece rotors, the system is engineered for high-performance street use and dedicated track driving. The difference between PA015 and PA035 calipers lies in their supported rotor sizes, providing flexibility for your performance setup.
Key Features:

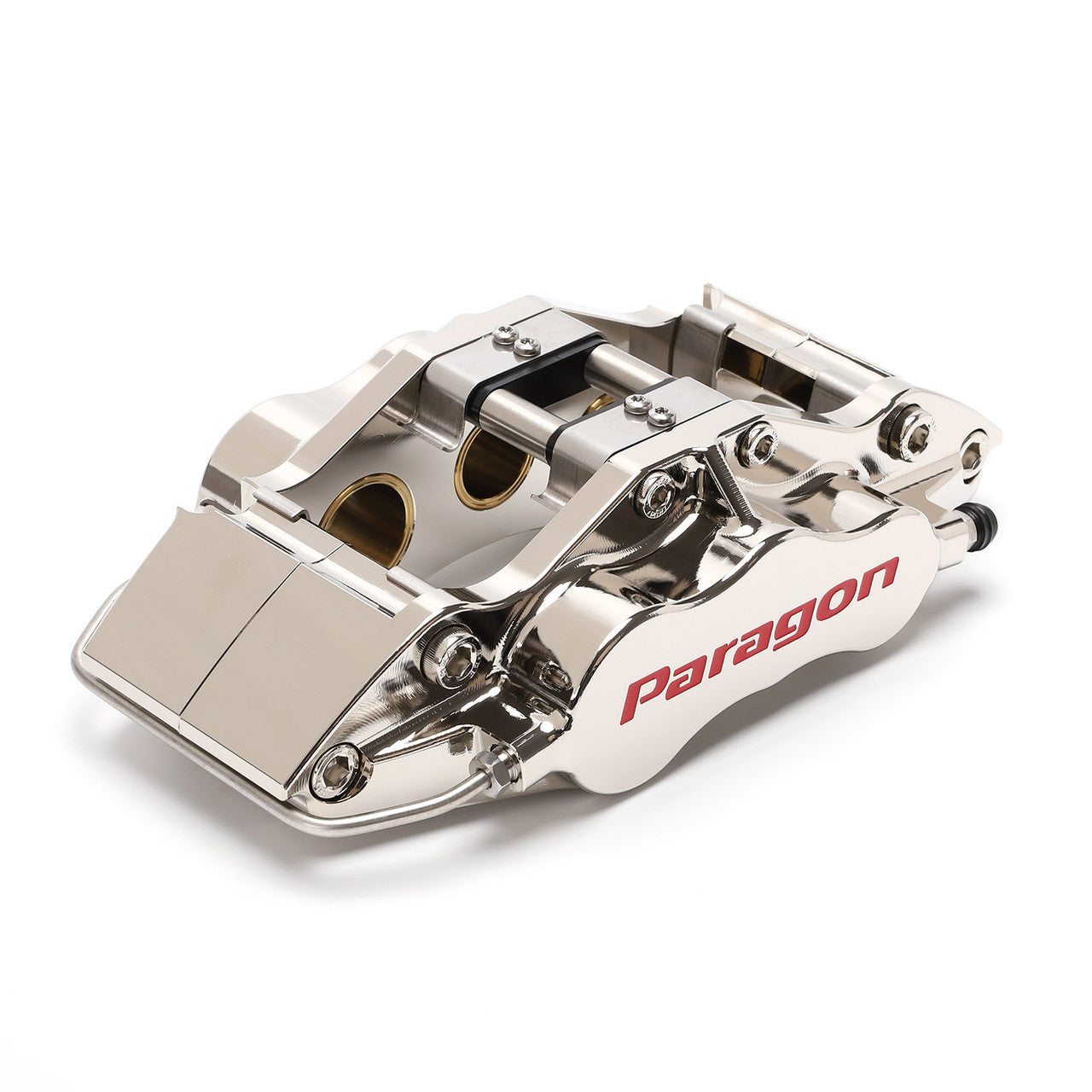

- Paragon PA015 / PA035 6-piston forged aluminium calipers
Note: PA015 and PA035 calipers differ only in the maximum rotor size supported - Fully-floating 2-piece slotted rotors with directional ventilation vanes
- Up to 30% cooler rotor operation compared to OEM
- Caliper finish options: hard-anodised or ENP electroless nickel plating
- Hard-anodised 6061-T6 aluminium rotor hats for improved resistance to heat, wear, and discolouration
- Piston sizes optimised for C117 / W176 platforms – fully compatible with OEM ABS and master cylinder
- Fully compatible with OEM rear braking systems
- Delivers strong initial bite, modulation, and thermal stability under repeated high-load use
- Complete pre-assembled front axle kit – direct bolt-on installation
Construction Details:
Calipers:
- Material: Forged 6061-T6 aluminium
- Piston sizes: 27mm / 31.8mm / 38.1mm
- Seals: High-temperature, motorsport-grade
Rotors:
- Material: CM-250 high-carbon alloy cast iron
- Design: 2-piece floating, slotted face with directional curved vanes
- Hats: 6061-T6 billet aluminium, hard-anodised
Vehicle Compatibility:
- Mercedes-Benz A-Class (W176) incl. AMG A45 – 2013–2018
- Mercedes-Benz CLA-Class (C117) incl. AMG CLA45 – 2013–2019
Fitment Notes:
- Direct bolt-on installation – no modifications required
- Fully compatible with OEM ABS, master cylinder, and rear braking system
Technical Specifications:
| Caliper Model | PA015 / PA035 6-Piston Forged Aluminium |
| Piston Sizes | 27 / 31.8 / 38.1mm |
| Rotor Design | 2-Piece Floating, Slotted, Directional Vanes |
| Cooling Performance | Up to 30% cooler than OEM |
| Caliper Finish | Hard-Anodised or ENP Nickel |
| Hat Material | 6061-T6 Aluminium, Hard-Anodised |
Browse the full Paragon collection for more performance upgrades.
Pad Shape
Contents
One pair of Paragon PA015 / PA035 6 piston calipers.
One pair of Paragon fully-floating 2-piece rotor assemblies with hard anodized 6061-T6 aerospace-grade aluminum hats, stainless steel bobbins, and anti-rattle clips.
One set of Paragon semi-metallic brake pads (manufactured by Winmax Japan, other compounds available at additional cost).
One pair of caliper mounting brackets and all necessary hardware.
One pair of Goodridge DOT approved stainless steel braided brake lines.
One set of caliper anti-rattle clips.
Included: Detailed installation manual.
