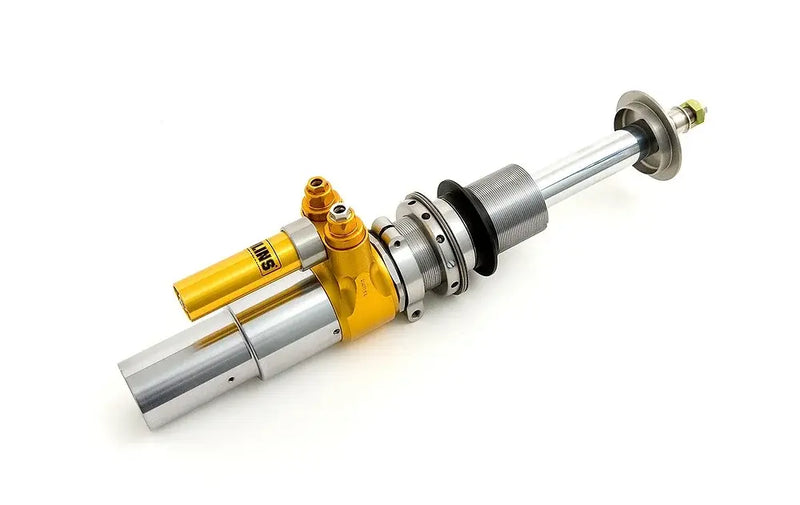

Ohlins TTX46MT MkII Motorsport Damper Universal External Reservoir 322/120

Ohlins TTX46MT MkII Motorsport Damper - Universal - External Reservoir 322/120

Öhlins built the TTX46 range for teams running GT, sports car, club racing and touring car programmes, and the TTX46MT MkII brings that twin tube racing technology to McPherson strut applications. SKU TTX-NU16 is the 4-way adjustable version with an external reservoir in the 322/120 length configuration, using a 46mm solid piston and a 30mm through rod for a rigid, lightweight strut that holds up to sustained track use.

This listing covers the TTX46MT MkII damper as a Universal fitment unit, suited to McPherson strut equipped race and time attack cars where a custom or fabricated mounting solution is used. Adjustment is available without removing the strut from the car, and the external reservoir with 322mm body length and 120mm stroke suits builds designed around this specific housing dimension.

Note: This damper is sold individually and does not include springs. Confirm your strut mounting, spring perch and reservoir bracket requirements before ordering, as this is a motorsport component intended for cars already set up to accept a McPherson strut damper of this configuration.

Specifications

• TTX technology, 46mm solid piston
• 30mm through rod shaft
• 4-way adjustable (TTX46MT)
• External reservoir, 322/120 configuration
• High strength aluminium alloy outer tube
• Upgraded seal head design to reduce friction and improve grip
• Positive pressure build up for consistent damping
• Optional high frequency piston available
• Can be upgraded with external blow-off valve (adjustable or non adjustable)
• Sold individually, sold without springs

Vehicle compatibility, mounting configuration, and fitment notes are provided in the tabs above. Please confirm your strut housing dimensions and mounting hardware are compatible with this damper before ordering.

Not sure if this damper suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
