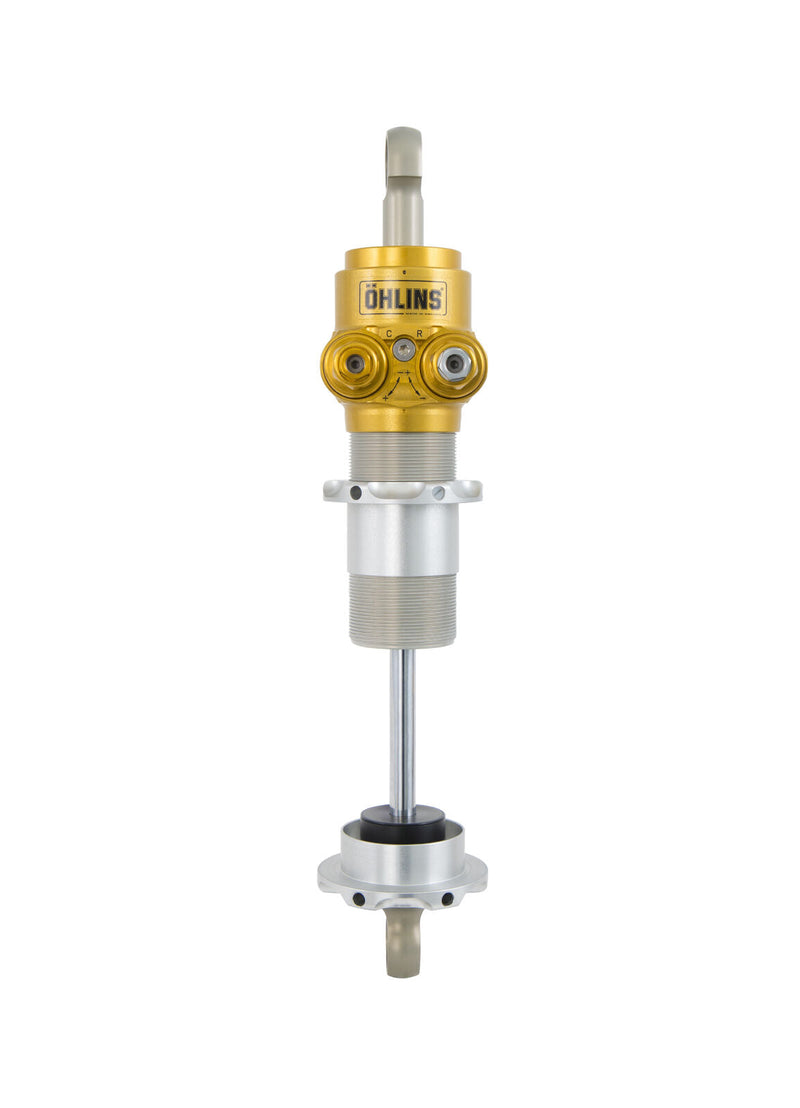

Ohlins TTX40 MkII Motorsport Damper External Reservoir Universal Single, No Spring

Ohlins TTX40 MkII Motorsport Damper External Reservoir - Universal - Single, No Spring

The Öhlins TTX40 MkII is a genuine top level racing damper, proven in Le Mans, Indy Car, touring car and GT competition. Its twin tube, through rod design is fully independent 4-way adjustable, giving race engineers precise control over compression and rebound without the compromises of a standard damper. This external reservoir version separates oil storage from the damper body, improving consistency under sustained track loads.

This listing covers the TTX40 MkII external reservoir damper, sold as a single unit in the 207.6/48 length configuration under SKU TTX-NH01. It is supplied without a spring and is designed for universal motorsport fitment rather than a specific chassis. Additional lengths, including 321.6/80, 390.6/100 and 480.6/130, are available through the variant selector on this listing.

Note: This damper is sold individually and without a spring. A second damper and matched springs will need to be ordered separately to complete a full corner or axle set.

Key Features

• TTX twin tube through rod technology
• 40 mm solid piston
• Fully independent 4-way adjustment (compression and rebound)
• External reservoir configuration
• Compatible with Öhlins Valve Reference Program for dyno-free damping curve development
• Available with internal and external blow-off piston kits to reduce peak loads over kerbs
• Upgradeable with high frequency piston
• Available in multiple lengths for different chassis and applications

Vehicle compatibility, mounting configuration and length selection notes are provided in the tabs above. As this is a universal motorsport component, please confirm the correct length and reservoir orientation for your application before ordering.
