Öhlins Road & Track Coilovers - Toyota GR Supra (A90) / BMW Z4 M40i (G29)
Öhlins has spent over 40 years building suspension for factory race teams, and that heritage sits at the core of the Road & Track series. Using Öhlins' proprietary Dual Flow Valve (DFV) technology, this kit gives the Toyota GR Supra and BMW Z4 M40i genuine track-bred damping control without turning the daily drive into a chore. SKU: TOS MU00S1.
This listing covers the Toyota GR Supra (A90) and BMW Z4 M40i (G29), including RWD and xDrive AWD variants, sharing the common A90/G29 platform. Front McPherson struts and rear conventional shocks are included, along with matched front and rear coil springs.
Note: vehicles fitted from the factory with electronic adjustable suspension require an Öhlins cancellation kit (Part No. 35020-30), sold separately.
Specifications
- Technology: DFV — Dual Flow Valve

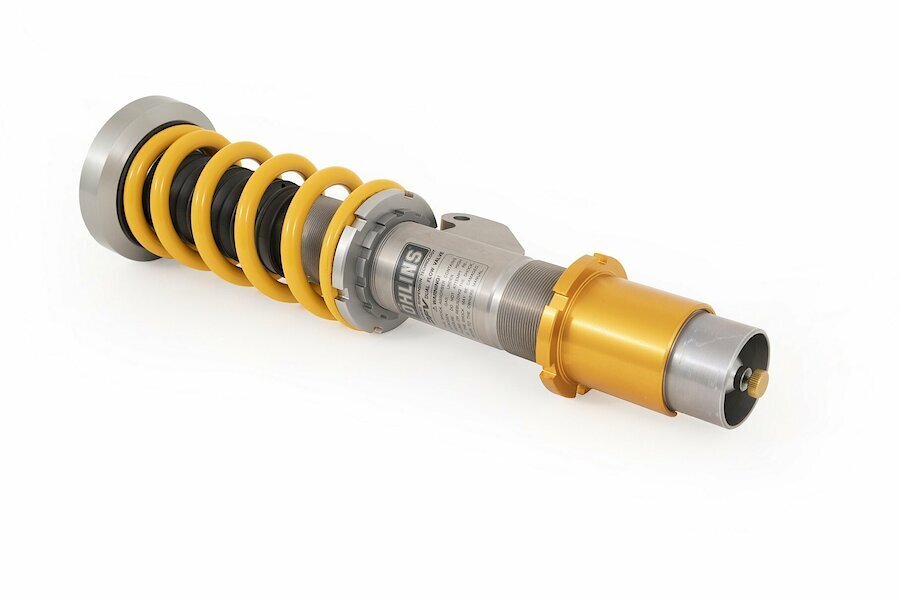

- Front damper: McPherson strut

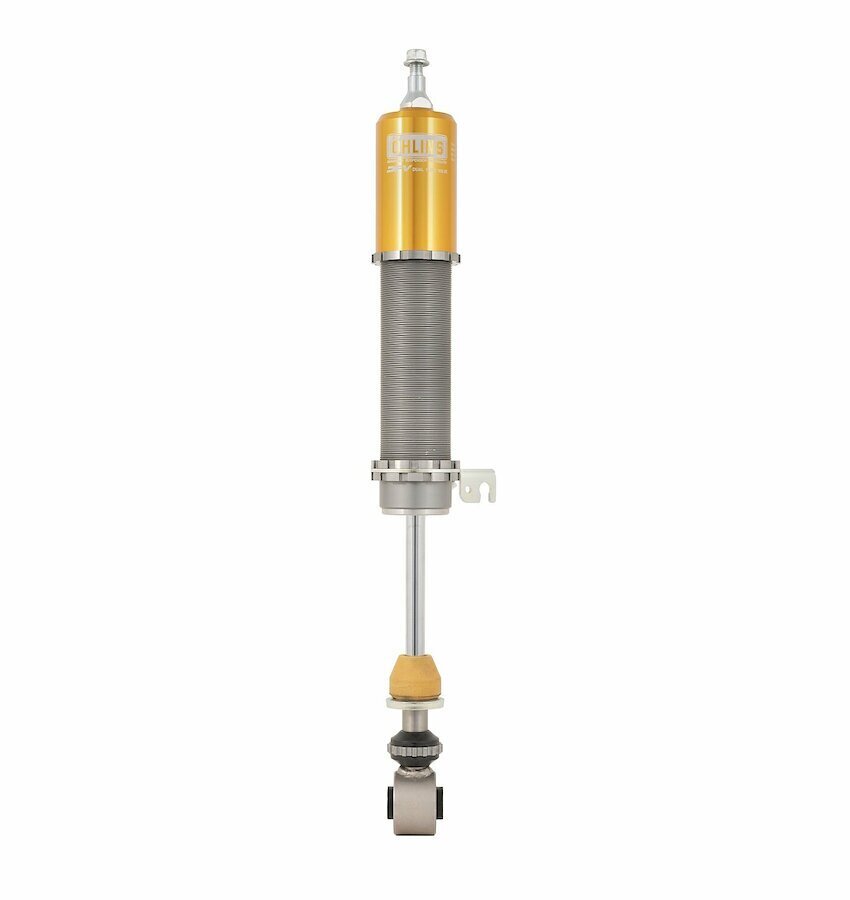

- Rear damper: Conventional shock absorber
- Damping adjustment: Single bleed adjuster, front and rear
- Front spring rate: 90 N/mm (Part No. 48010-27), included
- Rear spring rate: 160 N/mm (Part No. 48010-55), included
- Lowering range: approx. 20mm below standard, front and rear
- Top mounts: uses original top mounts
- Rebuildable, ISO 9227 salt spray tested
- Warranty: 2 year limited
Kit Contents

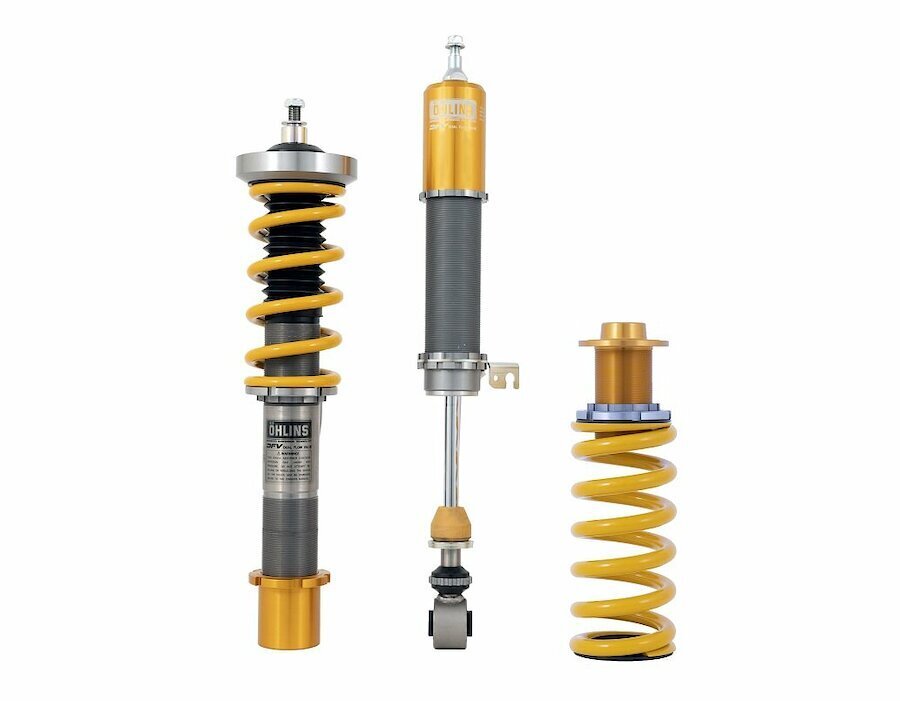

- Coilover damper kit (front and rear)
- Front coil springs — 90 N/mm
- Rear coil springs — 160 N/mm
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your vehicle's drivetrain configuration and whether it has electronic adjustable suspension before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Technical Specifications
| Spec | Value |
|---|---|
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 90 N/mm (Part No. 48010-27) — included |
| Rear Spring Rate | 160 N/mm (Part No. 48010-55) — included |
| Lowering Range | Approx. 20 mm below standard (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2 year limited warranty |
| Front Spring Part No. | 48010-27 |
| Rear Spring Part No. | 48010-55 |
| Cancellation Kit Part No. (for OE electronic adjustable suspension, sold separately) | 35020-30 |
| Kit Contents | Coilover damper kit, front coil springs (90 N/mm), rear coil springs (160 N/mm), C-spanner for spring preload adjustment, owner's manual and mounting instructions |
