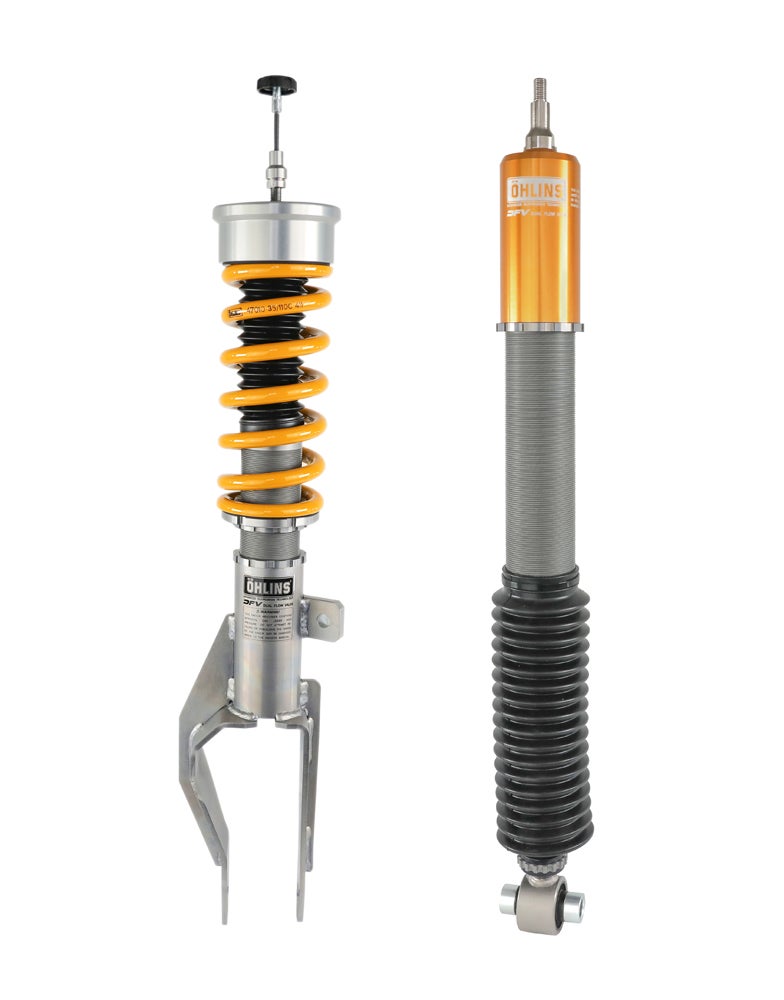

Öhlins R&T Coilovers – Tesla Model Y 20–22 / Model 3 17–22

Experience a true motorsport suspension upgrade for your Tesla Model 3 or Model Y. The Öhlins Road & Track Coilover Kit delivers exceptional grip, response, and confidence without compromising daily comfort. Drawing from over 40 years of racing expertise, Öhlins developed the DFV (Dual Flow Valve) system to perform on both the street and the circuit — in a single, adjustable package.

Why Choose Öhlins Road & Track
The Dual Flow Valve allows the suspension to react instantly to surface changes, maintaining control through bumps, kerbs, and elevation shifts. You’ll feel more stable and planted under braking, quicker in transitions, and smoother over imperfections — all while enjoying a supple ride on the road. This is the ultimate blend of track performance and street comfort for Tesla owners.

Key Features

• Dual Flow Valve (DFV) technology

• One-way adjustable damping (compression and rebound)

• Individual ride height adjustment

• Fully rebuildable design

• ISO 9227 corrosion-resistant tested

• 2-year worldwide warranty

Front Suspension Details

• McPherson strut configuration

• Spring rate: 110 N/mm (≈ 11.2 kg/mm)

• Ride height range: approx. 5–30mm lower than standard

• Preload and damping adjustment

• Compatible with original top mounts

Rear Suspension Details

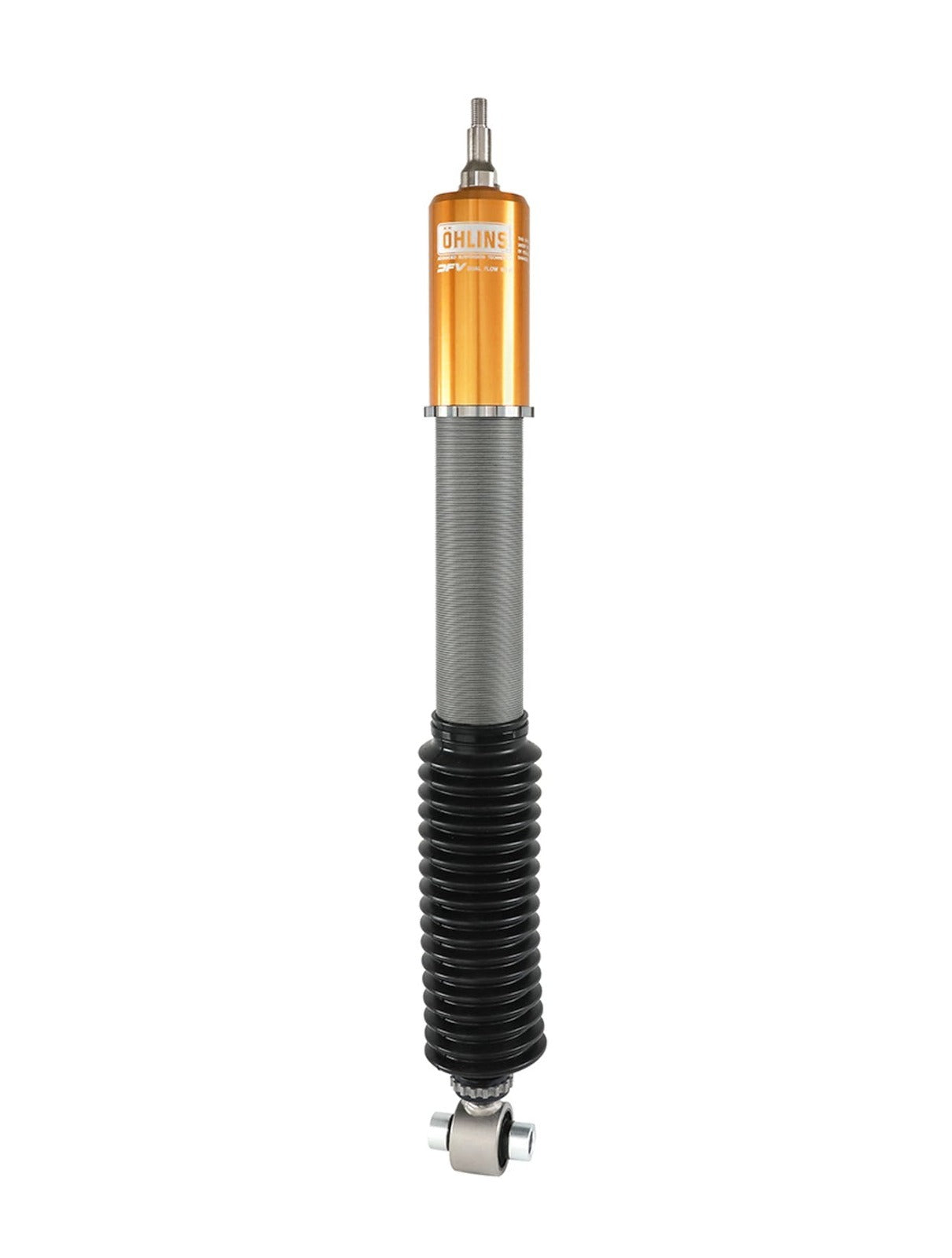

• Conventional damper layout

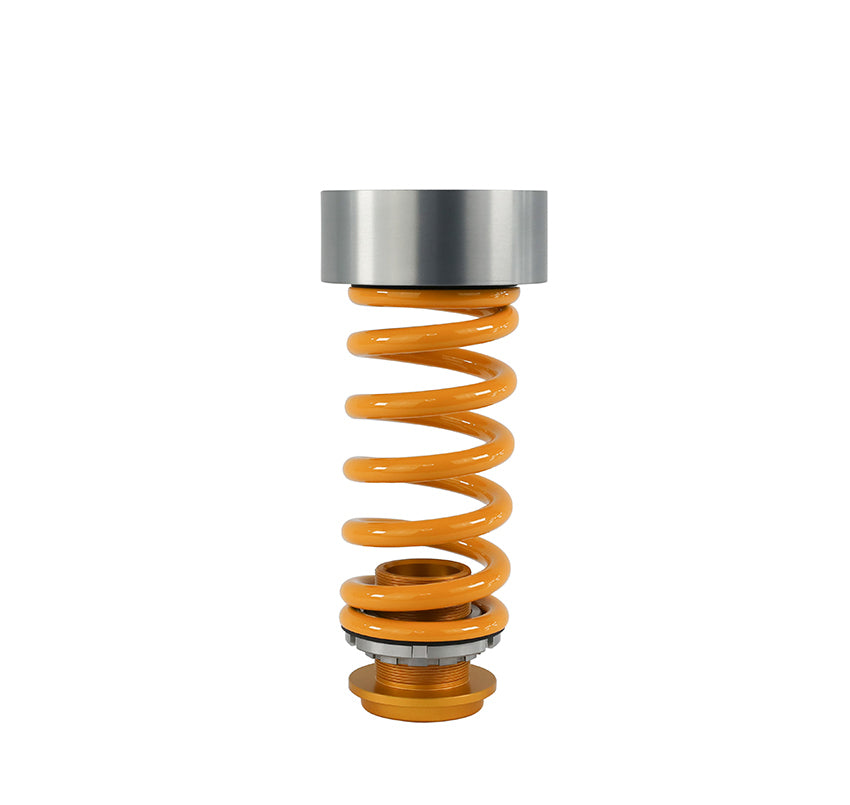

• Spring rate: 120 N/mm (≈ 12.2 kg/mm)

• Ride height range: approx. 5–30mm lower than standard

• Preload and damping adjustment

• Compatible with original top mounts

Kit Contents

• Coilover kit including springs and mounting hardware

• C-spanner (for spring preload adjustment)

• Owner’s manual and mounting instructions

• Öhlins sticker pack

Optional Upgrades

• Not specified for this fitment

Vehicle Fitment

• Tesla Model 3 (2017+, including Single and Dual Motor variants)

• Tesla Model Y (2020+, including Single and Dual Motor variants)
