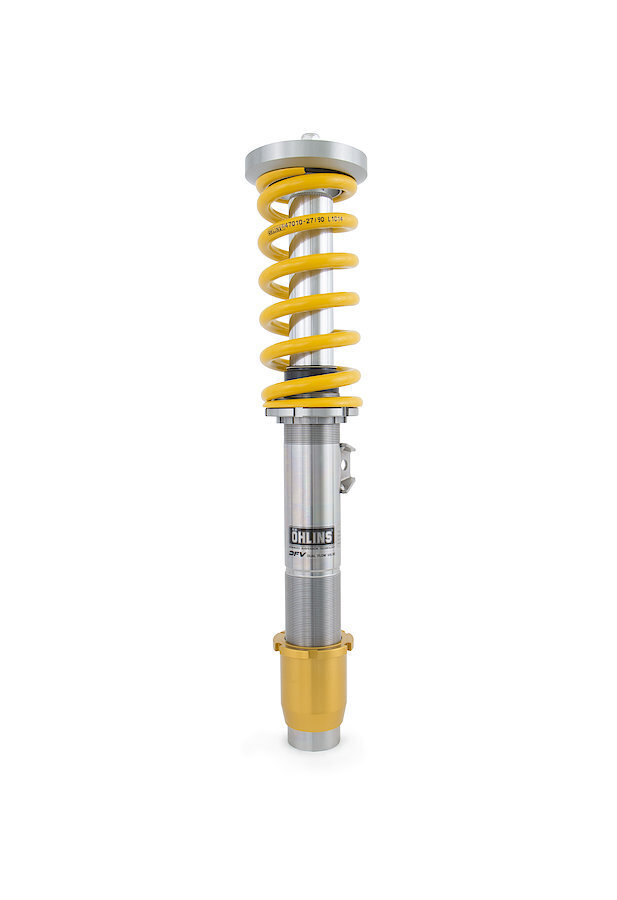

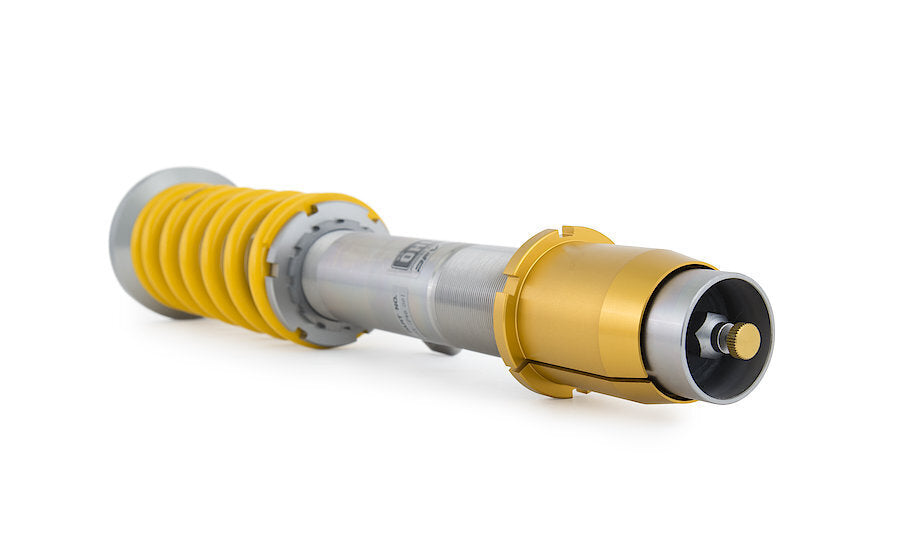

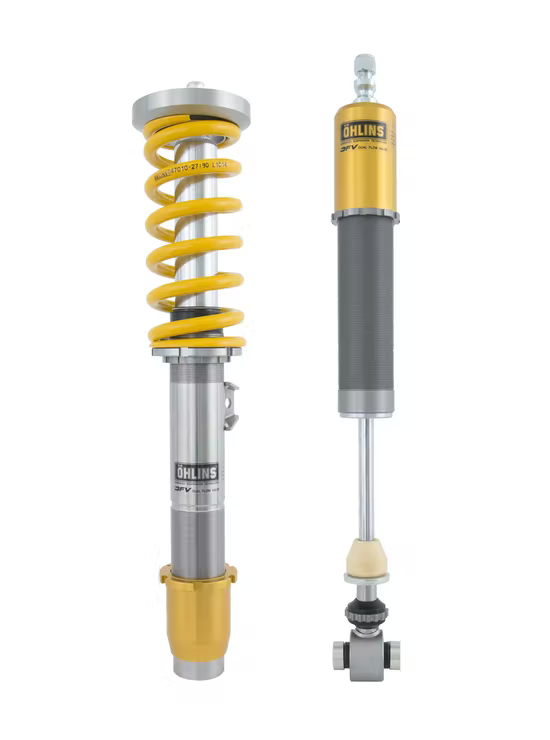

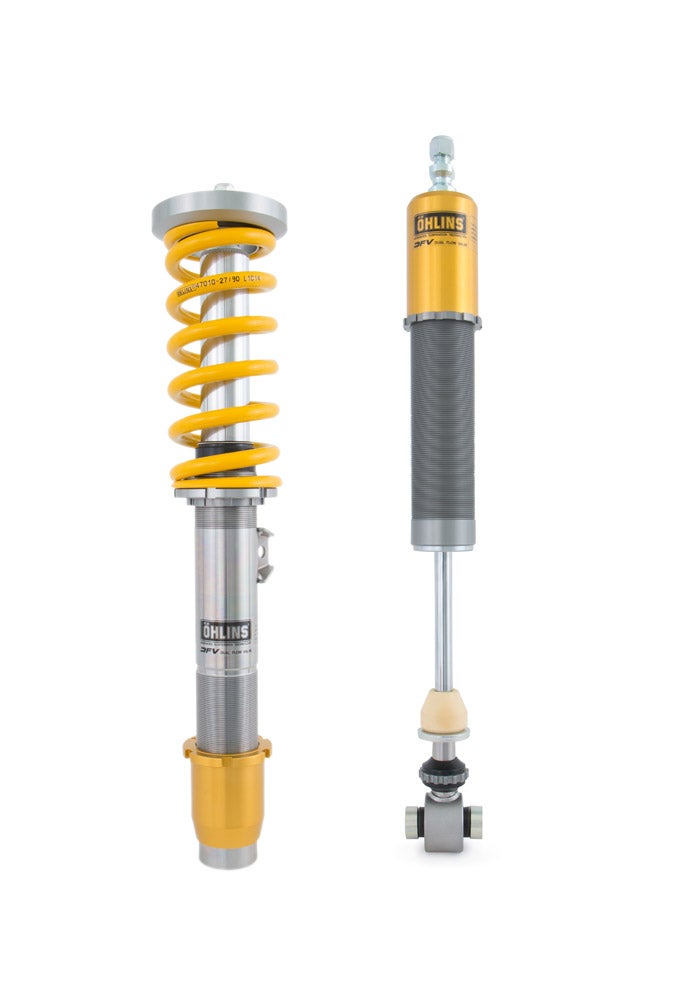

Öhlins Road & Track Coilovers - BMW M2 (F87) / M3 (F80) / M4 (F82/F83)
Built on over 40 years of motorsport engineering, the Öhlins Road & Track kit brings genuine race derived damping control to the BMW M2, M3 and M4. Öhlins' proprietary Dual Flow Valve (DFV) technology delivers consistent damping in both compression and rebound, keeping the tyre planted while still offering a supple, OEM like ride on the road.
This listing covers the BMW M2 (F87), M3 (F80) and M4 (F82/F83). Front and rear springs are included, and ride height is adjustable via a threaded lower flange without disturbing spring preload geometry.
Key Features

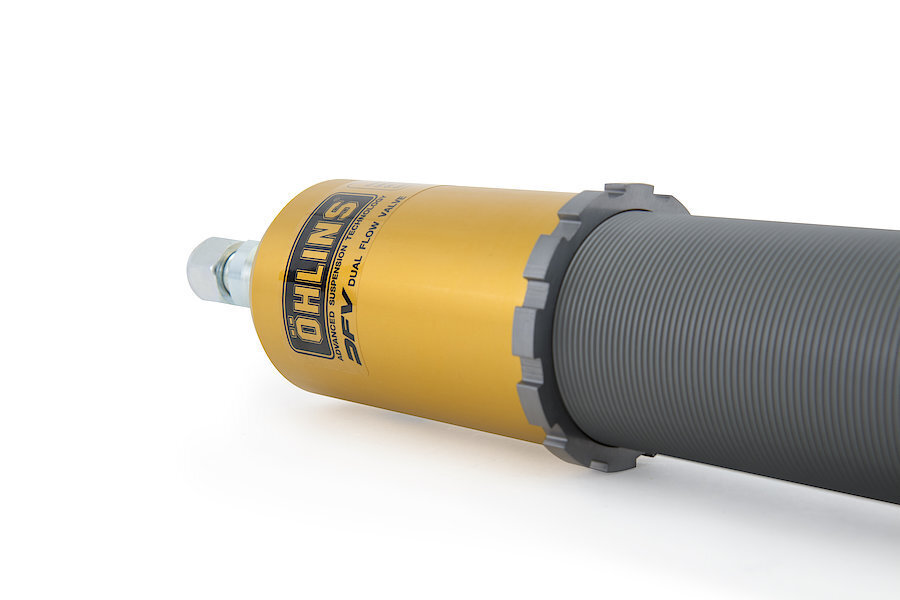

- DFV (Dual Flow Valve) damping technology
- Temperature compensated damping via needle bleed valve

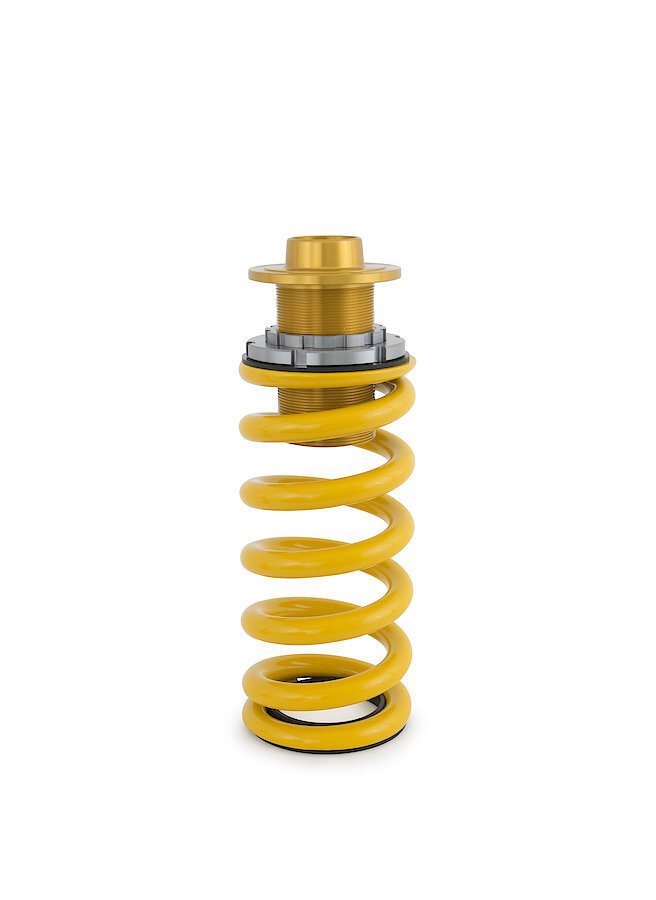

- Front: 90 N/mm springs (48010-27) included
- Rear: 190 N/mm springs (48010-67) included
- Approx. 10mm lowering front and rear
- Single bleed adjuster, front and rear
- Independent ride height and preload adjustment
- Rebuildable construction
- ISO 9227 salt spray corrosion tested
- 2 year worldwide limited warranty
- Uses original top mounts
- C-spanner, manual and Öhlins sticker set included
Vehicle compatibility, OEM part numbers and fitment notes are provided in the tabs above. Please confirm your model year and chassis configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Technical Specifications
| Spec | Value |
|---|---|
| Front Damper Type | McPherson strut |

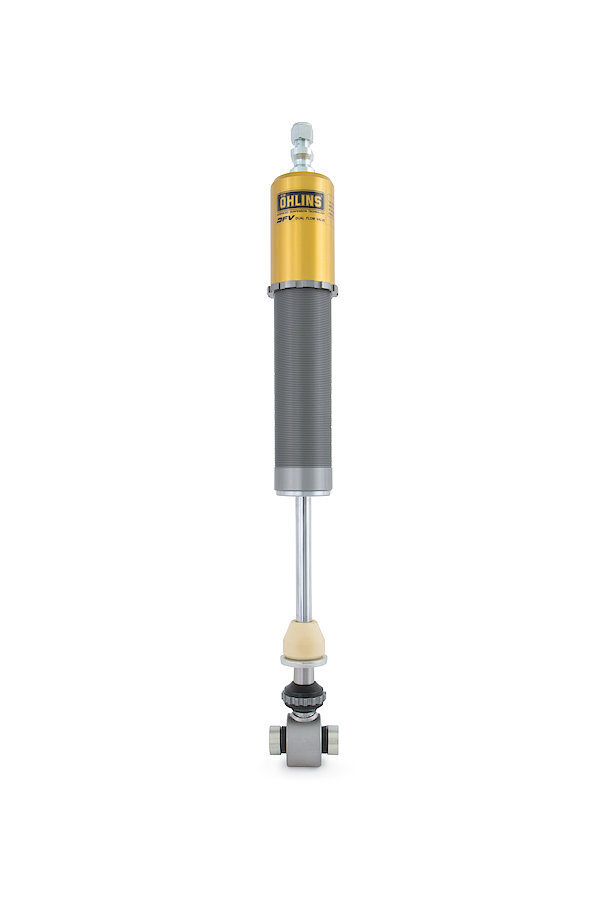

| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 90 N/mm (Part No. 48010-27) |
| Rear Spring Rate | 190 N/mm (Part No. 48010-67) |
| Front Lowering Range | Approx. 10mm below standard |
| Rear Lowering Range | Approx. 10mm below standard |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Temperature Compensated Damping | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
| Rebuildable | Yes |
No instructions available for this product.
