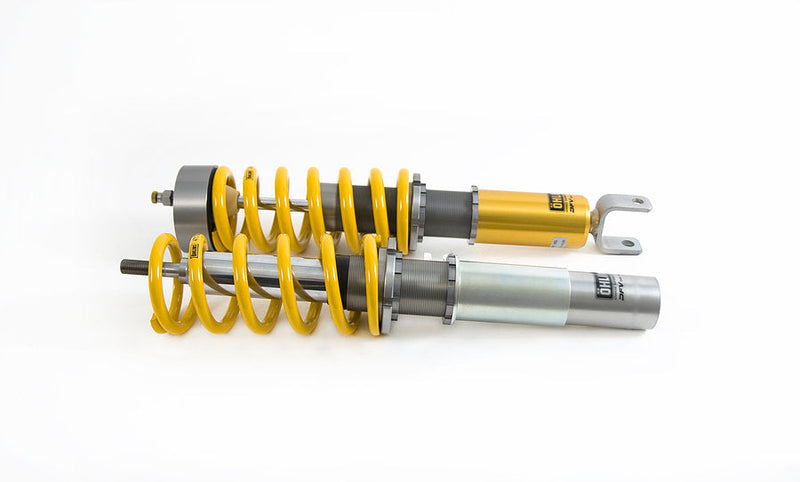

Ohlins Road & Track Coilover Suspension - Porsche 911 (996) GT2/GT3/GT3 RS
Öhlins brings over 40 years of racing derived suspension technology to the road with the Road & Track range, built around the brand's DFV (Dual Flow Valve) damping technology for a chassis that stays composed without turning your daily drive into a chore. For the Porsche 911 (996) GT2, GT3 and GT3 RS, this kit delivers sharper turn in and body control while keeping the ride liveable on Australian roads.
This listing covers the Porsche 911 (996) GT2, GT3 and GT3 RS models built 1999 to 2004. SKU POS-MI10S1 is the complete front and rear coilover kit for this chassis.
Key Features
- DFV (Dual Flow Valve) damping technology, front and rear
- Individually adjustable ride height, front and rear
- Rebuildable shock absorbers with adjustable spring preload
- Front: inverted McPherson strut, height adjustment range -15/+15 mm, 70 N/mm spring rate
- Rear: conventional shock, 140 N/mm spring rate
- Corrosion salt spray tested to ISO 9227
- 2 year worldwide limited warranty
- Uses original top mounts front and rear
Kit Contents
- Complete front and rear coilover kit with mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
Vehicle compatibility, OEM part numbers and fitment notes are provided in the tabs above. Please confirm your 996 GT2, GT3 or GT3 RS specification before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Porsche | 911 GT2 | 996 | - |
| Porsche | 911 GT3 | 996 | - |
| Porsche | 911 GT3 RS | 996 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Damping Technology | DFV (Dual Flow Valve) |
| Front Shock Absorber Type | McPherson strut, upside down |
| Front Damping Adjustment | Compression and rebound damping, single adjuster |
| Front Spring Preload | Adjustable |
| Front Ride Height Adjustment | Separate adjustment |
| Front Height Adjustment Range | -15/+15 mm |
| Front Recommended Ride Height Setup | Approx. 20 mm lower than standard |
| Front Spring Rate | 70 N/mm |
| Front Top Mounts | Use with original top mounts |
| Rear Shock Absorber Type | Conventional |
| Rear Damping Adjustment | Compression and rebound damping, single adjuster |
| Rear Spring Preload | Adjustable |
| Rear Ride Height Adjustment | Separate adjustment |
| Rear Recommended Ride Height Setup | Approx. 20 mm lower than standard |
| Rear Spring Rate | 140 N/mm |
| Rear Top Mounts | Use with original top mounts |
| Corrosion Testing | Salt-spray tested to ISO 9227 |
| Rebuildable | Yes |
| Kit Contents | Complete coilover kit with mounting parts, C-spanner for spring preload adjustment, owner's manual and mounting instructions, Öhlins sticker set |
| Optional Accessory | Adjuster extension package for BOSE sound system, Part No. G78055-01 (not included) |
