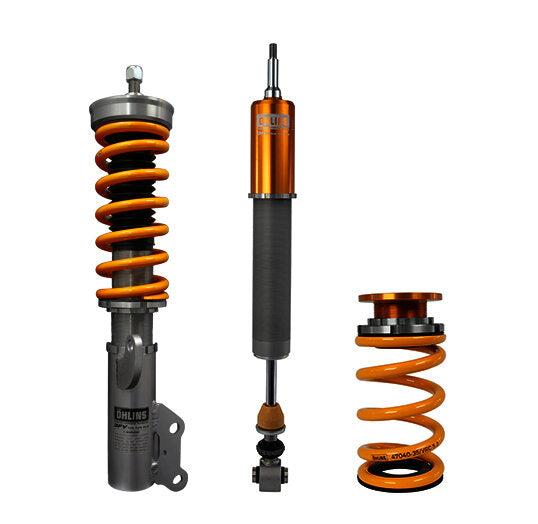

Öhlins Road & Track Coilovers - Mercedes-AMG A45 (W176)
Öhlins brings over 40 years of motorsport engineering to this street focused coilover kit for the Mercedes-AMG A45 (W176). Built around Öhlins' proprietary Dual Flow Valve (DFV) technology, the Road & Track series delivers genuine race car damping response while staying comfortable enough for daily driving.
This listing covers the Mercedes-AMG A45 built on the W176 chassis. Part number MES MV00S1 includes front and rear dampers with springs, C-spanner, mounting hardware and instructions ready to fit using the original top mounts.
Note: Vehicles fitted from the factory with electronically adjustable suspension require an Öhlins cancellation kit (part number 35020-34), sold separately, to run this coilover kit correctly.
Specifications
- Front damper type: McPherson strut
- Rear damper type: conventional shock absorber
- Front spring rate: 80 N/mm (included)
- Rear spring rate: 110 N/mm (included)
- Damping adjustment: single bleed adjuster, front and rear
- Ride height adjustment via threaded lower flange, spring seat position maintained
- Aluminium construction reduces suspension weight by 10 kg versus standard
- Corrosion tested to ISO 9227 salt spray standard
- Rebuildable construction for long term serviceability
- 2 year worldwide limited warranty
- Uses original top mounts, front and rear
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your A45's model year and OE suspension configuration before ordering, particularly whether a cancellation kit is required.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Mercedes-AMG | A45 | W176 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Vehicle Fitment | Mercedes-AMG A45 (W176) |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 80 N/mm (included) |
| Rear Spring Rate | 110 N/mm (included) |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Construction Material | Lightweight aluminium |
| Weight Reduction | -10 kg vs standard suspension |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2 year worldwide limited warranty |
| Rebuildable | Yes |
| Damping Technology | DFV (Dual Flow Valve) |
| Ride Height Adjustment | Threaded lower flange, individual adjustment |
| Preload Adjustment | Yes — via included C-spanner |
| Cancellation Kit Part No (if required) | 35020-34 — for OE electronically adjustable suspension |
| Kit Contents | Complete coilover kit with springs and mounting hardware, C-spanner, owner's manual, Öhlins sticker set |
