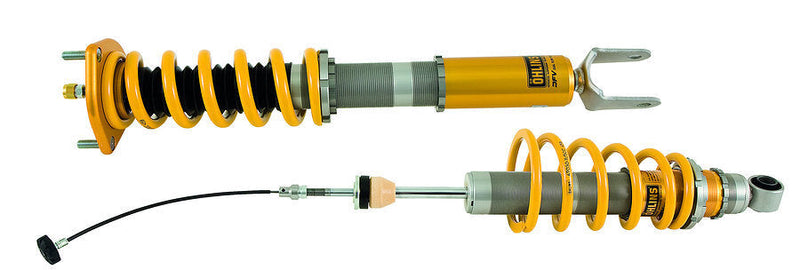

Öhlins Road & Track Coilovers - Mazda RX-8 (SE3P)
Öhlins brings over 40 years of motorsport engineering to this Road & Track coilover kit for the Mazda RX-8. Built around Öhlins' proprietary DFV (Dual Flow Valve) technology, it delivers race derived damping response while staying genuinely liveable as a daily driver, with a supple ride quality closer to an OEM strut than a typical aftermarket coilover.
This listing covers the Mazda RX-8 (SE3P), 2003–2011. The kit is a complete car set with conventional shocks front and rear, front and rear springs, and dustcovers all included, tuned around the RX-8's near 50:50 weight distribution.
Specifications
- Part number: MAS MI00S1
- Technology: DFV (Dual Flow Valve)
- Front/rear damper type: Conventional shock absorber
- Damping adjustment: Single bleed adjuster, front and rear
- Front spring rate: 80 N/mm (included)
- Rear spring rate: 50 N/mm (included)
- Lowering range: Approx. 15mm below standard, front and rear
- Dustcovers: Included, front and rear
- Rebuildable for custom tuning
- Corrosion tested to ISO 9227 salt spray standard
- Warranty: 2 year limited warranty
- Kit contents: springs, dustcovers, C-spanner, owner's manual, Öhlins sticker set
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's year and configuration are confirmed before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Mazda | RX-8 | SE3P | - |
Technical Specifications
| Spec | Value |
|---|---|
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | Conventional shock absorber |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 80 N/mm (included) |
| Rear Spring Rate | 50 N/mm (included) |
| Lowering Range | Approx. 15 mm below standard (front & rear) |
| Dustcovers | Included (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2 year limited warranty |
| Front Preload Adjustment | Spring preload adjuster |
| Rear Preload Adjustment | Spring preload adjuster |
| Kit Contents | Complete coilover kit with springs, mounting parts, dustcovers, C-spanner, owner's manual, Öhlins sticker set |
