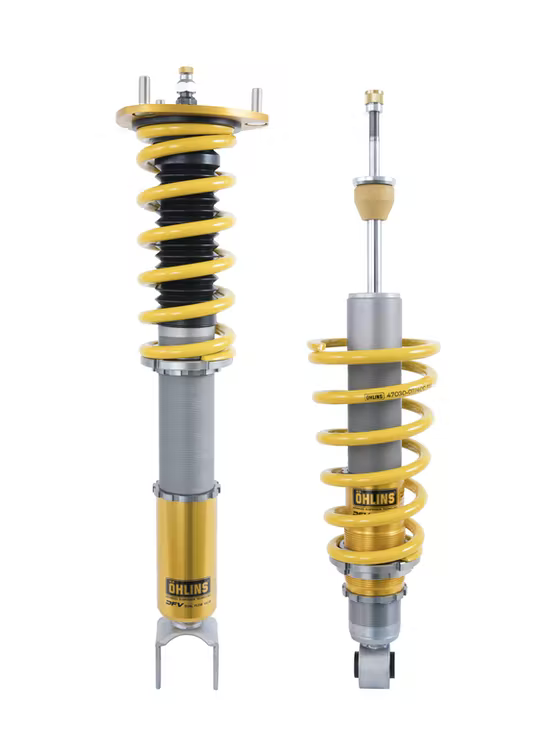

Öhlins Road & Track Coilovers - Mazda MX-5 (NCEC)
Öhlins brings over 40 years of motorsport engineering to the street with the Road & Track series, built around its proprietary Dual Flow Valve (DFV) technology. Designed for the Mazda MX-5, this kit delivers genuine race car response while staying comfortable enough for daily driving.
This listing covers the Mazda MX-5 (NCEC), built 2005-2014. Part number MAS MI30S1.
Specifications
- Front/rear spring rate: 70 N/mm / 40 N/mm
- Lowering range: approx. 10-40mm front and rear
- Combined compression and rebound damping, single adjuster
- Aluminium front top mounts included; rear uses original top mounts
- Threaded lower flange for ride height adjustment independent of spring preload
- Rebuildable construction, ISO 9227 salt spray tested
- 2 year worldwide limited warranty
- Includes springs, hardware, C-spanner and owner's manual
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your MX-5's year and configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Mazda | MX-5 | NCEC | - |
Technical Specifications
| Spec | Value |
|---|---|
| Front Damper Type | Conventional shock absorber |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 70 N/mm |
| Rear Spring Rate | 40 N/mm |
| Front Lowering Range | Approx. 10–40mm below standard |
| Rear Lowering Range | Approx. 10–40mm below standard |
| Damping Adjustment | Combined compression & rebound (single adjuster, front & rear) |
| Front Top Mounts | Aluminium top mounts included (non-adjustable) |
| Rear Top Mounts | Use with original top mounts |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2 year worldwide limited warranty |
| Rebuildable | Yes |
No instructions available for this product.
