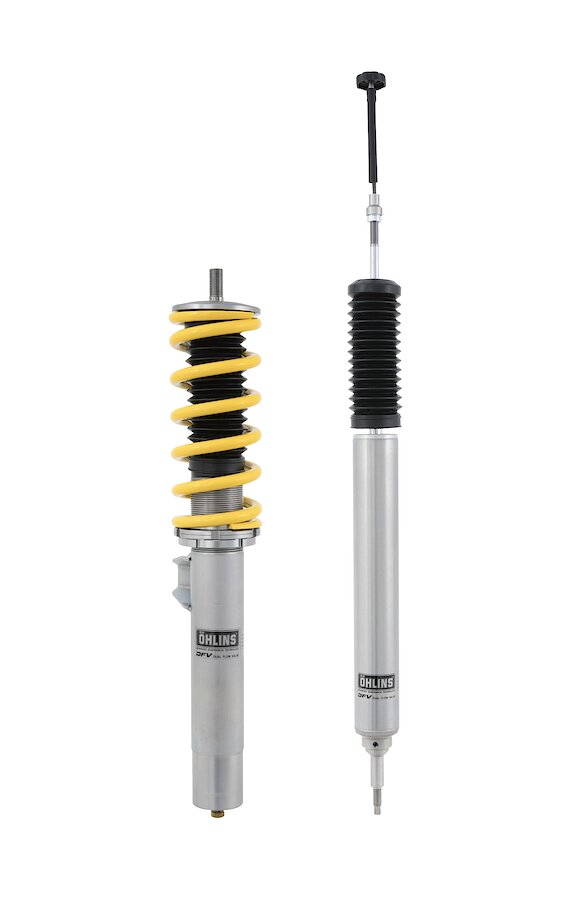

Öhlins Road & Track Coilovers BMW 1 Series (E81/E82/E87/E88) / 3 Series (E90/E91/E92/E93)

Öhlins Road & Track Coilovers - BMW 1 Series (E81/E82/E87/E88) / 3 Series (E90/E91/E92/E93)

Öhlins brings over 40 years of motorsport engineering to this street ready coilover kit for the BMW 1 Series and 3 Series. Built around Öhlins' proprietary Dual Flow Valve (DFV) technology, the Road & Track series delivers genuine race derived damping response while keeping the car comfortable enough for daily driving.

This listing covers the BMW 1 Series E81, E82, E87 and E88, along with the BMW 3 Series E90, E91, E92 and E93. The kit ships as SKU BMS MI01S1, complete with front and rear springs, mounting hardware and a C-spanner for preload adjustment.

Specifications

• Front damper: McPherson strut, single bleed adjuster
• Rear damper: conventional shock absorber, single bleed adjuster
• Front spring rate: 70 N/mm (Part No. 48000-19), included
• Rear spring rate: 120 N/mm (Part No. 48010-39), included
• Front lowering: approx. 10mm below standard
• Rear lowering: approx. 15mm below standard
• Ride height adjustment via threaded lower flange, spring seat position maintained
• Uses original top mounts, front and rear
• Rebuildable and fully serviceable construction
• Corrosion tested to ISO 9227 salt spray standard
• 2 year worldwide limited warranty

Kit Contents

• Complete front and rear coilover units with springs
• All mounting hardware
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's year, trim level, and configuration are confirmed before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
