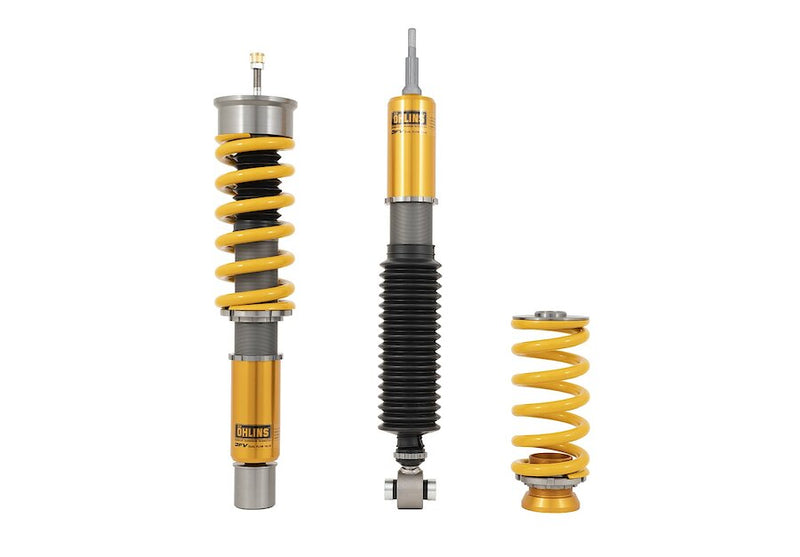

Öhlins Road & Track Coilovers - Audi A4/S4/RS4 (B9) / A5/S5/RS5 (F5)
Öhlins has spent over 40 years refining damper technology for factory race teams, and the Road & Track series brings that motorsport pedigree to the street. Built around Öhlins' proprietary Dual Flow Valve (DFV) technology, this kit delivers consistent damping on both compression and rebound, giving your Audi genuine track composure without sacrificing everyday comfort. SKU AUS MU00S1.
This listing covers the Audi A4, S4 and RS4 on the B9 chassis, along with the A5, S5 and RS5 on the F5 chassis. One coilover kit suits both platforms, with front and rear springs included.
Note: Vehicles fitted with OE electronically adjustable suspension require an Öhlins cancellation kit (Part No. 35020-31), sold separately.
Specifications
- Front & rear damper type: conventional shock absorber
- Front spring rate: 120 N/mm (included)
- Rear spring rate: 140 N/mm (included)
- Lowering range: approx. 20-35mm below standard, front & rear
- Damping adjustment: single bleed adjuster, front & rear
- Fits 48.5mm and 53mm front upright clamps
- Uses original top mounts, front & rear
- Rebuildable construction
- ISO 9227 salt spray corrosion tested
- 2-year worldwide limited warranty
Kit Contents
- Complete coilover kit with springs and mounting hardware
- C-spanner for preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your vehicle's model and trim before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Audi | A4 | - | |
| Audi | A5 | - | |
| Audi | RS4 | B9 (8W) | - |
| Audi | RS5 | F5 | - |
| Audi | S4 | B9 (8W) | - |
| Audi | S5 | F5 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Front Damper Type | Conventional shock absorber |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 120 N/mm (Part No. 48010-39) — included |
| Rear Spring Rate | 140 N/mm (Part No. 48000-47) — included |
| Front Lowering Range | Approx. 20–35 mm below standard |
| Rear Lowering Range | Approx. 20–35 mm below standard |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Upright Clamp Fitment | Fits 48.5 mm and 53 mm front upright clamps |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2 year worldwide limited warranty |
| Rebuildable | Yes |
| Cancellation Kit (Audi A4/S4/RS4 only, electronically adjustable OE suspension, sold separately) | Part No. 35020-31 |
