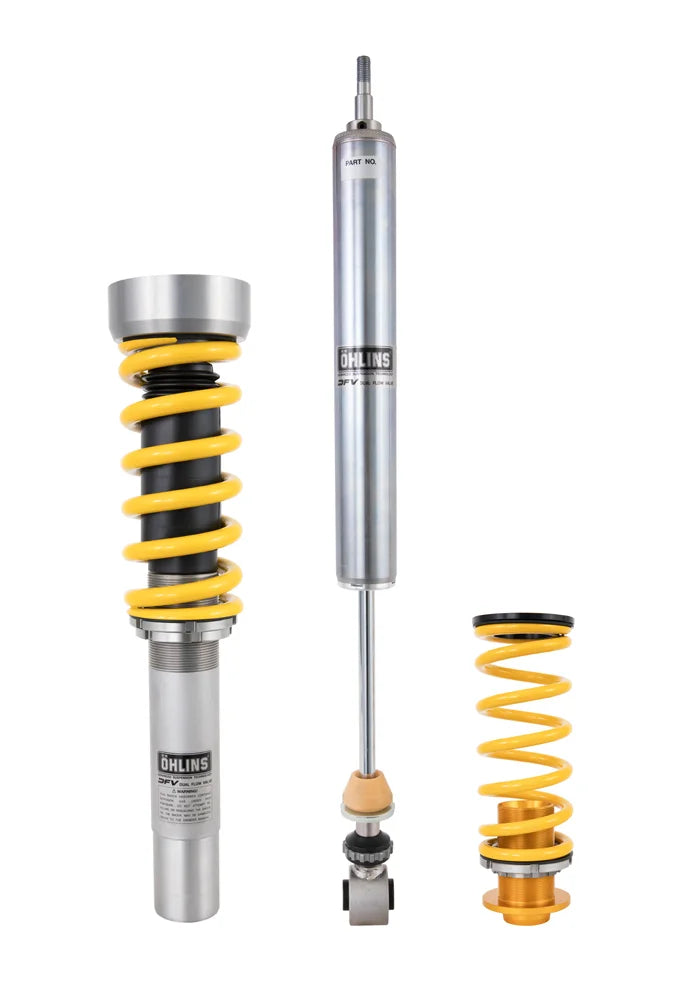

Öhlins Road & Track Coilovers - Audi A4/S4/RS4 (B8) A5/S5/RS5 (8T)
Öhlins brings over 40 years of motorsport engineering to this street focused coilover kit, built around the brand's proprietary Dual Flow Valve (DFV) technology for genuine race car response without sacrificing everyday comfort. The Öhlins Road & Track kit is designed specifically for the Audi A4, S4 and RS4 (B8) and A5, S5 and RS5 (8T) platforms, SKU AUS MS00S1.
This listing covers the Audi A4, S4 and RS4 (B8) chassis, along with the Audi A5, S5 and RS5 (8T) chassis. Springs and mounting hardware are included front and rear, with individual ride height adjustment via the threaded lower flange.
Note: vehicles fitted from the factory with electronically adjustable suspension require an Öhlins cancellation kit, sold separately.
Specifications
- Front damper: McPherson strut, single bleed adjuster
- Rear damper: conventional shock absorber, single bleed adjuster
- Front spring rate: 120 N/mm (included)
- Rear spring rate: 50 N/mm (included)
- Lowering range: approx. 15-20mm front and rear
- Uses original top mounts, front and rear
- Rebuildable construction, ISO 9227 corrosion tested
- 2 year worldwide limited warranty
- Includes C-spanner, owner's manual and Öhlins sticker set
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's year, trim level, and configuration are confirmed before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Audi | A4 | - | |
| Audi | A5 | - | |
| Audi | RS4 | B8 (8K) | - |
| Audi | RS5 | B8 (8T) | - |
| Audi | S4 | B8 (8K) | - |
| Audi | S5 | B8 (8T) | - |
Technical Specifications
| Spec | Value |
|---|---|
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 120 N/mm (Part No. 48000-39) — included |
| Rear Spring Rate | 50 N/mm (Part No. 48010-11) — included |
| Front Lowering Range | Approx. 15–20mm below standard |
| Rear Lowering Range | Approx. 15–20mm below standard |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2 year worldwide limited warranty |
| Rebuildable | Yes |
| Cancellation Kit — Audi A4/S4 | Part No. 35020-19 (sold separately) |
| Cancellation Kit — Audi RS4 | Part No. 35020-21 (sold separately) |
No instructions available for this product.
