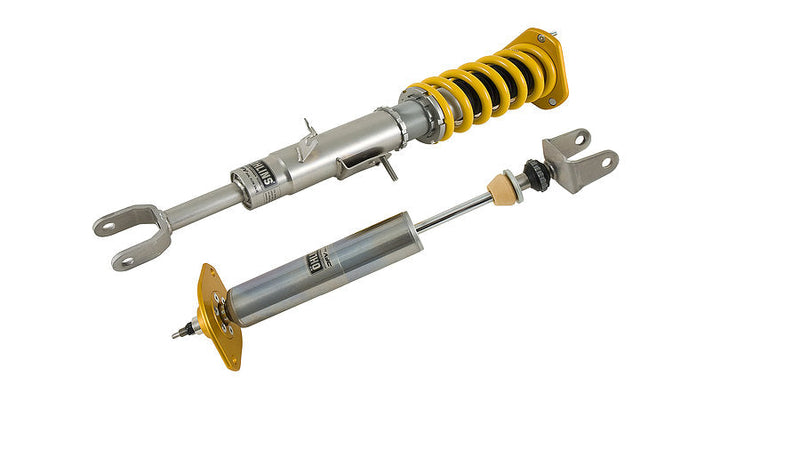

Öhlins Road & Track Coilover Suspension - Nissan 350Z (Z33)
Öhlins brings over 40 years of racing derived suspension development to this kit for the Nissan 350Z (Z33). Built around Öhlins DFV (Dual Flow Valve) technology, it delivers controlled, well damped handling without turning the Z33 into a car you dread driving every day. SKU NIS MI00S1.
This listing covers the Nissan 350Z (Z33), 2002–2008. Each shock is individually height adjustable and rebuildable, with corrosion protection tested to ISO 9227.
Specifications
- DFV (Dual Flow Valve) technology, front and rear
- Conventional shock absorbers with combined compression and rebound adjustment
- Adjustable spring preload, separate ride height adjustment
- Recommended setup approximately 20 mm lower than standard
- Front spring rate 100 N/mm, rear spring rate 70 N/mm
- Aluminium top mounts, not adjustable
- Includes mounting hardware, C-spanner, owner's manual and Öhlins sticker set
- 2 year limited worldwide warranty
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your 350Z's year and configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Nissan | 350Z | Z33 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Part Number | NIS MI00S1 |
| Damper Technology | DFV (Dual Flow Valve) |
| Front Shock Absorber Type | Conventional |
| Front Damping Adjustment | Compression and rebound damping, single adjuster |
| Front Spring Preload | Adjustable |
| Front Ride Height Adjustment | Separate adjustment |
| Front Recommended Setup | Approximately 20 mm lower than standard |
| Front Spring Rate | 100 N/mm |
| Front Top Mounts | Aluminium, not adjustable |
| Rear Shock Absorber Type | Conventional |
| Rear Damping Adjustment | Compression and rebound damping, single adjuster |
| Rear Spring Preload | Adjustable |
| Rear Ride Height Adjustment | Separate adjustment |
| Rear Recommended Setup | Approximately 20 mm lower than standard |
| Rear Spring Rate | 70 N/mm |
| Rear Top Mounts | Aluminium, not adjustable |
| Corrosion Testing | Salt-spray tested to ISO 9227 |
| Rebuildable | Yes |
| Warranty | 2-year limited warranty |
| Vehicle Fitment | Nissan 350Z (Z33), 2002–2008 |
| Package Contents | Complete coilover kit including mounting parts, C-spanner for spring preload adjustment, owner's manual and mounting instructions, Öhlins sticker set |
