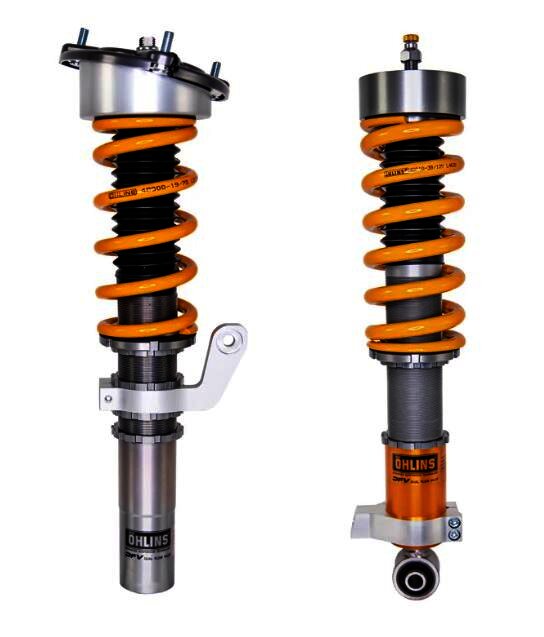

Öhlins Road & Track Coilover Kit - Porsche 911 Carrera 4/4S/Turbo/Turbo S (996)
Öhlins brings over 40 years of racing derived suspension engineering to the street with the Road & Track coilover range. Built around the brand's proprietary DFV (Dual Flow Valve) technology, this kit gives the Porsche 911 sharper, more linear damping response without sacrificing everyday comfort.
This listing covers the Porsche 911 Carrera 4 and Carrera 4S (996.1/996.2) along with the Turbo and Turbo S (996). SKU POZ MW00S1 is a complete kit suited to all model variants within this range.
Key Features
- DFV (Dual Flow Valve) technology for consistent damping across the full travel range
- Upside down McPherson strut front end with adjustable aluminium top mounts
- Conventional rear shock configuration using original top mounts
- Individual height adjusters front and rear, approx. 20mm lower than standard
- Front spring rate 70 N/mm, rear spring rate 120 N/mm
- Fully rebuildable for long term serviceability
- Corrosion salt spray tested to ISO 9227
- 2 year worldwide limited warranty
Kit Contents
- Complete coilover kit with all mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your 911's model variant and configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Porsche | 911 Carrera 4 | 996.1 | - |
| Porsche | 911 Carrera 4 | 996.2 | - |
| Porsche | 911 Carrera 4S | 996.2 | - |
| Porsche | 911 Turbo | 996 | - |
| Porsche | 911 Turbo S | 996 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Damping Technology | DFV (Dual Flow Valve) |
| Front Suspension Type | McPherson strut, upside-down design |
| Front Damping Adjustment | Compression and rebound damping, single adjuster |
| Front Spring Preload Adjustment | Yes |
| Front Ride Height Adjustment | Approx. 20 mm lower than standard (recommended setup) |
| Front Spring Rate | 70 N/mm |
| Front Top Mount | Adjustable aluminium |
| Rear Suspension Type | Conventional shock absorber |
| Rear Damping Adjustment | Compression and rebound damping, single adjuster |
| Rear Spring Preload Adjustment | Yes |
| Rear Ride Height Adjustment | Approx. 20 mm lower than standard (recommended setup) |
| Rear Spring Rate | 120 N/mm |
| Rear Top Mount | Original (OEM) top mounts |
| Corrosion Testing | Salt spray tested to ISO 9227 |
| Rebuildable | Yes |
| Warranty | 2 year worldwide limited warranty |
