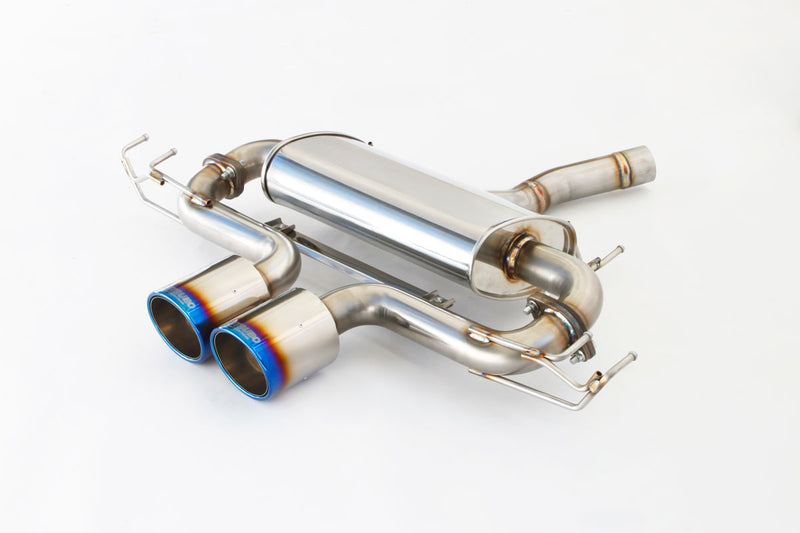

Fujitsubo A-S Axle-Back Exhaust System Honda Civic Type R (FL5)

Fujitsubo A-S Axle-Back Exhaust System - Honda Civic Type R (FL5)

Fujitsubo is one of Japan's most respected exhaust manufacturers, combining precision stainless steel fabrication with real-world performance data. The A-S series sits at the top of their catalogue — a street-oriented, high quality cat-back system built around tonal character and visual impact as much as outright performance. For the Honda Civic Type R (FL5), it delivers a genuine step up in power and torque while keeping daily drivability firmly in mind.

This listing covers the Fujitsubo A-S cat-back exhaust system for the Honda Civic Type R FL5 (chassis code 6BA-FL5, K20C engine, September 2022 onwards). The system ships with dual 118mm titanium finisher tips as standard. An optional carbon fibre 118mm finisher is available separately as an upgrade.

Important: This system requires cutting of the factory exhaust during installation. The OEM electronic exhaust valve is non-functional once this system is fitted — a valve canceller is included in the kit to address this. Installation is recommended for experienced fabricators or specialist workshops only.

Specifications

• Application: Honda Civic Type R FL5 (6BA-FL5) — K20C engine, September 2022 onwards
• Pipe diameter: 60.5mm
• Tailpipe style: 118mm round slash tip — Titanium FINISHER BG colour (dual)
• Construction: Full stainless steel (SUS) body and tips
• System weight: 8.5 kg (vs OEM 11.7 kg — a saving of 3.2 kg)
• Peak power gain: 230 kW (312.8 ps) at 6,451 rpm (vs OEM 214 kW / 291.0 ps at 6,144 rpm)
• Peak torque gain: 442 N·m (45.1 kg·m) at 3,376 rpm (vs OEM 418.5 N·m / 42.7 kg·m at 3,215 rpm)
• Mid-range acceleration (40–80 km/h, 2nd gear): 3.4 sec (vs OEM 3.5 sec)
• Idling noise: 66 dB
• Proximity exhaust noise: 90 dB (measured at 3,500 rpm per certification requirements)
• Minimum ground clearance: 116mm (roof height reference: 1,380mm)
• Certification: JQR10263027 K20Ct
• JAN code: 4944997353212
• SKU: 360-52121
• Optional upgrade: EXH+ Carbon Finisher 118mm (sold separately)

Kit Contents

• Fujitsubo A-S cat-back exhaust assembly
• Plate gaskets Φ58 × 2
• M10 × 35mm bolts × 4
• M10 nuts × 4
• M10 spring washers × 4
• Slit clamp fitting kit SLIT-C60.5 × 1
• M8 × 15mm bolts × 2
• M8 spring washers × 2
• M8 plate washers × 2
• M8 nuts (S45C) × 2
• Aluminium tape 50 × 50mm × 1
• Double-sided tape 80 × 40mm × 1
• Cable tie (medium) × 1
• OEM exhaust valve canceller × 1
• FL5 specific bracket (for A-S 360-52121) × 1
• TITANIUM FINISHER set Φ118 × 2 (109-01118)

Vehicle compatibility, fitment notes, and configuration details are provided in the tabs above. Please confirm your vehicle's build date and trim level before ordering.
