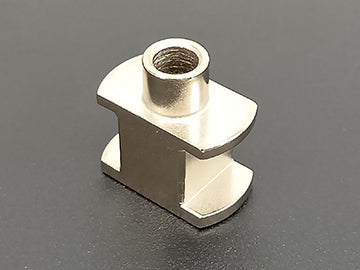

DIXCEL Bobbin (Type I) - 2 Piece Disc Rotor Replacement Hardware - Sold Each
Replace worn or damaged floating bobbins on your Dixcel 2-piece disc rotors with genuine Dixcel Type I bobbins. Bobbins are the floating drive hardware that connect the rotor disc ring to the aluminium centre hat, allowing the disc to expand and contract freely under heat for consistent braking performance and extended rotor life. This listing is for a single Type I bobbin, sold each.
This bobbin is the correct Type I replacement for the following Dixcel 2-piece disc rotor applications: Mitsubishi Lancer Evolution X (CZ4A) Brembo, Honda Civic Type R (FL5 front and FK8), Nissan R35 GT-R (MY07 380x34mm front, MY11 390x32.6mm front, and 380x30mm rear), and Subaru Impreza WRX STI RA-R / R205 / S206 and WRX STI S207 with the 6-piston Brembo front brake. Please confirm the bobbin type fitted to your existing Dixcel 2-piece rotor before ordering.
Key Features
- Genuine Dixcel Type I bobbin
- Replacement floating hardware for Dixcel 2-piece disc rotors
- Allows the disc ring to float relative to the centre hat
- Sold individually (each) — order the quantity required for your rotor
Rotor applications, bobbin counts and compatibility are provided in the tabs above. A complete 2-piece rotor uses multiple bobbins per disc, so please confirm the quantity required for your application before ordering.
Not sure how many bobbins your rotor requires? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Generation | Year | Notes |
|---|---|---|---|---|
| Honda | Civic Type R | FK8 | 2017 - 2021 | 2.0L K20C1 I4 Turbo / Dixcel 2-piece rotor application |
| Honda | Civic Type R | FL5 | 2022 - onwards | 2.0L K20C1 I4 Turbo / Front / Dixcel 2-piece rotor application |
| Mitsubishi | Lancer Evolution X | CZ4A | 2007 - 2016 | 2.0L 4B11T I4 Turbo / Brembo / Dixcel 2-piece rotor application |
| Nissan | GT-R (MY07) | R35 | 2007 - 2010 | 3.8L VR38DETT V6 Twin Turbo / 380x34mm Front / Dixcel 2-piece rotor |
| Nissan | GT-R (MY11) | R35 | 2011 - onwards | 3.8L VR38DETT V6 Twin Turbo / 390x32.6mm Front / Dixcel 2-piece rotor |
| Nissan | GT-R | R35 | 2007 - onwards | 3.8L VR38DETT V6 Twin Turbo / 380x30mm Rear / Dixcel 2-piece rotor |
| Subaru | Impreza WRX STI RA-R | GDB | 2006 - 2007 | 2.0L EJ207 I4 Turbo / 6-piston Brembo Front / PCD 100 / Dixcel 2-piece rotor |
| Subaru | Impreza WRX STI R205 | GRB | 2010 | 2.0L EJ207 I4 Turbo / 6-piston Brembo Front / PCD 114.3 / Dixcel 2-piece rotor |
| Subaru | Impreza WRX STI S206 | GVB | 2011 | 2.0L EJ207 I4 Turbo / 6-piston Brembo Front / PCD 114.3 / Dixcel 2-piece rotor |
| Subaru | WRX STI S207 | VAB | 2015 | 2.0L EJ207 I4 Turbo / 6-piston Brembo Front / PCD 114.3 / Dixcel 2-piece rotor |
