AEM Qty 2 K-Type Closed Tip Thermocouple

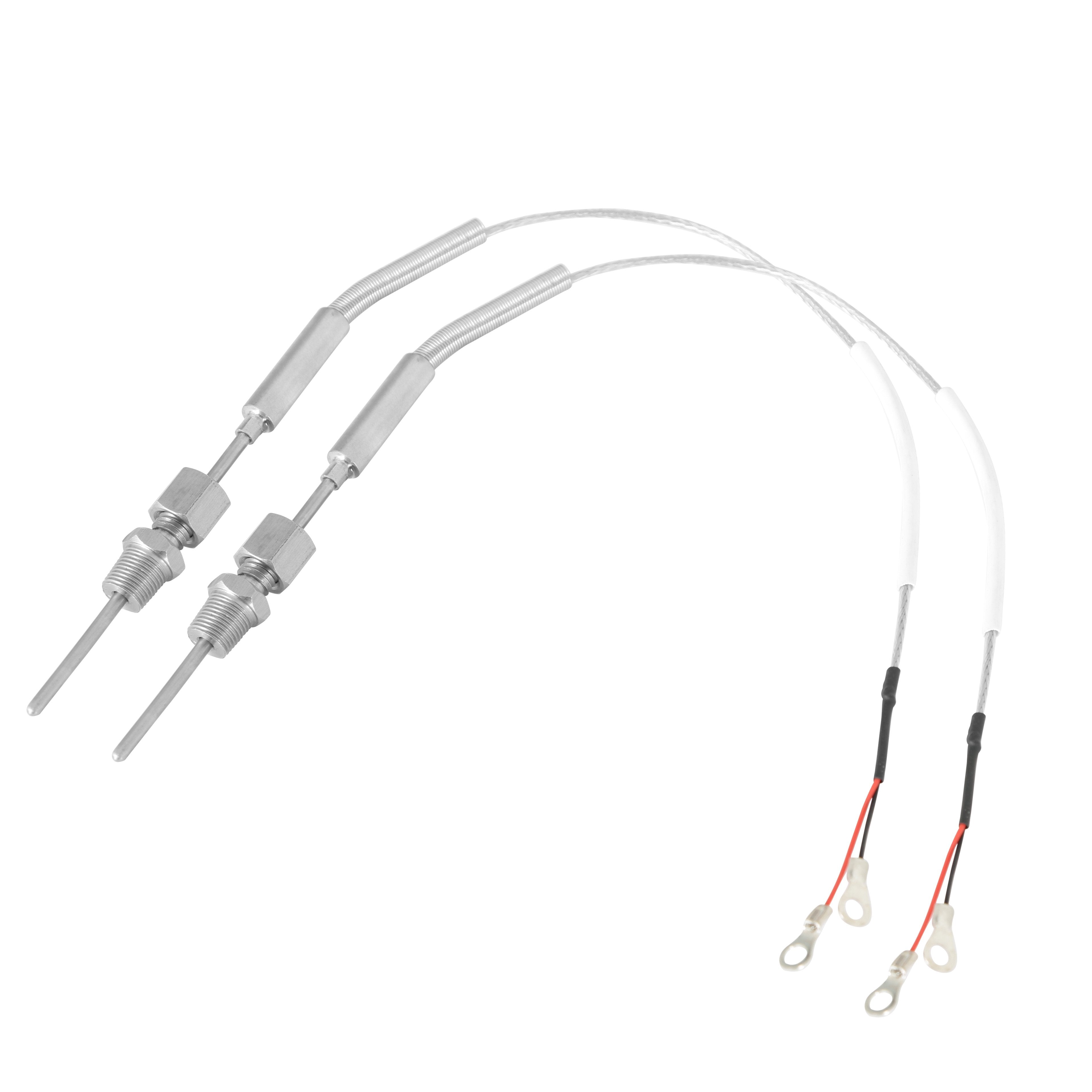

AEM’s K-Type Closed Tip Thermocouple Sensors are an affordable, fast-response solution for high-temperature monitoring in motorsport and performance applications. This 2-pack includes two closed-tip thermocouple sensors with Inconel sheaths, ideal for tracking exhaust gas temperatures (EGTs), cylinder head temps, pre/post intercooler temps, brake disc temps, and more.

Precision Temperature Monitoring

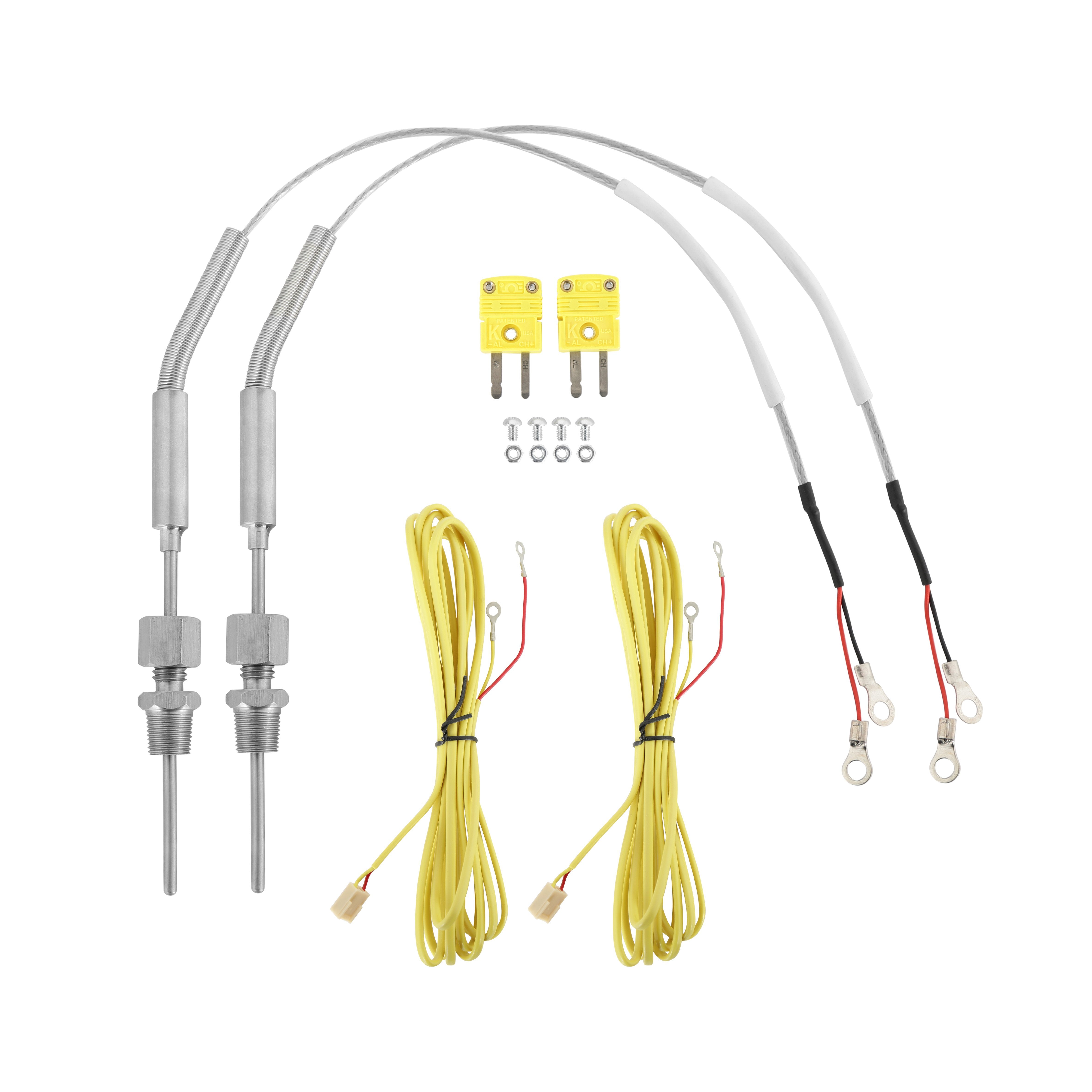

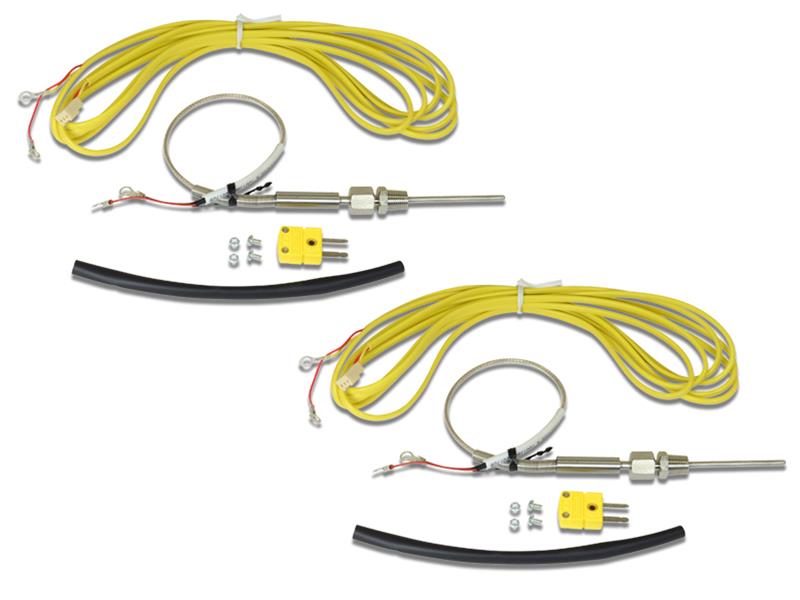

Designed for use with AEM’s 8-Channel K-Type EGT CAN Module (PN 30-2224), these sensors deliver reliable and accurate data, essential for engine tuning, diagnostics, and race data logging. Each sensor includes a 10-foot extension lead, 1/8" NPT compression fitting, and ring/terminal harness for easy installation.

Key Features

• Includes 2x closed-tip K-Type thermocouple sensors

• Fast-reacting closed-tip design for accurate, real-time readings

• Inconel sheath for superior heat and corrosion resistance

• 10-foot extension wires included per sensor

• Supplied with 1/8" NPT compression fittings

• Compatible with AEM’s CAN-based EGT systems

• Wide range of monitoring applications: EGT, CHT, IAT, coolant temp, brake temp, and more

Recommended Applications

• Exhaust Gas Temperature (EGT) monitoring

• Cylinder Head Temperature (CHT) tracking

• Intake/intercooler temperature before and after charge air cooling

• Brake rotor temperature logging

• Ideal for standalone ECUs and data acquisition systems

Note: For maximum accuracy and integration, pair with AEM’s 8-Channel K-Type EGT CAN Module (PN 30-2224). For wiring extensions, use AEM PN 30-2066.
