AEM DTM-Style Air Temp Sensor Kit – 1/8" NPT with Connector & Pins

The AEM DTM-Style Air Intake Temperature Sensor Kit is engineered for high-performance vehicles that require precise inlet air temperature monitoring. Featuring a compact 1/8" NPT brass sensor and a motorsport-grade DTM-style connector, this sensor provides fast, accurate readings to your standalone ECU, datalogger, or tuning software.

Performance-Grade Monitoring
Ideal for both naturally aspirated and forced induction engines, this sensor accurately tracks intake air temps to support air-fuel corrections, ignition adjustments, and heat soak compensation. The included aluminium bung, weatherproof mating connector, pins, and wire seals ensure a reliable and clean installation.

Key Features

• Sensor Type: Air Intake Temperature (AIT)

• Thread Size: 1/8" NPT male

• Connector: High-performance DTM-style weatherproof connector

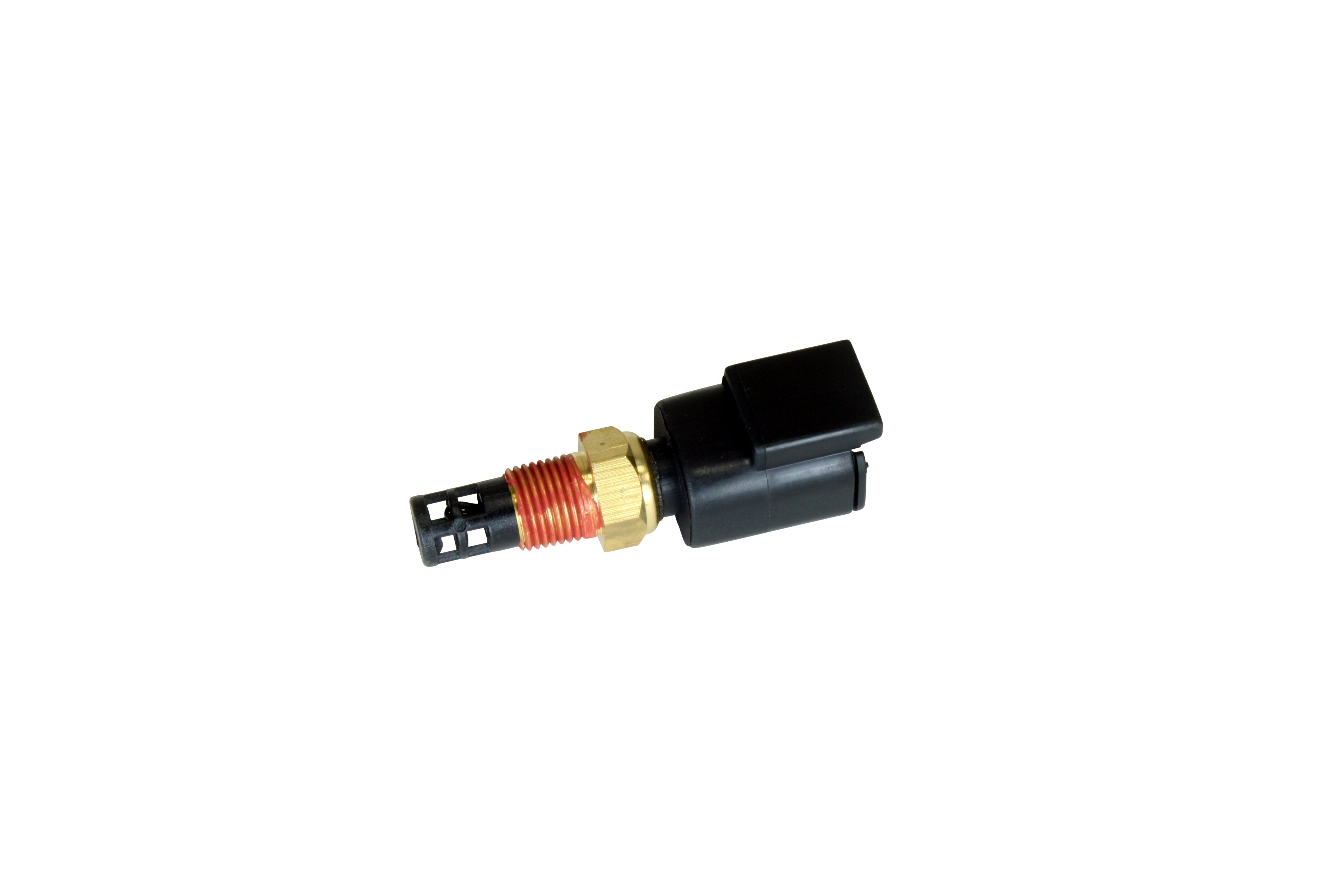

• Sensor Body: Compact brass construction

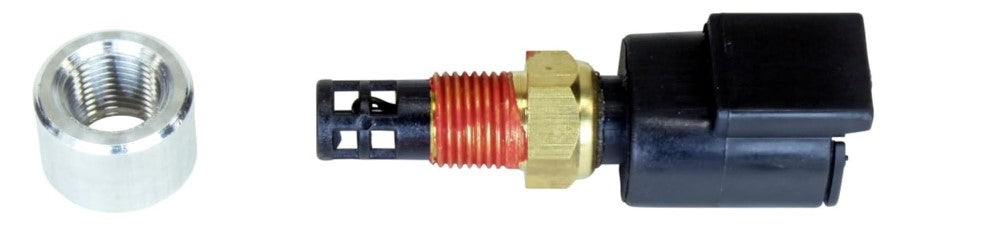

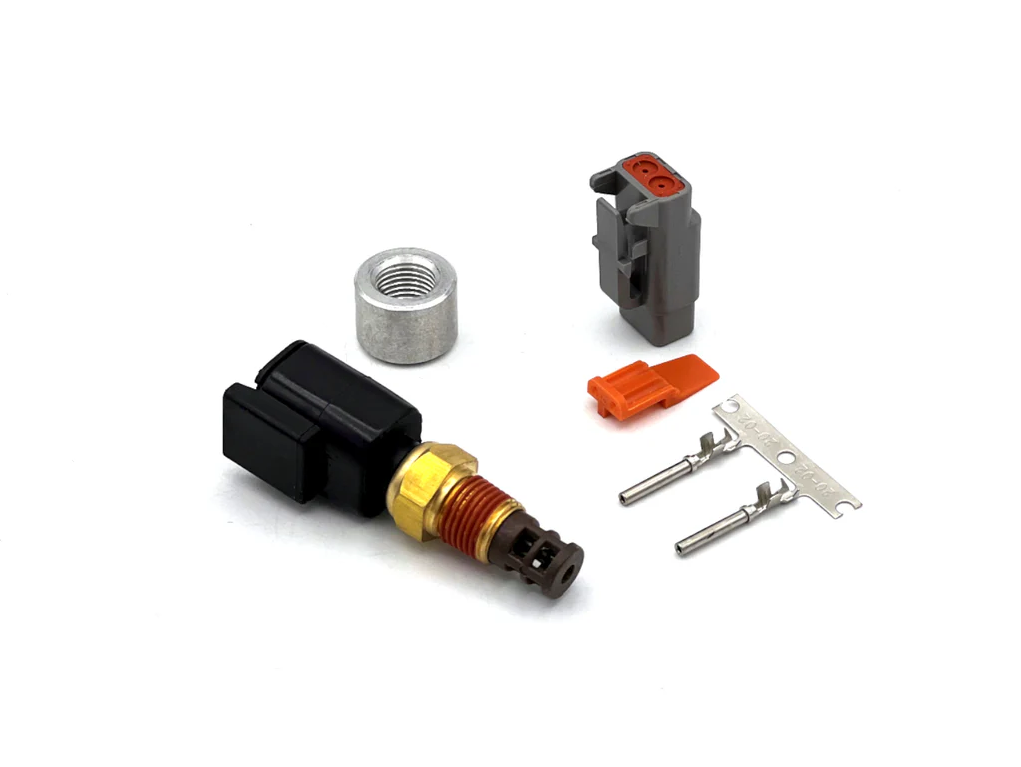

• Includes: Sensor, aluminium weld-in bung, DTM connector, pins & wire seals

• Data Output: Analog signal scaled and charted for ECU or datalogger integration

• Application: Suitable for standalone ECUs, CAN-based systems, and programmable tuning platforms

Applications

• Air temp monitoring for turbocharged, supercharged, or naturally aspirated engines

• Essential for ECU tuning and air-fuel mixture correction

• Commonly used in performance street cars, time attack builds, and full-race setups

Compare to:

• PN 30-2010 – Same sensor in 3/8" NPT configuration with standard weatherproof plug
