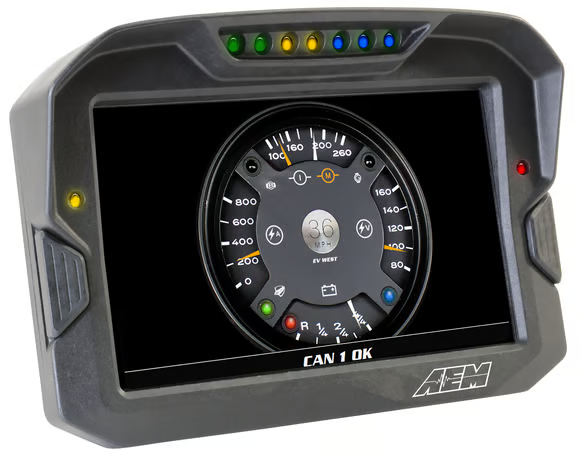

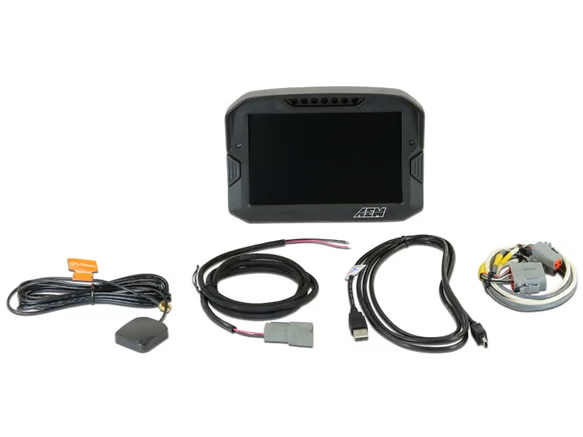

AEM CD-7G Carbon Display – Non-Logging with Internal GPS

The AEM CD-7G Carbon Display is a 7” GPS-enabled digital dash designed for high-performance applications where real-time data visibility and durability are critical. Featuring a full-colour, sunlight-readable screen and a tough carbon fibre composite enclosure, this dash integrates seamlessly with AEM and third-party CAN systems. With integrated GPS functionality and support for over 250 devices, the CD-7G is the ideal solution for competitive motorsport, marine, and off-road use.

Key Features

• Full-colour 7” screen with 800x480 resolution and anti-glare filter

• GPS-enabled with built-in 20Hz receiver and antenna

• Direct sunlight readable with 1000cd/m² brightness

• Lightweight carbon fibre composite enclosure (595g)

• IP65 rated – safe for marine and open-cockpit use

• Dual CAN input support for AEMnet and third-party CAN devices

• Built-in toggle buttons; remote button support via rear harness

• Seven programmable pages: 4 Main, Alarm, On-Change, Start-up

• Dedicated Alarm and On-Change pages for warnings and mode switching

• Integrated RPM/shift light indicators (7 LEDs, dimmable)

• Two additional programmable LEDs above the toggle buttons

• Odometer function and customisable warning icons (200+ included)

• DashDesign software for layout and logic configuration (free)

• User-supplied graphics and multi-language support

• ‘Headlight-in’ dimming connection for night-time use

• Two extra switch inputs (ideal for indicators, beams, etc.)

Compatibility

• Compatible with 2008+ ECUs via OBDII CAN Adapter (PN 30-2217, sold separately)

• Suitable for carbureted/pre-2008 ECUs using 22 Channel CAN Sensor Module (PN 30-2212)

• Expand data channels with 8 Channel K-Type EGT Module (PN 30-2224)

• Enhance functionality with optional Vehicle Dynamics Module (PN 30-2206)

• Plug & Play support for Holley, Link, Vi-Pec, and MSD Atomic ECUs
