AEM CD-5 Carbon Display – Non-Logging / Non-GPS

$2,291.00
SKU: 30-5600
Quantity:
Available to Order
Estimated shipping: 7 - 10 Days
Need it sooner? Contact us and we’ll see what we can do.

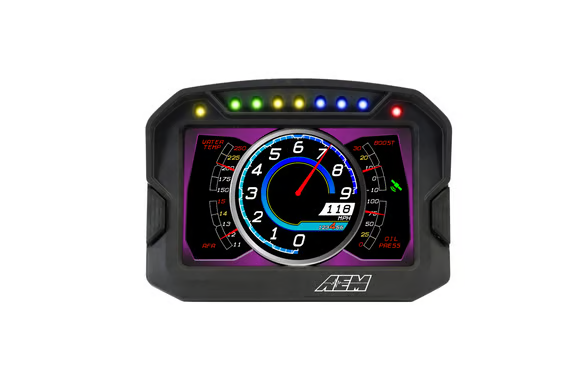

The AEM CD-5 Carbon Display is a compact, full-colour digital dash designed for serious motorsport and performance applications. Featuring a 5" daylight-readable screen within a lightweight carbon fibre composite housing, the CD-5 offers robust data display functionality without internal logging or GPS. With a total weight of just 331 grams, it’s the ideal solution for those seeking a reliable and low-profile digital dash.

Key Features

  • 5" full-colour display (800x480 resolution)

  • Direct sunlight readable (1000cd/m² brightness with anti-glare filter)

  • Lightweight flow-moulded carbon fibre composite enclosure (331g total)

  • Two integrated front buttons for page change/reset (glove-compatible)

  • Seven programmable shift light LEDs (dimmable, user-defined ranges)

  • Two additional programmable LEDs

  • IP66-rated for water resistance – suitable for motorsport, marine, and motorcycle use

  • Accepts inputs from two user-configurable CAN bus channels (AEMnet + third-party)

  • Layout files are interchangeable with CD-7 dashes

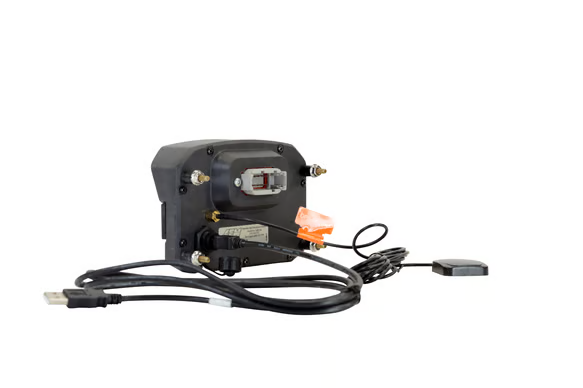

  • Compatible wiring harness and interface with all CD-series displays

  • Over 250 supported CAN devices, including factory ECUs (2008+) via optional OBDII CAN cable

  • Supports Plug & Play integration with Holley, Link, Vi-Pec, and MSD Atomic ECUs

  • Carbureted/pre-OBD vehicles supported with optional 22-Channel CAN Sensor Module

  • Expandable with optional modules:

    • Vehicle Dynamics Module (PN 30-2206)

    • 8-Channel K-Type EGT Module (PN 30-2224)

    • OBDII Adapter (PN 30-2217)

  • Free DashDesign software for custom layouts, pages, and warnings

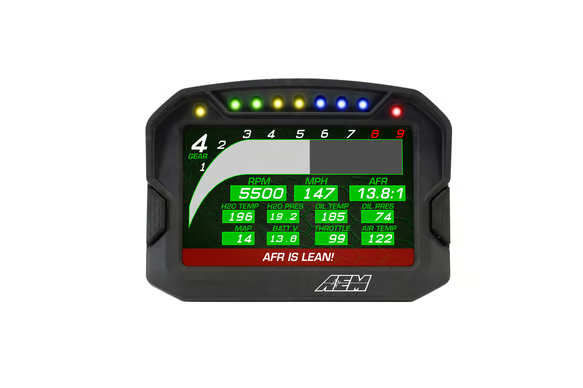

  • Supports seven programmable pages: 4 main, Alarm, On-Change, and Start-Up

  • Built-in odometer and over 200 programmable SAE/custom icons

  • 'Headlight-in' trigger for dimming at night

  • User-supplied full-screen graphics and channel-triggered text display
