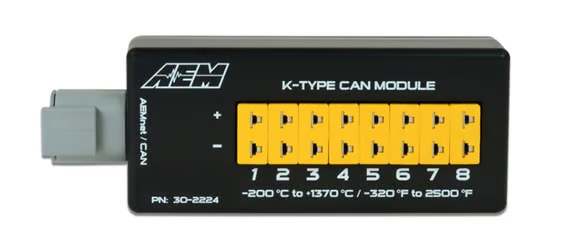

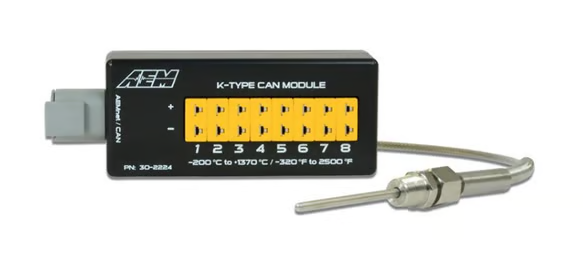

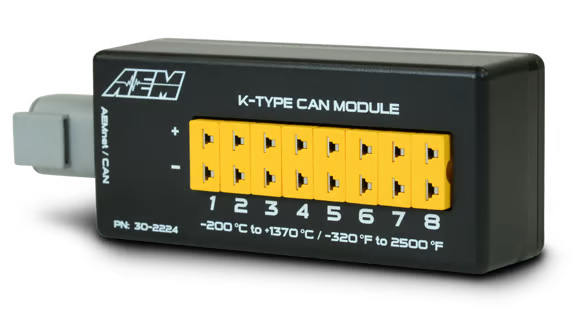

AEM 8 Channel CAN EGT Module – K-Type Sensors

The AEM 8 Channel CAN EGT Module is designed to deliver precise exhaust gas temperature readings via up to eight K-Type thermocouple sensors. Ideal for high-performance tuning and data logging applications, this compact module outputs over a single CAN bus connection and integrates seamlessly with AEM CD Digital Dashes, Infinity ECUs, and AQ-1 data loggers. Whether you're monitoring individual cylinders or key temperature points throughout your engine, this unit provides high-resolution, lab-grade accuracy in a motorsport-ready package.

Key Features

• Supports up to 8 K-Type thermocouple sensors (sold separately)

• Compatible with AEM CD Dashes, Infinity ECUs, and AQ-1 data loggers via AEMnet

• Daisy chain up to 2 modules for 16 temperature inputs through a single connection

• Configurable CAN output over a single DTM-style connector

• Cold junction compensated for ±0.15% full-scale accuracy

• Wide measurement range from -200°C to 1372°C (-328°F to 2501°F)

• 0.1°C (0.18°F) resolution for precise tuning and diagnostics

• Integrated fault detection and open circuit warning

• Miniature thermocouple socket support for easy sensor connection

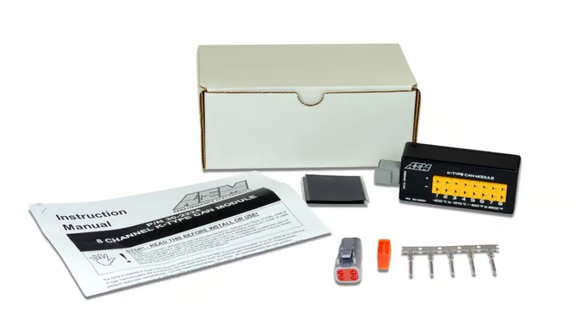

Included

• AEM 8 Channel K-Type EGT CAN Module

• 4-Pin DTM-Style Connector Plug

• Mounting Velcro

• Installation instructions

Compatibility

• AEM CD-5/CD-7 Carbon Digital Dashes

• AEM Infinity ECU Series

• AEM AQ-1 Data Logger

• Not compatible with Series 2 ECUs

Note: Thermocouple sensors and DTM CAN cables sold separately.
