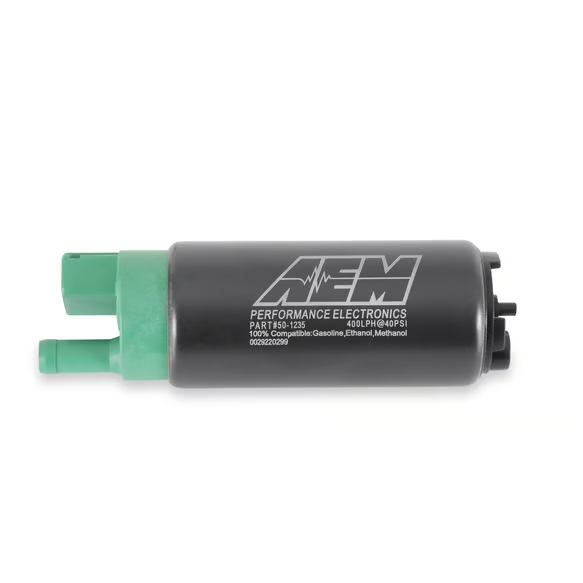

AEM 400LPH E85-Compatible High Flow In-Tank Fuel Pump – Single Barb

The AEM 400LPH High Flow In-Tank Fuel Pump (Single Barb) is built to meet the demands of high-performance EFI setups, supporting both naturally aspirated and forced induction engines. With robust flow rates, ethanol compatibility, and a compact 39mm body, this pump is ideal for enthusiasts aiming to support 1000+ HP* on gasoline or alternative fuels like E85 and methanol. The smooth single barb outlet is designed for use with 5/16” ID hose, making installation easier in many OE-style configurations.

Key Features

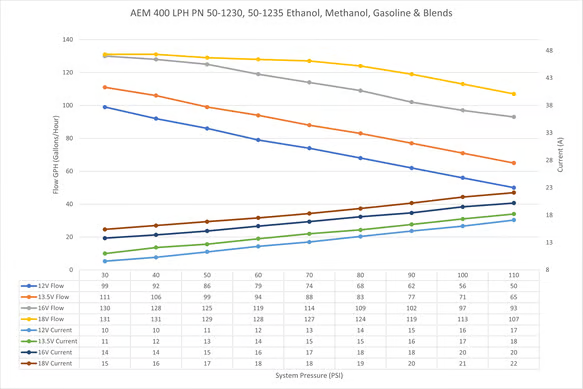

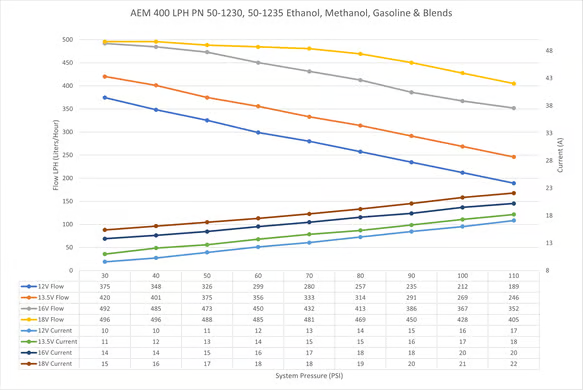

• Flows 400+ LPH at 40 PSI (13.5V); supports 1000+ HP on petrol*

• Delivers 330+ LPH at 70 PSI (13.5V); supports ~870 HP on petrol*

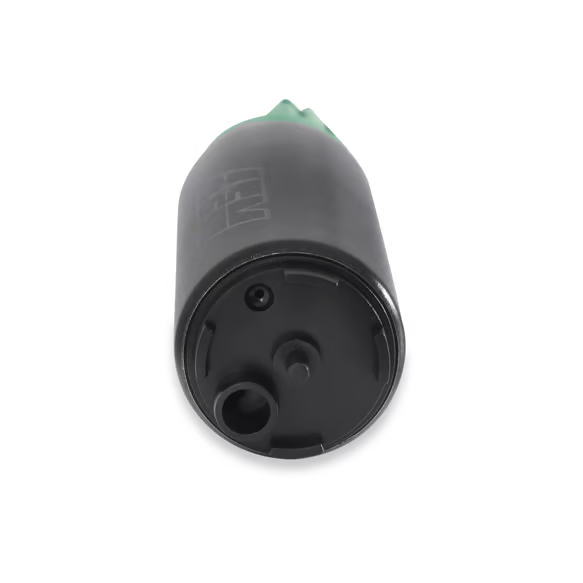

• Smooth 9mm outlet barb compatible with 5/16” ID hose

• Compact 39mm body for drop-in replacement in many vehicles

• Fully compatible with E85, ethanol (up to E100), and methanol (up to M100)

• Low current draw: 12A @ 40 PSI, 15A @ 70 PSI

• Individually flow-tested for quality assurance

Important Notes

• May require upgraded wiring due to increased current draw – refer to installation instructions

• Does not include an integrated check valve

• For 3/8” hose compatibility, see SKU 50-1230 (double barb version)

Included

• AEM 400LPH Fuel Pump (Single Barb)

• Wiring harness

• Pre-filter

• End cap

• Rubber buffer sleeve
