What Are TGV Deletes?
TGV stands for Tumble Generator Valve — a set of butterfly valves built into the intake manifold of Subaru's EJ-series turbocharged engines. The factory TGV assemblies sit between the intake manifold and the cylinder head ports, and each one contains a motorised butterfly valve and a divider rod that splits the intake port into two channels.
Subaru designed the TGV system to improve fuel atomisation and combustion efficiency at low RPM and light load — specifically to help the engine meet emissions targets during cold starts and gentle cruising. At low RPM, the butterfly valves partially close and the divider rod directs intake air into a tumbling motion inside the combustion chamber, promoting better fuel mixing. At higher RPM and load, the valves open fully and the system becomes passive.
A TGV delete replaces the entire factory TGV assembly with a solid billet plate that removes the butterfly valves, divider rods, and electric motors entirely. The result is a clear, unobstructed path between the intake manifold and the cylinder head — no valves, no dividers, no restrictions.
Important: TGV deletes are for track and competition use only. Removing the factory TGV system affects emissions compliance and will trigger a check engine light that must be addressed through ECU tuning. This modification is not intended for road-registered vehicles.
What Do TGV Deletes Actually Do?
Increased Intake Volume and Flow
The factory TGV assemblies are bulky. The butterfly valves, divider rods, and motor housings take up physical space inside the intake path. Even when the valves are fully open at high RPM, the butterfly plate and rod still sit in the airstream, creating turbulence and reducing the effective cross-sectional area of the port.
A TGV delete plate removes all of this hardware. The intake port becomes a smooth, unobstructed channel with the full cross-sectional area available for airflow. On a stock engine, this makes a modest difference. On an engine with an upgraded turbo, larger injectors, and aggressive tuning, the improved intake flow becomes more meaningful — the engine can fill the cylinders more efficiently at high RPM and boost.
Improved Throttle Response
With the TGV butterflies and dividers removed, the intake path has less turbulence and less restriction. The result is a noticeable improvement in throttle response — the engine feels sharper and more immediate on tip-in. This is one of the changes that owners notice most after fitting TGV deletes, even before looking at dyno numbers.
Reliability — Removing a Known Failure Point
On older EJ engines (particularly GD and GG chassis), the factory TGV motors and their wiring are a known reliability issue. The electric motors can fail, the wiring connectors corrode, and the butterfly valves can stick or bind. A failed TGV motor triggers a check engine light and can cause rough running at idle.
By replacing the entire assembly with a solid billet plate, you eliminate these failure points entirely. There are no motors to fail, no wiring to corrode, and no moving parts to bind. For high-mileage EJ engines or dedicated track cars, this is a meaningful reliability improvement.
Cleaner Engine Bay
The factory TGV assemblies include bulky electric motors with wiring connectors on each side of the engine. Removing them frees up space and reduces the number of connectors and wiring runs in the engine bay. On a track build where you're stripping unnecessary components and reducing potential failure points, this is part of a broader simplification strategy.
Power Gains
TGV deletes on their own are not a significant power modification. On a stock turbo WRX or STI, expect 3–8whp — modest gains that you're unlikely to feel from the driver's seat in isolation. The improvement in throttle response is more noticeable than the peak power gain.
Where TGV deletes become more meaningful is as part of a broader build. On an engine running a Blouch Dominator turbo, larger injectors, a full KORSH turbo-back exhaust, and aggressive tuning, the improved intake flow from TGV deletes contributes to the overall efficiency of the system. The engine can breathe better on the intake side, which complements the improved exhaust flow on the other side. At 400whp+, every restriction you remove matters.
Think of TGV deletes not as a standalone power modification, but as a supporting modification that removes a restriction and a reliability concern — similar to fitting an air oil separator or upgrading the fuel pressure regulator. Each one on its own is a small gain, but together they build a complete, reliable, well-engineered platform.
Do I Need a Tune?
Yes. Removing the factory TGV motors will trigger a check engine light (CEL) because the ECU expects to see the TGV motor signals. This CEL must be disabled through a custom ECU tune — there is no other way to clear it permanently.
If you're already running an aftermarket ECU tune (which you should be if you have any other engine modifications), your tuner can disable the TGV function as part of the existing tune. If TGV deletes are your first modification, you'll need a tune to go with them.
This is another reason why TGV deletes are best fitted as part of a broader build — if you're already tuning for a downpipe, exhaust, or turbo upgrade, the tuner disables the TGV function at the same time with no additional cost.
What to Look for in a TGV Delete Kit
Material and Machining
The TGV delete plates bolt directly to the cylinder head and sit in one of the hottest areas of the engine bay. They need to handle sustained heat without warping, cracking, or developing leaks. Cheap cast or stamped TGV deletes can warp over time, causing boost leaks between the intake manifold and head — which is one of the most difficult leaks to diagnose because it's internal to the engine.

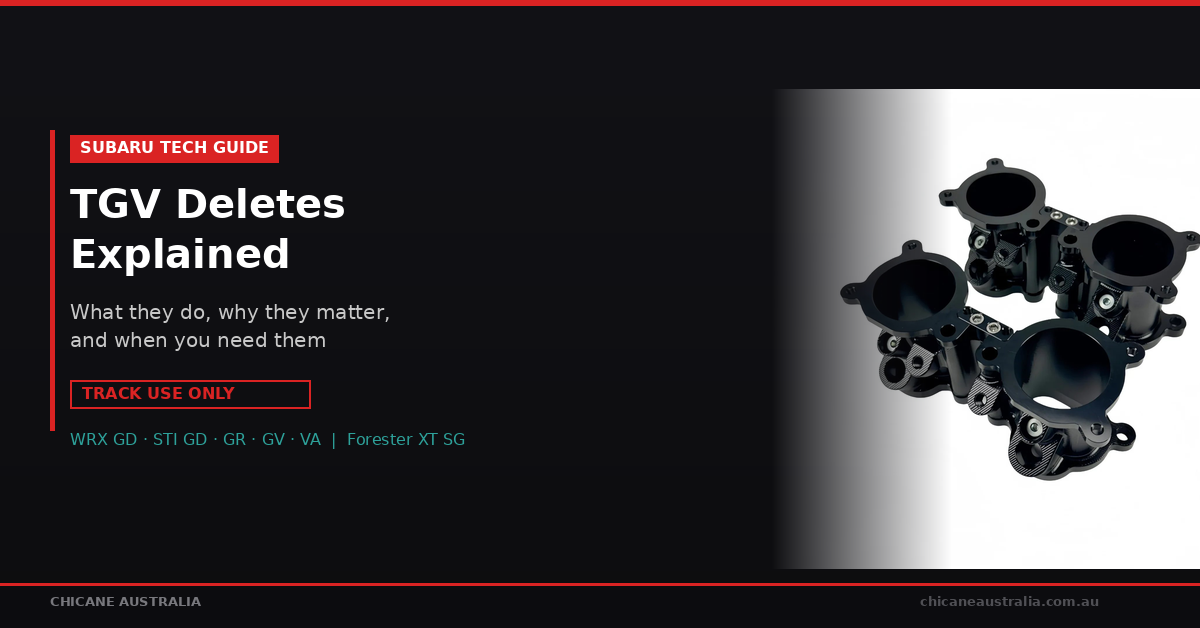

The KORSH TGV delete kit is CNC-machined from billet aluminium — not cast, not stamped. CNC machining from a solid billet ensures consistent wall thickness, precise port alignment, and a perfectly flat sealing surface. Available in black anodised or polished finish.
Gaskets
The seal between the TGV delete plate and the cylinder head is critical. A poor gasket here means a boost leak directly into the engine bay — unmetered air entering the intake that your wideband and ECU can't account for. The KORSH kit includes Radium Engineering TGV gaskets — the same gaskets trusted by professional engine builders. Eight gaskets are included (four per side) for a complete, reliable seal.
Complete Kit
The KORSH TGV delete kit includes everything needed for installation: two billet TGV delete plates (left and right), eight Radium Engineering gaskets, and all mounting hardware. No sourcing additional bolts, gaskets, or adapters.
Vehicle Fitment
TGV deletes are specific to Subaru's EJ-series turbocharged engines. The KORSH kit fits:
• Subaru WRX (GD/GG) — 2001–2007
- Subaru WRX STI (GD) — 2004–2007
- Subaru WRX STI (GR/GV) — 2008–2014
- Subaru WRX STI (VA) — 2015–2021
- Subaru Forester XT (SG) — 2003–2008
Note: The 2015+ WRX (VA) uses the FA20 engine, not the EJ25. The FA20 does not have TGV assemblies — this modification applies to EJ-series engines only. The 2015+ STI (VA) continues to use the EJ25 and does accept TGV deletes.
When Should You Fit TGV Deletes?
TGV deletes make the most sense in these scenarios:
Track or competition build: You're building a dedicated track car and stripping unnecessary components. TGV deletes remove a restriction, eliminate a failure point, and simplify the engine bay. This is their primary use case.
Turbo upgrade build: If you're fitting a Blouch Dominator turbo, KORSH turbo-back exhaust, Injector Dynamics injectors, and Radium fuel system, TGV deletes complete the intake side of the equation. Your tuner is already doing a full custom tune — adding TGV deletes at this point is minimal additional cost for maximum system efficiency.
High-mileage EJ with failing TGV motors: If your factory TGV motors have already failed or are intermittent, replacing them with billet deletes is a permanent fix rather than sourcing replacement motors that will eventually fail again. This only applies to track or competition vehicles.
Not recommended as a standalone first modification for a daily-driven car. The modest power gains don't justify the cost of a tune if you're not already planning other modifications. Start with a cat-back exhaust or turbo upgrade first — TGV deletes are a supporting modification, not a primary one.
