Upgrading the Downpipe on Your Civic Type R
The downpipe is the single most effective bolt-on exhaust modification you can make to the Honda Civic Type R. The factory downpipe on both the FK8 (2017–2021) and FL5 (2023+) is the most restrictive section of the entire exhaust system — replacing it with a higher-flowing aftermarket unit unlocks meaningful power gains, improves turbo spool, and gives your tuner significantly more room to work with.
Both generations of the Civic Type R use Honda's K20C1 turbocharged 2.0-litre engine. Despite the FK8 and FL5 being different cars with different chassis, suspension, and bodywork, they share the same engine platform and turbo configuration. This means a single downpipe design can fit both generations — but there are details worth understanding before you buy.
FK8 vs FL5 — Same Engine, Same Downpipe
The K20C1 turbo outlet flange is identical between the FK8 and FL5. The downpipe routing, mid-pipe connection point, and mounting locations are the same. A quality aftermarket downpipe designed for the Civic Type R fits both generations without modification.

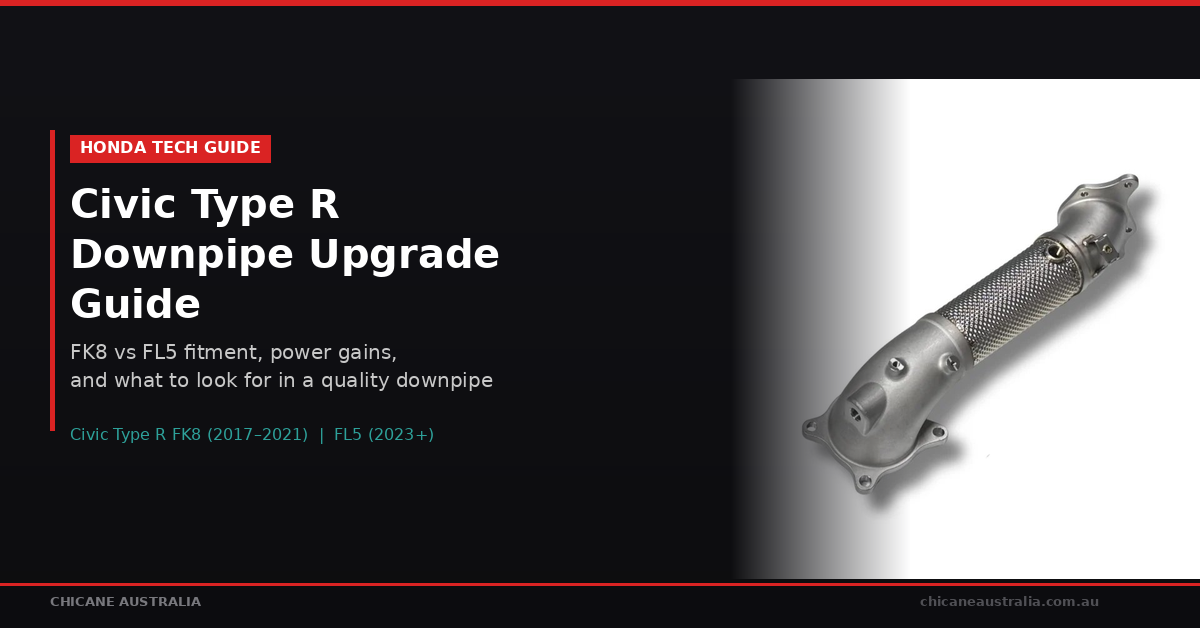

The KORSH Civic Type R downpipe is a direct bolt-on replacement for both the FK8 and FL5. No cutting, no welding, no fabrication — remove the factory unit and bolt the KORSH downpipe in its place using the factory hardware locations.
Where the FK8 and FL5 differ is in the factory ECU calibration and the exhaust system downstream of the downpipe. The FL5 has a slightly different cat-back layout and revised exhaust valve tuning. This doesn't affect downpipe fitment, but it does mean your tuner needs to account for which generation you're running when calibrating the ECU after installation.
What to Look for in a Civic Type R Downpipe
Not all aftermarket downpipes are built to the same standard. The K20C1 operates at high boost pressures and exhaust gas temperatures, which means the downpipe needs to handle sustained thermal stress without warping, cracking, or developing leaks. Here's what separates a quality downpipe from a cheap one:
Cast flanges are three-dimensional — they're moulded to match the exact profile of the turbo outlet and mid-pipe connection. Cast flanges distribute clamping force evenly across the entire sealing surface, maintain a consistent seal under heat cycling, and resist warping over time. They're heavier to manufacture and more expensive, but they seal properly and stay sealed. Look for cast flanges on both ends of the downpipe — some manufacturers use a cast flange on the turbo end (where the buyer is most likely to look) but a cheaper laser-cut flat flange on the outlet end where it meets the mid-pipe. That outlet connection is under just as much thermal stress as the turbo end.
Laser-cut flat flanges are stamped from flat sheet metal. They're cheaper and faster to produce, but flat flanges don't distribute clamping force as evenly as a cast flange and are more susceptible to warping under repeated heat cycling. Over time, this can cause exhaust leaks at the joint. An exhaust leak near the turbo is not just a noise issue — it affects boost control, exhaust gas temperature readings, and can introduce false readings to the wideband oxygen sensor that your tune relies on. Check the construction at both ends before you buy.
The KORSH Civic Type R downpipe uses cast flanges on both the turbo outlet and mid-pipe connections. This is a genuine engineering decision — cast flanges cost more to produce but they seal properly and stay sealed through thousands of heat cycles.
Mandrel-Bent Tubing
The bends in a downpipe need to maintain a consistent internal diameter throughout. Crush-bent tubing (the cheap method) creates restrictions at every bend point — the pipe walls collapse inward, reducing the effective diameter and creating turbulence. Mandrel-bent tubing uses an internal mandrel during the bending process to keep the tube round, maintaining smooth laminar flow through every bend.
On a downpipe where the bends are tight and the flow path is short, the difference between mandrel-bent and crush-bent is more significant than it would be on a longer, straighter section of exhaust. Every restriction between the turbo outlet and the cat-back costs you spool time and power.
Catted vs Catless
The KORSH Civic Type R downpipe is available with a high-flow catalytic converter. Here's the honest breakdown:
Catted (high-flow cat): A high-flow cat flows significantly more than the factory unit while still performing its emissions function. The power difference between a quality catted downpipe and a catless one on the K20C1 is typically 5–10whp at most. A catted downpipe produces less smell, keeps the car closer to emissions compliance, and is the sensible choice for any car that sees street use. Modern high-flow cats are extremely efficient — you're giving up very little performance for a lot of practicality.
Catless: Removing the cat entirely gives maximum flow and a small additional power gain. However, catless downpipes produce a noticeable sulphur smell (especially during warm-up), are significantly louder at idle, and are not legal for road registration in most Australian states. If the car is a dedicated track or competition vehicle, catless makes sense. For anything that drives on public roads, catted is the right choice.
Power Gains — What to Expect
The K20C1 responds well to exhaust modifications because the factory turbo is capable of more than the stock tune allows. With a downpipe and a proper tune, expect:
Downpipe + tune (stock turbo): 15–30whp and 20–40wtq over stock, depending on fuel (pump vs E85) and tune aggressiveness. The gains come from reduced backpressure, faster turbo spool, and the ability for the tuner to run more efficient ignition timing and boost targets.
Downpipe + cat-back + tune: An additional 5–10whp on top of the downpipe gains. The cat-back section is less restrictive than the factory downpipe, so the gains are more modest — but the sound improvement is significant.
The K20C1 has a hard power ceiling on the stock turbo. A downpipe and tune will get you close to that ceiling. Beyond that, you're looking at turbo upgrades, larger injectors, and fuelling modifications — which is a different conversation entirely.
Do I Need a Tune?
Yes, always. Replacing the downpipe on a Civic Type R requires an ECU calibration. The change in exhaust flow affects air-fuel ratios, boost control, and exhaust gas temperature readings. Running an aftermarket downpipe on the factory tune will trigger check engine lights, limp mode, and potentially unsafe fuelling conditions.
Budget for a professional tune from a reputable Honda tuner who has experience with the K20C1. The tune is not optional — it's part of the modification cost.
Supporting Modifications
A downpipe is often the first step in a broader Civic Type R build. Here's what complements it:
With the downpipe:
• ECU tune — mandatory
- Quality brake pads — DIXCEL Z-type or RE-type for the Civic Type R. The Type R's Brembo brakes deserve pads that match the car's capability, especially if you're adding power
- Alignment and suspension setup — Hardrace adjustable arms let you dial in camber and toe properly. Read our camber setup guide for vehicle-specific recommendations
Going further:
• Front-mount intercooler — the factory intercooler heat soaks quickly on track. An aftermarket FMIC maintains consistent intake temperatures under sustained load
- Larger injectors — necessary for E85 builds
- Cat-back exhaust — completes the exhaust path for maximum flow and the sound to match
Installation
The KORSH Civic Type R downpipe is a direct bolt-on replacement. No cutting, welding, or modification to the car is required. The cast flanges align with the factory turbo outlet and mid-pipe connections, and all factory hardware locations are maintained.
Installation can be done on a hoist by an experienced mechanic in approximately 1–2 hours. The main challenge is access — the downpipe sits between the engine and firewall in a tight space. Having the car on a hoist with the front subframe accessible makes the job significantly easier.
Professional installation is recommended if you're not experienced with exhaust work on transverse-mounted turbo engines.
