Radium Remote Mount Vented Filler – 2.25in

The Radium 20-1204-V Remote Mount Dry Break Filler is designed for body panel installation and includes a vented 1.5in female dry break receiver. Compatible with all fuel types, it features a 2.25in hose barb and integrated roll-over protection. This is an ideal solution for quick-fill applications using dump cans.

Key Features

• Includes 20-0549-V vented 1.5in female dry break

• 2.25in hose barb for high-flow filler hose

• Roll-over protection built into cap

• Mounts via 5 × M5 bolts on 4.25in PCD

• Requires 77mm (3.03in) mounting hole

• Compatible with dump can probe 20-0496

• Fuel-safe materials (petrol, E85, diesel, methanol, etc.)

Specifications

• Outer flange diameter: 4.75in

• Bolt Circle Diameter: 4.25in

• Height: 4.08in

• Hose ID requirement: 2.25in

Included

• Vented female dry break

• Aluminium housing and nut ring

• Stainless steel hardware

• Gasket

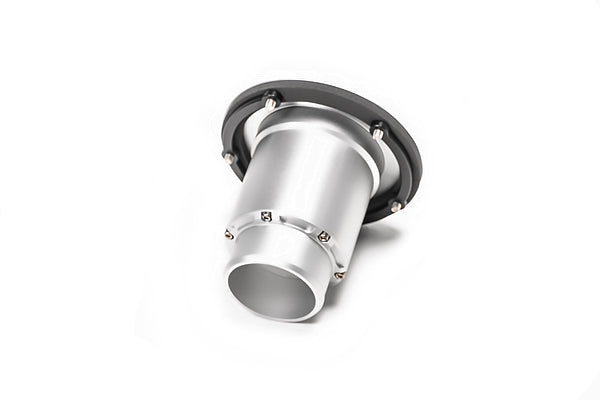

Radium Remote Mount Vented Standard Filler – 2.25in Hose Barb
Part No. 20-1205-V

Overview
The Radium 20-1205-V is a remote mount, vented standard filler designed for direct installation to body panels. Featuring roll-over protection and a machined 2.25in hose barb, this unit is ideal for high-flow gravity-fill applications. Compatible with all fuel types and upgradable to dry break functionality using 20-0549-V.

Key Features

• Vented fuel cap with integrated roll-over protection

• 2.25in hose barb for large ID filler hose

• Mounts via 5 × M5 bolts on 4.25in PCD

• Requires 77mm (3.03in) mounting hole

• Constructed from anodised aluminium

• Fuel-safe materials for all common fuel types

Specifications

• Outer flange diameter: 4.75in

• Bolt Circle Diameter: 4.25in

• Height: 4.1in

• Hose ID requirement: 2.25in

Included

• Vented standard cap

• Flanged fill neck

• Flame/ozone resistant gasket

• Anodised nut ring

• Stainless steel M5 bolts

• Cap tether components

Notes

• No tank-side adapters included

• Can be upgraded to dry break with Radium 20-0549-V
