What Is Fuel Vapour Venting and Why Does It Matter?
Every fuel tank produces vapour. As fuel sloshes, heats up, or gets displaced during refuelling, hydrocarbon gases escape through the tank's vent system. On a road car, the factory EVAP system captures these vapours and feeds them back into the intake. But on modified, track, or competition vehicles — especially those running aftermarket fuel cells, surge tanks, or deleted EVAP systems — those vapours vent straight to atmosphere.
The result is a persistent fuel smell around the car, measurable hydrocarbon emissions, and in enclosed spaces like garages or trailers, a genuine safety hazard. At track days and sanctioned events, scrutineers increasingly check for uncontrolled fuel venting. A charcoal canister solves all three problems without adding any restriction to the fuel system.
How a Fuel Vent Charcoal Canister Works
A charcoal canister sits inline on the fuel tank's vent line. Fuel vapour enters the canister, passes through a bed of activated carbon, and exits as clean air. The activated carbon adsorbs the hydrocarbon molecules — trapping the fuel vapour while allowing air to pass freely. It's a passive system with no moving parts, no electronics, and no maintenance beyond eventual carbon replacement at very high mileage.
The key concern with any inline canister is restriction. If the canister creates backpressure on the vent line, it can pressurise the fuel tank and cause issues with fuel delivery, tank deformation, or fuel pump cavitation. This is where engineering quality matters — a well-designed canister must flow enough air to keep the vent system unrestricted while still capturing vapour effectively.

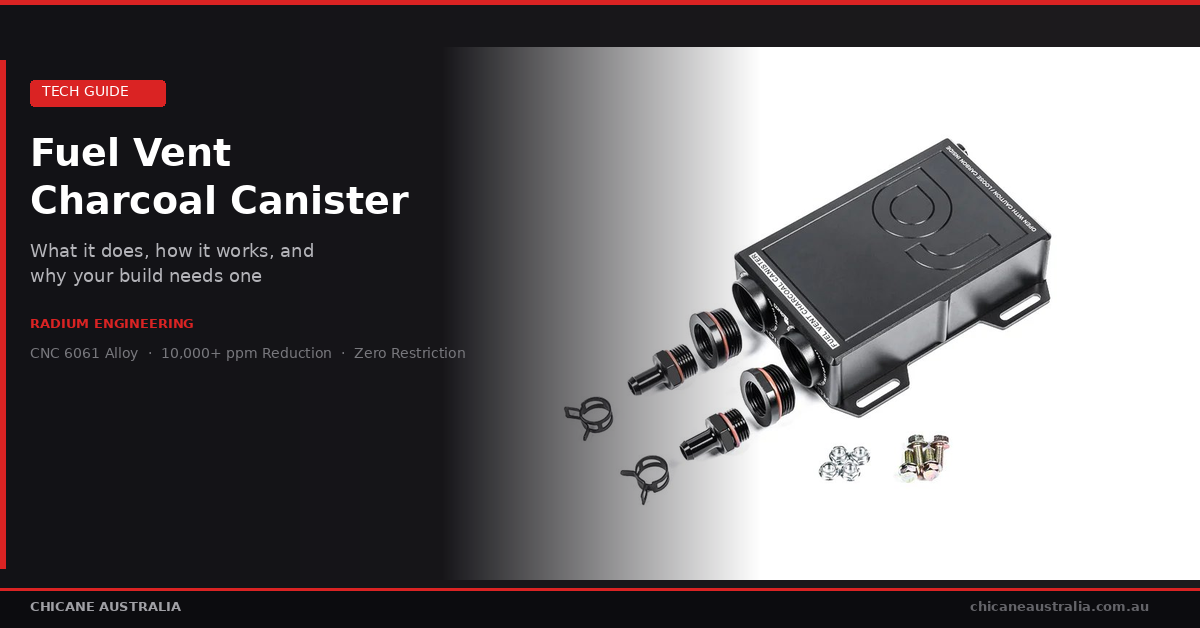

Radium Engineering Fuel Vent Charcoal Canister — Engineering Detail
The Radium Engineering Fuel Vent Charcoal Canister is CNC machined from 6061 aluminium and Type-II anodised for corrosion resistance. Inside, the activated carbon is vibratory-packed (a process that eliminates air gaps and ensures consistent density across the entire carbon bed) and contained within a 150-micron strainer behind an anodised aluminium baffle. This prevents any loose carbon media debris from escaping the canister into your fuel vent lines.
Flow and Restriction Testing
Radium Engineering tested the canister using a quick-flow dry break dump can to measure pressure drop. The result: negligible difference in flow between the canister installed and no canister installed. For practical purposes, it adds zero restriction to the fuel vent system. This is critical — it means the canister can be installed on high-flow fuel systems, competition fuel cells, and surge tank setups without any impact on fuel delivery or tank pressurisation.
Vapour Elimination Testing
Using a combustible gas detector measuring from 50 ppm to 10,000 ppm, Radium measured fuel vapour at the atmospheric exit of a fuel tank vent system. Without the charcoal canister installed, the detector maxed out beyond 10,000 ppm — the sensor's upper limit. With the charcoal canister installed, the detector registered below 50 ppm — effectively zero measurable fuel vapour. That's a reduction from over 10,000 ppm to under 50 ppm, which is below the detection threshold of the test equipment.
Port Configuration
The canister features two 16AN ORB (1-5/16"-12) female ports that can be used interchangeably as inlet or outlet, designed for high-flow fuel venting applications. At the bottom, two 4AN ORB (7/16"-20) female ports with preinstalled plugs serve as drain points for any fuel that condenses inside the canister. Depending on mounting orientation, one of these ports can be used with Radium's optional Petcock Drain Kit for periodic maintenance.
Compatibility
The Radium charcoal canister is designed for both EFI and carbureted fuel systems. It's a universal-fit component — the 16AN ports accept standard AN fittings, making it compatible with virtually any aftermarket fuel system setup. Common applications include fuel cell venting on track cars, surge tank vent lines on high-power builds, and EVAP delete replacements on modified street cars.
When Do You Need a Charcoal Canister?
If any of the following apply to your build, a charcoal canister should be part of your fuel system:
- EVAP system deleted — Common on engine-swapped or heavily modified vehicles. Without the factory EVAP, you need something to capture fuel vapour.
- Aftermarket fuel cell installed — Competition fuel cells vent to atmosphere by default. A charcoal canister on the vent line eliminates fuel smell and meets scrutineering requirements.
- Running a fuel surge tank — Surge tanks like the Radium MPFST or FHST vent return fuel and vapour. Canisters on the vent line keep everything clean.
- Track or competition use — Many sanctioning bodies are tightening rules on fuel vapour emissions. Having a charcoal canister demonstrates compliance and is increasingly expected at scrutineering.
- Garage stored vehicles — Fuel vapour accumulation in enclosed spaces is a fire and health hazard. A canister eliminates this risk entirely.
Charcoal Canister vs Catch Can — What's the Difference?
A common point of confusion: a charcoal canister and a catch can are completely different components that solve different problems.
A catch can sits on the crankcase ventilation system (PCV) and captures oil vapour and blow-by gases from the engine before they enter the intake. It prevents carbon buildup on intake valves and ports — particularly important on direct-injection engines.
A charcoal canister sits on the fuel tank vent system and captures fuel vapour before it escapes to atmosphere. It has nothing to do with engine oil or blow-by.
Many high-performance builds need both — a catch can on the PCV system and a charcoal canister on the fuel vent system. They serve entirely separate functions and are installed on different parts of the vehicle.
Frequently Asked Questions
Does the charcoal canister restrict fuel flow?
No. Radium's testing showed negligible pressure drop when the canister is installed versus not installed. It adds effectively zero restriction to the fuel vent system, even on high-flow setups using dump cans and competition fuel cells.
How long does the activated carbon last?
Under normal conditions, the activated carbon lasts for years. The carbon adsorbs fuel vapour, not liquid fuel. In a properly functioning vent system where only vapour passes through the canister, the carbon has an extremely long service life. Radium's 150-micron strainer and baffle design also prevents carbon degradation from vibration.
Can I mount it in any orientation?
Yes. The canister can be mounted vertically or horizontally. The two drain ports at the bottom (with preinstalled plugs) allow you to drain any condensed fuel regardless of mounting position. For horizontal mounting, position one drain port at the lowest point and consider adding a Petcock Drain Kit.
What size fittings do I need?
The main ports are 16AN ORB (1-5/16"-12) female. You'll need 16AN male fittings and appropriately sized hose for your vent line. The drain ports are 4AN ORB (7/16"-20) female with plugs preinstalled.
Is this legal for road-registered vehicles in Australia?
A charcoal canister is an emissions-reduction device — it captures fuel vapour that would otherwise vent to atmosphere. Installing one does not create any compliance issue. However, if you've deleted the factory EVAP system, the legality of that deletion depends on your state's regulations regarding emissions equipment removal. The canister itself is always a net positive for emissions compliance.
