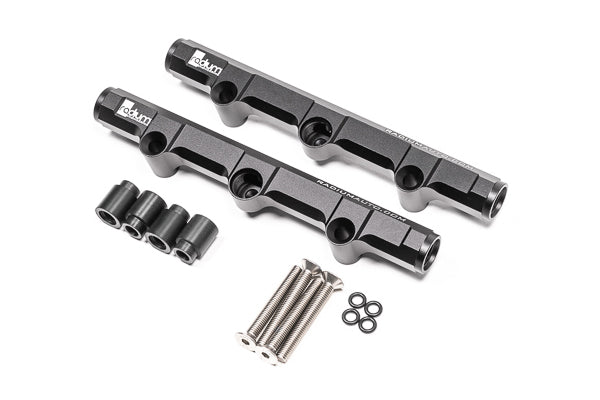

Radium Engineering Fuel Rails, Top Feed Upgrade – Subaru Phase-II EZ30/EZ36

These high-performance Radium Engineering fuel rails are designed for Subaru’s Phase-II EZ30 and EZ36 flat-6 engines. With precision-machined 11 mm injector ports and thermal insulating spacers, they support increased fuel flow while minimising heat soak. Each rail features three 8AN ORB ports to accommodate a variety of plumbing configurations and fuel accessories.

Optimised for clearance with AVCS components, the rails retain full OEM functionality without modifications. For the front RH port, Radium recommends using an 8AN ORB plug (P/N: 14-0150) due to its proximity to the AVCS solenoid.

Key Features:

• Direct bolt-on for Phase-II EZ30 and EZ36 engines

• Three 8AN ORB ports per rail for flexible plumbing

• Compatible with factory fuel injectors (11 mm upper O-ring)

• Black anodised aluminium with laser-etched branding

• Thermal insulating spacers reduce heat transfer

• Fully E85 and alternative fuel compatible

Vehicle Compatibility:

• 04–09 Subaru Legacy 3.0R

• 04–09 Subaru Outback 3.0R

• 10–19 Subaru Legacy 3.6R

• 10–19 Subaru Outback 3.6R

• 06–14 Subaru Tribeca
