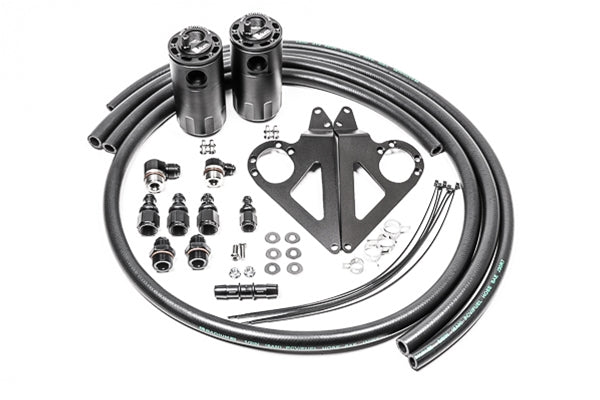

Radium Engineering Fluid Lock Dual Catch Can Kit – BRZ/GT86

This Radium Engineering Fluid Lock Dual Catch Can Kit is a direct-fit solution for the Subaru BRZ and Toyota GT86. Designed for high-performance applications, this system includes both PCV and CCV catch cans to capture harmful oil vapours and blow-by contaminants before they enter the intake tract. It comes complete with pre-cut hoses, anodised fittings, laser-cut mounting brackets, and all required hardware for a seamless installation.

Overview:
The dual catch can configuration covers both sides of the crankcase ventilation system—PCV and CCV. The PCV side mounts to the right-hand side of the engine bay and operates during idle and part-throttle, while the CCV side mounts on the left and functions under high load. Together, they maintain cleaner intake air, promote consistent performance, and reduce carbon build-up on intake valves, especially on direct-injection engines.

Key Features:

• Dual catch can system (PCV and CCV)

• Sealed, emissions and motorsport compliant

• Internal baffling for efficient oil separation

• Fluid Lock quick-disconnect fittings for a tool-free install

• Pressure-sealed—safe for turbocharged/supercharged setups

• Anodised aluminium construction

• Integrated dipsticks for easy servicing

• Direct bolt-on installation, no cutting or drilling required

Specifications:

• Capacity (each can): 207 mL

• Height (without fittings): 12.7 cm

• Outside Diameter: 6.2 cm

Vehicle Compatibility:

• 2013–2020 Subaru BRZ

• 2013–2020 Toyota GT86
