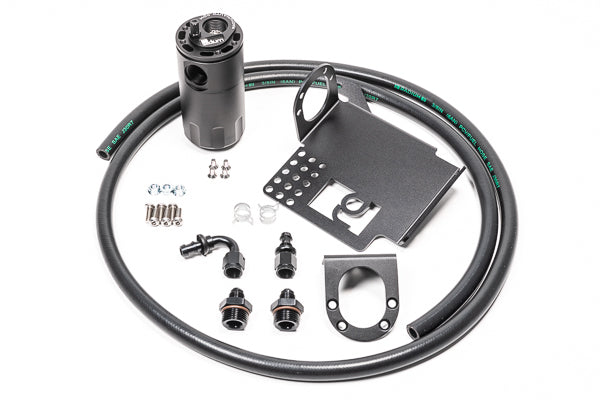

Radium Engineering PCV Catch Can Kit Fluid Lock Honda S2000 (AP1/AP2)

Radium Engineering PCV Catch Can Kit Fluid Lock - Honda S2000 (AP1/AP2)

Radium Engineering builds some of the most precisely engineered catch can systems available for serious performance builds. CNC-machined from billet aluminium and manufactured to motorsport-grade tolerances, Radium catch cans are trusted by tuners and race teams running high-power builds worldwide. This PCV catch can kit keeps oil vapour and crankcase blow-by out of the intake system on the Honda S2000, protecting combustion efficiency and keeping intake valves clean under hard use.

This listing covers the Radium Engineering PCV Catch Can Kit Fluid Lock (SKU: 20-0098-FL) for the Honda S2000 AP1 (1999–2004) and Honda S2000 AP2 (2005–2009). This kit addresses the PCV circuit specifically. Radium also offers the Crankcase Catch Can Kit 20-0097-FL and the complete Dual PCV/Crankcase Kit 20-0099-FL, both sold separately.

Important: This kit is designed for 2000–2009 RHD models and 2006–2009 LHD models. It is not compatible with 2000–2005 LHD Honda S2000 vehicles unless the cruise control module is removed.

Key Features

• Billet aluminium catch can with integrated condenser and dipstick — O-ring sealed for pressure-safe use in boosted applications
• Closed-loop system — does not vent to atmosphere, making it emissions and track legal
• Runs inline with the PCV valve to capture oil vapour at idle, cruise, and deceleration before it reaches the intake manifold
• S2000-specific laser-cut, powder-coated mounting bracket for a clean, direct fit
• Anodised aluminium 8AN hose ends and adapter fittings included
• Sufficient length of 1/2" PCV rubber hose for custom routing
• Vacuum and heater hose included to replace the OEM metal hard tube loom
• Stainless steel mounting hardware
• No cutting, drilling, or fabrication required
• Compatible with E85, pump petrol, and flex fuel

Specifications

• Capacity: 207 mL (7 fl oz)
• Height (without fittings): 127 mm (5 in)
• Outside diameter: 62 mm (2.45 in)
• Port size: 10AN ORB (large ports), 4AN ORB drain
• Separation: 2-step oil separation baffling
• Material: CNC-machined billet aluminium
• SKU: 20-0098-FL

Vehicle compatibility, fitment notes, and configuration details are provided in the tabs above. Please confirm your vehicle's year, trim level, and drive configuration before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
