Radium Engineering Fuel Rail

RADIUM Engineering Fuel Rail – Ford Falcon XR6 Turbo (FG/FG-X)

The Radium Engineering Fuel Rail is a high-performance upgrade designed specifically for the Ford Barra engine found in the FG and FG-X Falcon Turbo. Precision CNC machined from extruded 6063 aluminium, this rail is finished in a durable black anodised coating with laser-etched branding for a premium aesthetic and superior corrosion resistance.

Engineered to support high-horsepower builds, the rail features a massive 0.69" (17.5mm) internal bore, significantly increasing fuel volume and damping pulses to ensure consistent fuel delivery across all injectors. Both ends of the rail are tapped with 8AN ORB ports, providing the flexibility needed for custom fuel system plumbing. The design allows for ample clearance around the ports to accommodate essential accessories such as fuel pressure regulators, gauges, or fuel pulse dampers.

Key Features

• High-Flow Design: Large 0.69" internal bore provides optimal fuel flow and acts as a buffer against fuel pressure drops.
• Premium Construction: CNC machined from extruded 6063 aluminium for maximum strength and weight reduction.
• 8AN ORB Ports: Tapped for 8AN ORB fittings at both ends, allowing for a wide variety of plumbing configurations.
• High-Quality Finish: Black anodised and laser-etched for a sleek look that withstands the harsh engine bay environment.
• Bolt-On Hardware: Includes application-specific mounting brackets and stainless steel hardware for a secure installation.
• Custom Application Ready: Ideal for enthusiasts building custom fuel systems requiring reliable, high-volume delivery.

Specifications

• Material: 6063 Aluminium
• Finish: Black Anodised / Laser Etched
• Internal Bore: 0.69"
• Port Thread: 8AN ORB
• Part Number: 20-0536-02

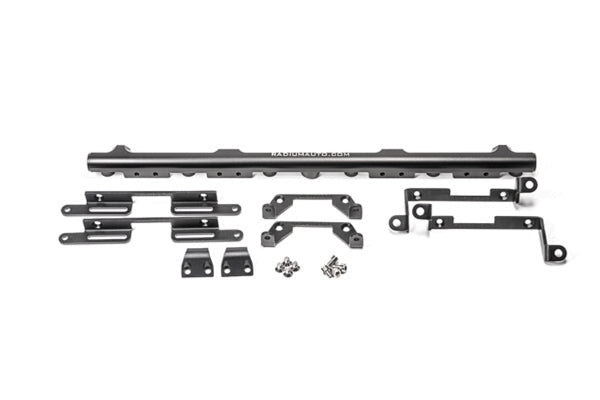

What’s Included

• 1 x Radium Fuel Rail (Black Anodised)
• 2 x FG Turbo Specific Mounting Brackets
• 2 x Black Anodised Feed Hose Clamps
• Stainless Steel Mounting Hardware Set

Note: Fuel fittings, injectors, and fuel pressure regulators are sold separately. Appropriate 8AN ORB fittings must be selected to suit your specific fuel line setup.
