Radium Engineering Dual PCV/Crankcase Fluid Lock Catch Can Kit Honda S2000 (AP1/AP2)

Radium Engineering Dual PCV/Crankcase Fluid Lock Catch Can Kit — Honda S2000 AP1/AP2 1999–2009

Radium Engineering builds some of the most trusted crankcase management solutions in the performance world, and this dual catch can kit is no exception. CNC-machined from billet aluminium to motorsport tolerances, Radium's catch cans are a staple in serious Honda S2000 builds — from street-driven daily drivers to full race cars running boost and E85. Where generic catch cans cut corners, Radium delivers precision fitment, pressure-sealed construction, and genuine closed-loop operation that keeps your engine protected without compromising emissions or track legality.

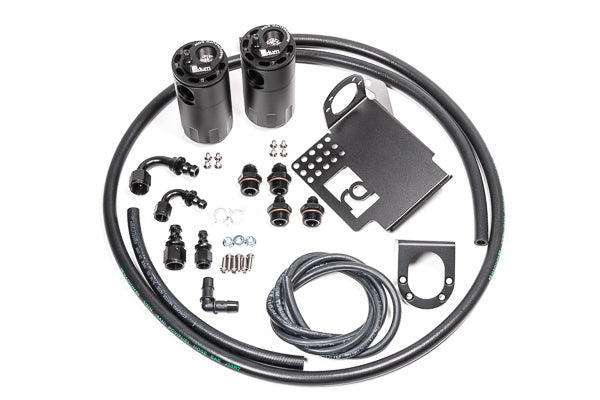

This listing covers the Radium Engineering 20-0099-FL Dual PCV/Crankcase Fluid Lock Catch Can Kit, designed to suit the Honda S2000 AP1 (1999–2004) and Honda S2000 AP2 (2005–2009). This kit combines both the 20-0097 PCV Catch Can and the 20-0098 Crankcase Catch Can into one complete solution. Individual kits are also available separately — see the part numbers section below.

Note: For turbocharged or supercharged S2000 builds, the crankcase catch can (20-0098) is especially critical — oil accumulation in the intercooler significantly reduces heat exchange efficiency. Both cans are pressure-sealed, so no check valve is required when connecting to the intake manifold.

How It Works

The two catch cans target different stages of crankcase breathing. The PCV Catch Can (20-0097) sits inline with the 3/8" PCV valve, intercepting oil vapour and sludge that would otherwise be drawn into the intake manifold under idle, light cruise, and deceleration. The Crankcase Catch Can (20-0098) runs inline with the 1/2" valve cover breather port, catching blow-by vapours and unspent fuel that would otherwise enter the intake pipe under wide-open-throttle conditions. Both operate as closed-loop systems — no venting to atmosphere — so clean, filtered air is returned to the engine to maintain negative crankcase pressure.

Key Features

• Billet aluminium catch cans with integrated condenser and dipstick for easy monitoring
• Capacity: approximately 177 mL (6 fl oz) per can
• Can height (without fittings): 127 mm (5 in)
• Can outside diameter: 62 mm (2.45 in)
• Large 10AN ORB inlet/outlet ports with 4AN ORB drain port
• Two-stage internal oil separation baffling
• O-ring sealed dipstick for pressure-safe operation
• S2000-specific laser-cut powder-coated mounting bracket included
• Universal laser-cut powder-coated mounting bracket also included
• Anodised aluminium -6AN and 8AN hose ends and adapter fittings
• 3/8" and 1/2" PCV rubber hose with sufficient length for custom routing
• Vacuum and heater hose to eliminate OEM metal hard tube loom
• Stainless steel mounting hardware and OEM-style spring hose clamps
• Bolt-on fitment — no cutting, drilling, or fabrication required
• Pressure-sealed design suits boosted applications; compatible with E85, pump petrol, and flex fuel
• Emissions and track legal closed-loop operation
• Manufactured in the USA to motorsport-grade tolerances

Part Numbers

• 20-0099-FL — Dual PCV/Crankcase Fluid Lock Catch Can Kit, Honda S2000 AP1/AP2 (this listing)
• 20-0097 — PCV Catch Can Kit (sold separately)
• 20-0098 — Crankcase Catch Can Kit (sold separately)

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your vehicle's year, chassis code, and any modifications before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
