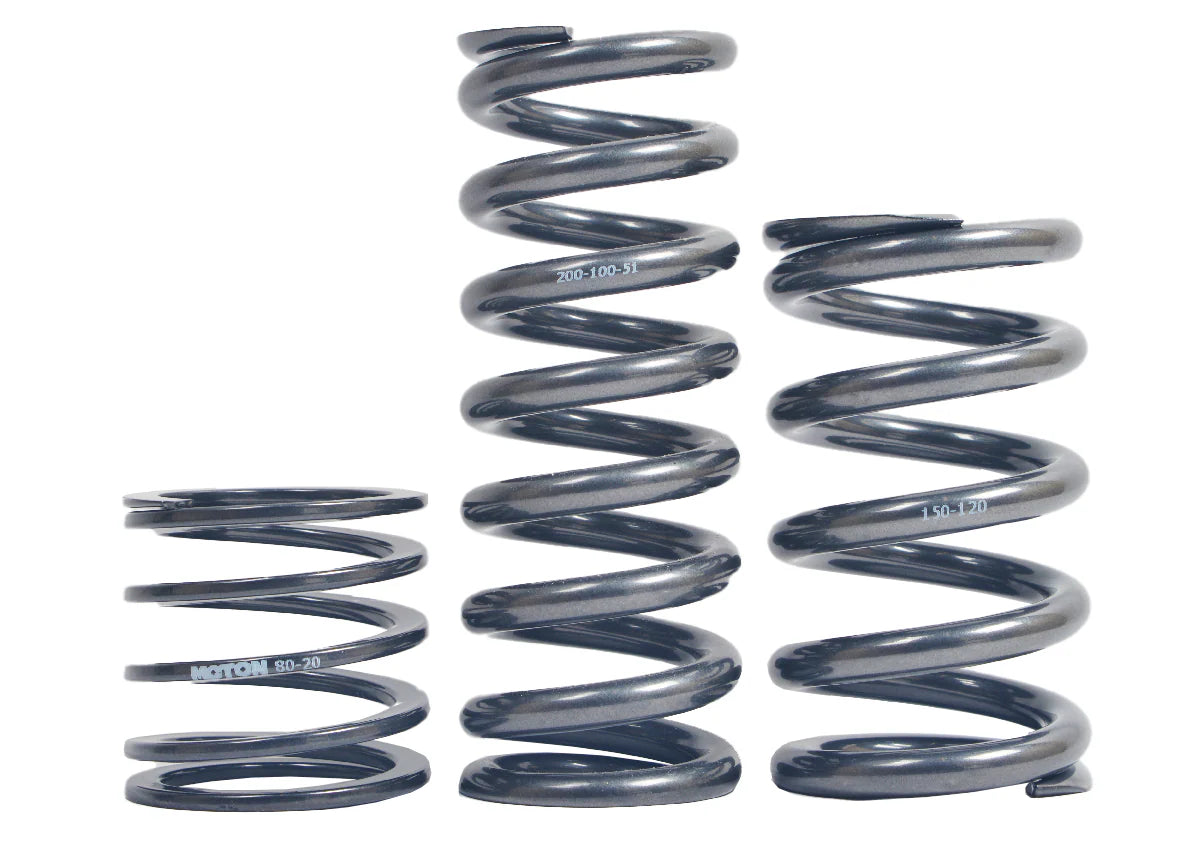

MOTON Linear Racing Springs – 160 Series (160mm x 61mm ID)
MOTON Suspension Logo

MOTON Linear Racing Springs – 160 Series (160mm x 61mm ID)

$250.00
SKU: AST-160-50-61
Spring Spec – Length | Rate | ID:160/50/61
Available to Order
Estimated shipping: 2 - 3 Weeks
Need it sooner? Contact us and we’ll see what we can do.

Moton Linear Racing Springs

Premium 160-Series Replacement Springs (61mm ID)

Engineered for professional motorsport, these 160mm length linear-rate springs provide the consistency required for high-level chassis tuning. Manufactured from high-tensile chrome silicone steel, they offer maximum travel with minimal weight, ensuring your Moton or AST coilovers perform at their peak.

Lo Open Length (mm)
R Spring Rate (N/mm)
Di Inside Diameter (mm)
Sn Block Length (mm)
Fn Force at Block (N)
St Usable Stroke (mm)
Part Number Lo R Di Sn Fn St
AST-160-50-61 160 50 60 58 5100 102
AST-160-60-61 160 60 60 61 5940 99
AST-160-70-61 160 70 60 65 6650 95
AST-160-80-61 160 80 60 70 7200 90
AST-160-90-61 160 90 60 69 8190 91
AST-160-100-61 160 100 60 75 8500 85
AST-160-110-61 160 110 60 75 9350 85
AST-160-120-61 160 120 60 76 10080 84
AST-160-130-61 160 130 60 77 10790 83
AST-160-140-61 160 140 60 78 11480 82
AST-160-150-61 160 150 60 80 12000 80
AST-160-160-61 160 160 60 81 12640 79
AST-160-170-61 160 170 60 83 13090 77
AST-160-180-61 160 180 60 85 13500 75
AST-160-190-61 160 190 60 87 13870 73
AST-160-200-61 160 200 60 89 14200 71
