HKS S-Type Oil Cooler Kit – Subaru BRZ (FA20)

The HKS Oil Cooler Kit for the Toyota 86 ZN6 and Subaru BRZ ZC6 (NA engine) is a redesigned, cost-effective solution for managing oil temperatures during spirited and circuit driving. The kit installs easily with no major chassis modification and includes everything required for a complete bolt-on fit.

Product Overview

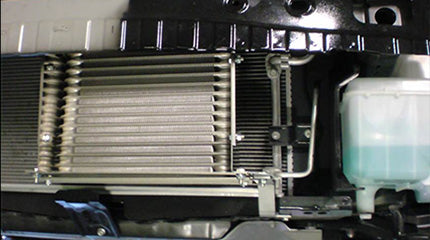

This kit mounts the oil cooler core in front of the radiator for strong cooling efficiency. Pre-assembled hoses, brackets, and an air guide simplify installation. A special spacer and centre bolt are included so the oil cooler attachment can be installed cleanly without modifying the oil filter mounting area.

The 15-layer core offers improved cooling performance in a compact design, suitable for NA engines that regularly experience elevated oil temperatures on track.

Key Features

• Easy installation with no major modification required

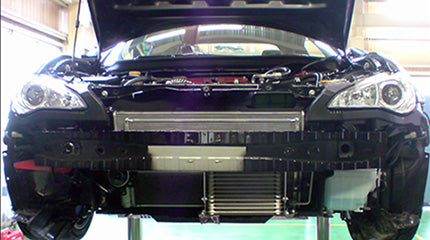

• Oil cooler core positioned in front of the radiator for efficient cooling
• Pre-assembled hoses, brackets, and air guide for simple setup
• Dedicated spacer and centre bolt for perfect fitment
• Thin 15-layer core improves cooling and fitment
• Designed exclusively for NA (naturally aspirated) engines

Compatibility Notes

This kit is for NA engines only.

• For GT2 Supercharger Pro: use Code No. 15004-AT112
• For Bolt-On Turbo Kits GTIII-RS / GT4525 / GT4135: use Code No. 15004-AT112 (2016/08–2021/10) or 15004-AT111 (2012/04–2016/07)

Included in the Kit

• Oil cooler core
• S-type oil cooler attachment
• Spacer
• Centre bolt
• Banjo fittings and banjo bolts
• Bracket
• Air guide
• Accessory hardware

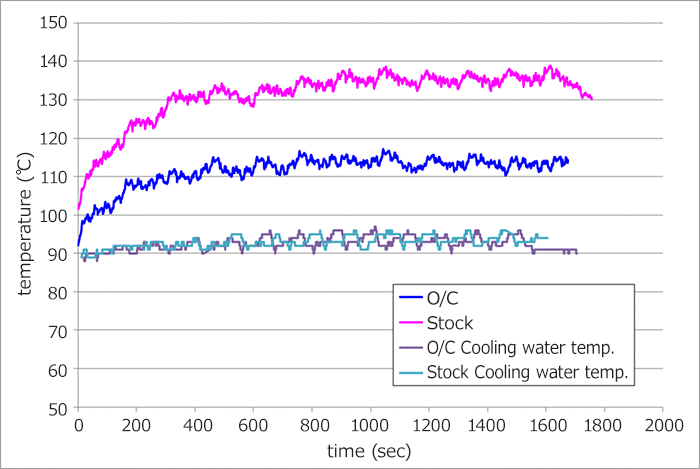

HKS Test Data

Test Vehicle: Toyota 86
Course: Fuji Speedway
Ambient Temp: 27°C

Without an oil cooler, oil temperature reached 140°C within 5 minutes, forcing cool-down laps. With the HKS Oil Cooler Kit, oil temperature stayed around 115°C for a full 30-minute session with no issues.

Installation Manual

Download HKS Install Manual (15004-AT110)
