HKS Power Editor

Overview
The HKS Power Editor is a plug-and-play boost controller designed for the Honda Civic Type R FL5 (2022+). By increasing boost pressure, it delivers noticeable gains in power and torque while maintaining OEM reliability. The Power Editor comes preloaded with boost increase data, but also allows further customisation via HKS Easy Writer software. Installation is simple, connecting directly between the pressure sensor and sensor harness, with a bypass connector included for quick reversion to stock settings.

Key Features

• Plug-and-play installation with factory harnesses
• Pre-programmed boost increase data for instant gains
• Includes bypass connector for easy switch back to stock settings

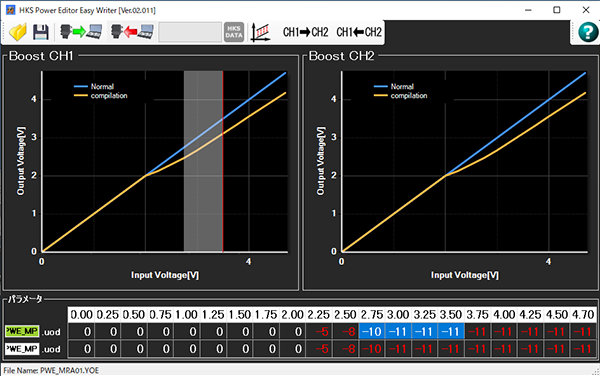

• Supports editing of boost data using HKS Easy Writer software (sold separately)
• Status LED for clear unit operation feedback
• Compatible with stock and HKS-equipped vehicles

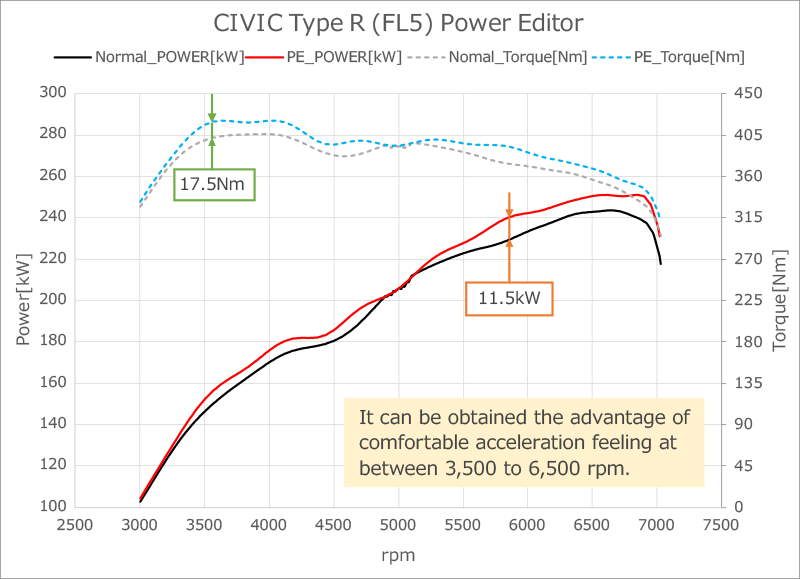

Performance Data (Tested on JDM Honda Civic Type R FL5)

• Maximum Output: 243.3kW (330.7PS) → 251.2kW (341.5PS)
• Maximum Torque: 406.1Nm → 420.5Nm
• Boost Pressure: 134.4kPa (1.37kgf/cm²) → 152.0kPa (1.55kgf/cm²)
• Gains: +11.5kW at 5840rpm / +17.5Nm at 3560rpm

Notes

• Easy Writer software is required to edit preset data (not included)
• USB cable included for PC connection (Windows only)
• Not compatible with reflashed or custom ECU data

Vehicle Compatibility

• Honda Civic Type R FL5 (2022+)
