CSF Racing Dual Engine Oil Cooler Kit – Honda Civic Type R (FL5)

Overview

Drivers regularly experience elevated oil temperatures on the Honda Civic Type R FL5, even in completely stock form — with temperatures climbing even higher on modified vehicles. During testing, CSF recorded oil temperatures exceeding 275°F (135°C) under track conditions, highlighting the need for a dedicated solution.

CSF’s engineering team developed their first-ever complete engine oil cooler kit specifically for the FL5 platform. The result is a fully engineered, motorsport-proven system that delivers significant thermal control while maintaining OEM-level fitment and an aggressive, functional appearance.

Key Features

• Dual high-performance dual-pass oil coolers
• CPE-lined stainless steel braided oil lines
• DYME Pro/Spec motorsport-grade quick-release fittings
• CNC billet sandwich plate with integrated 175–195°F (80–90°C) thermostat
• Oil temperature reduction of up to ~15°F (~8°C)
• Pre-preg carbon fibre bumper vents for maximum airflow
• Laser-cut mounting brackets and ducting components
• Approximately 7 quarts (6.6 litres) total oil capacity
• Designed to pair with the CSF FL5 Performance Radiator for maximum cooling efficiency

Development & Testing

CSF spent over a year developing and validating this kit alongside R&D partners and competitive drivers participating in Global Time Attack (GTA) and GridLife events. Initial validation took place in a controlled dyno environment, followed by extensive real-world track testing under extreme conditions to ensure consistent performance where it matters most.

System Details

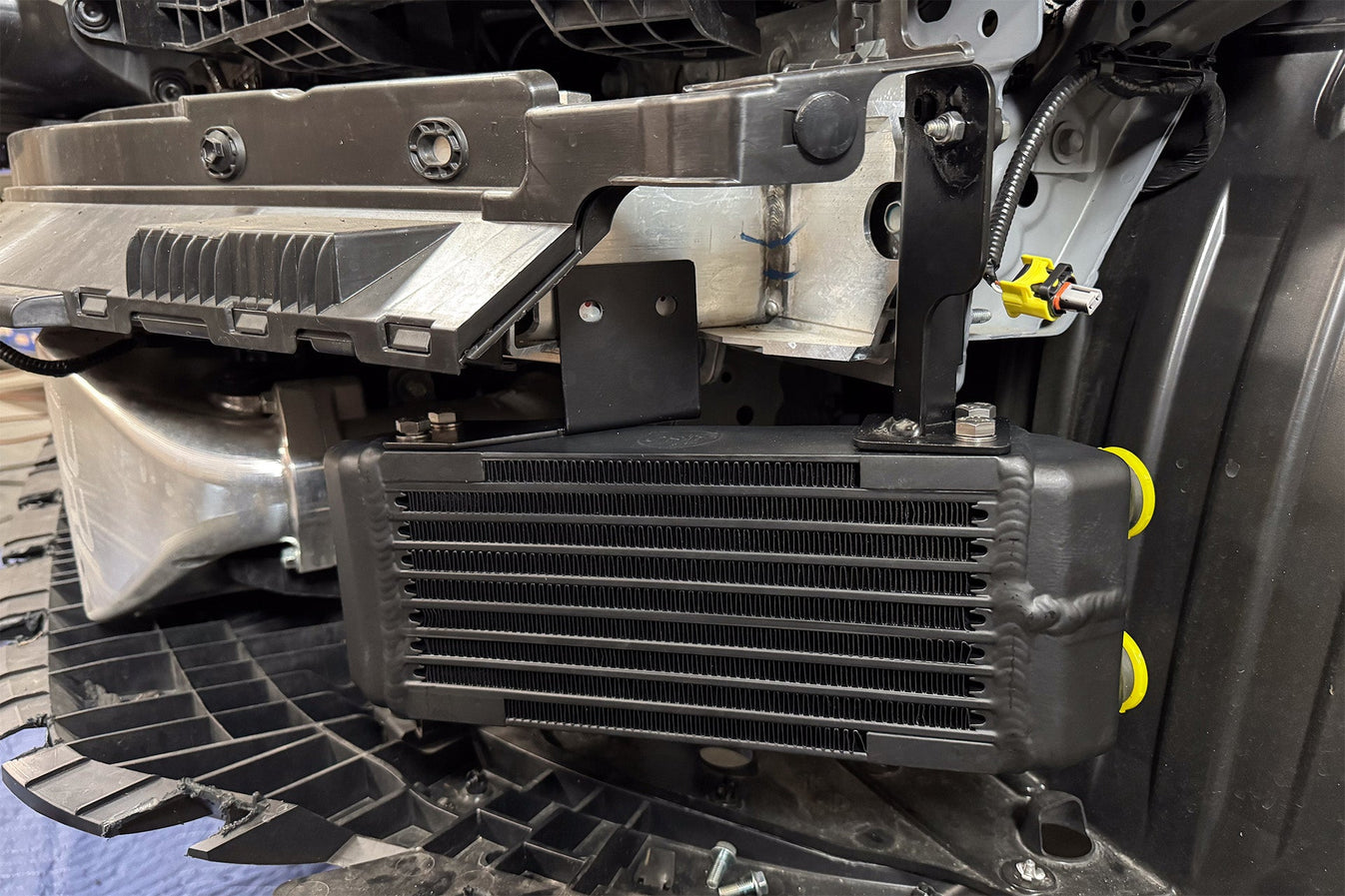

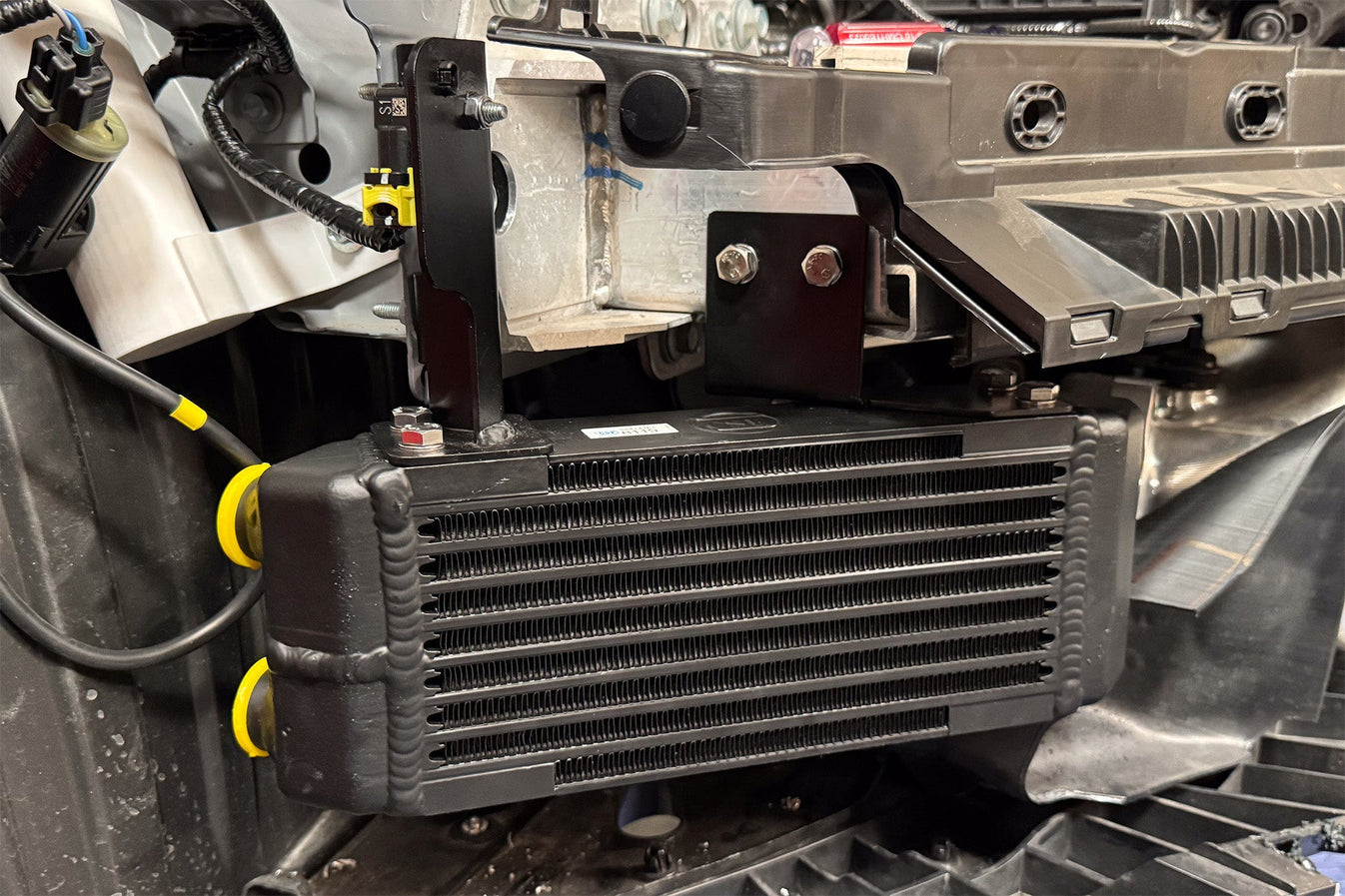

• Two CSF #8119 dual-pass high-performance oil coolers
• Bar-and-plate core construction for maximum strength and durability
• 100% TIG-welded construction pressure tested to 120 PSI
• Smooth 40-degree feed and return fitting design
• Dual-pass flow path for enhanced heat rejection
• Oil capacity increased by over 2 quarts (2 litres)

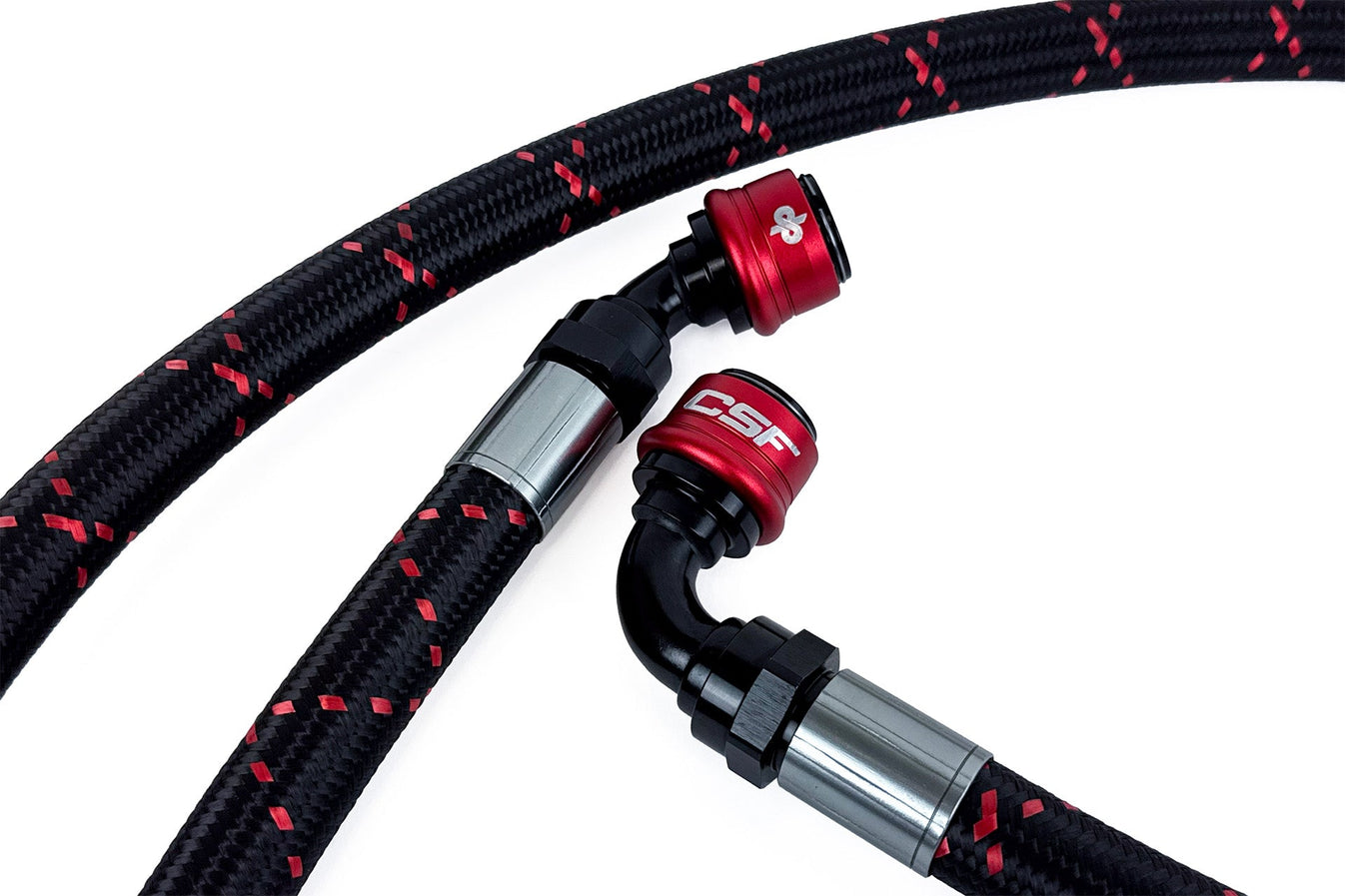

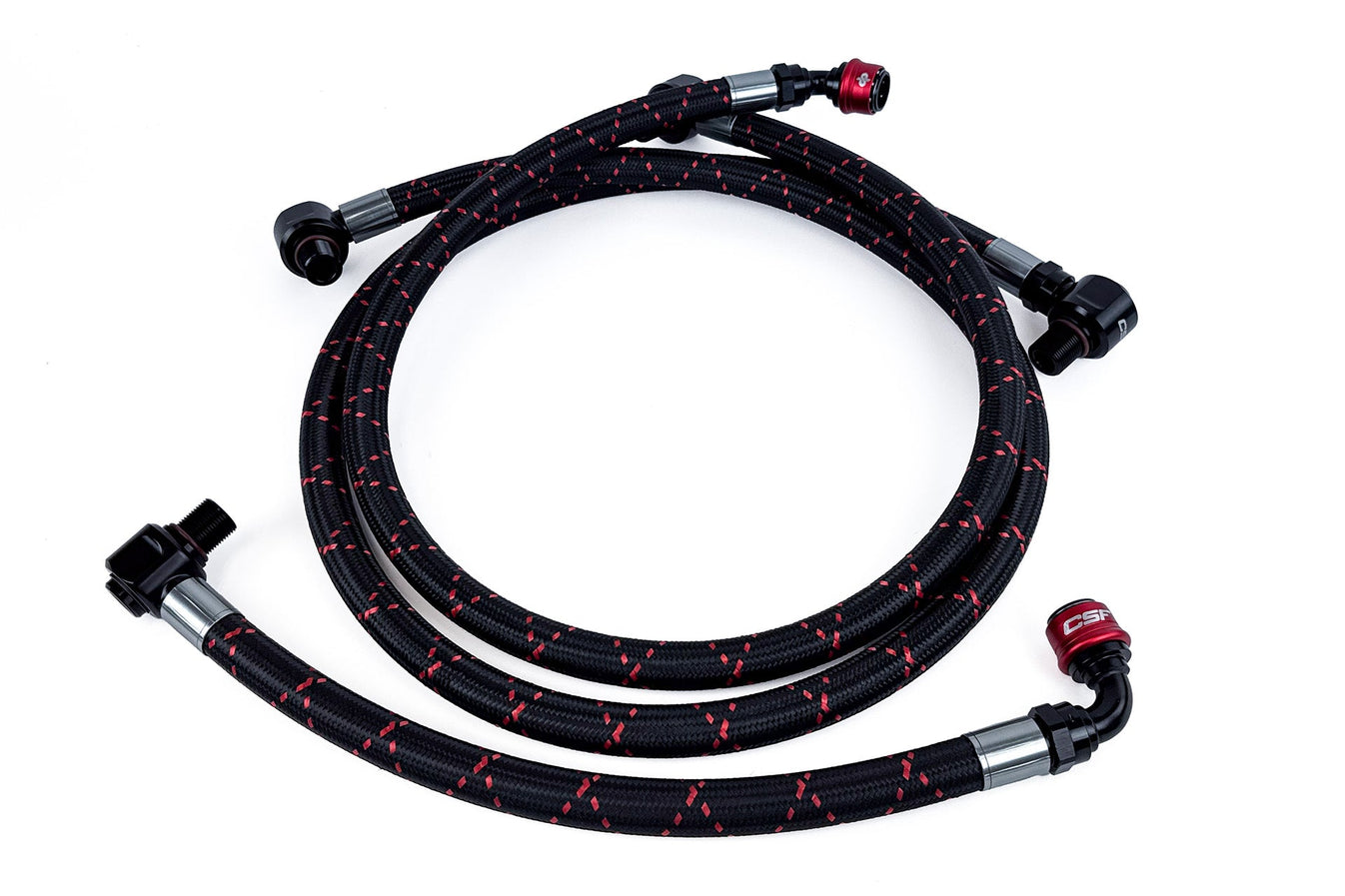

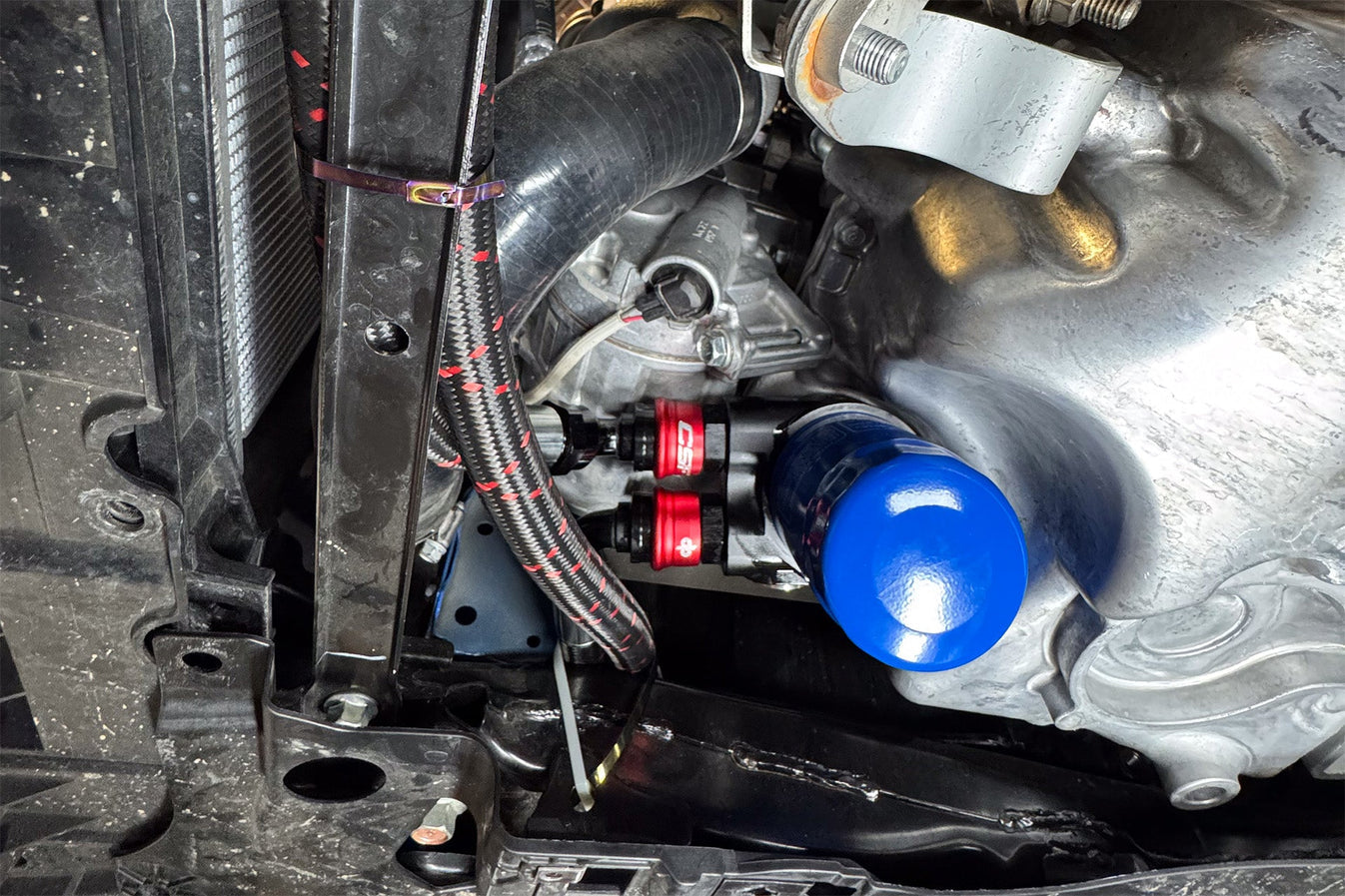

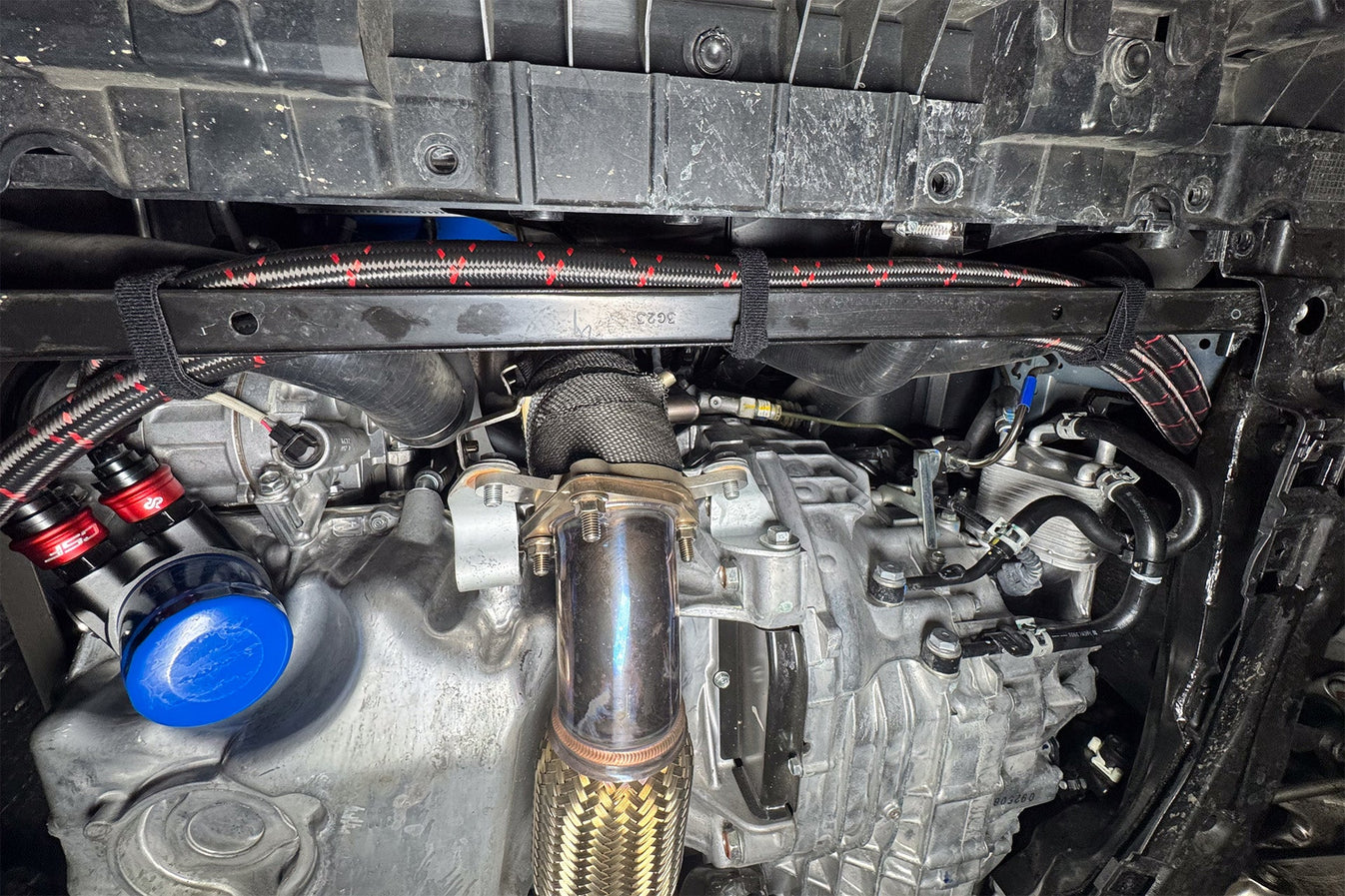

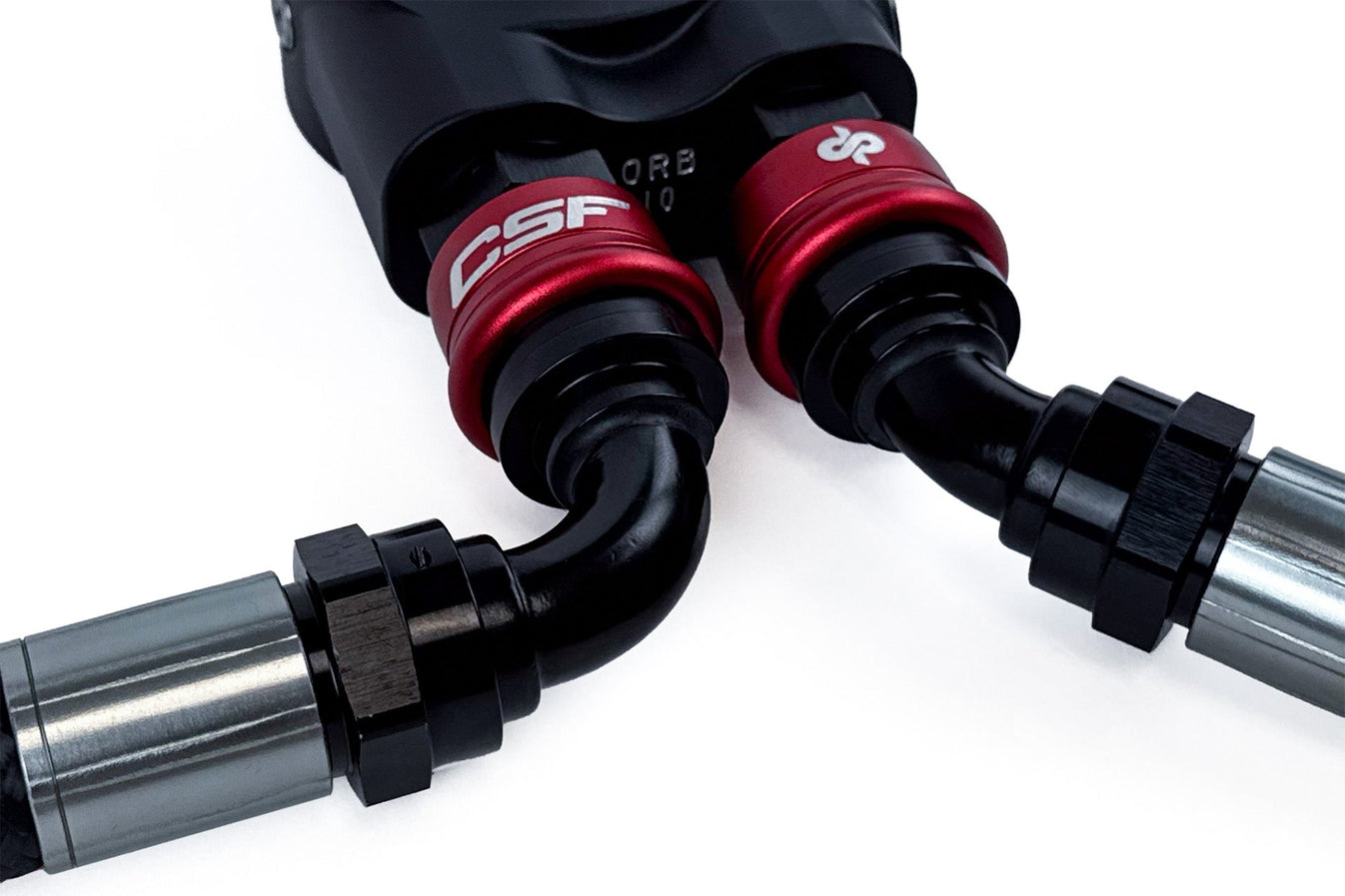

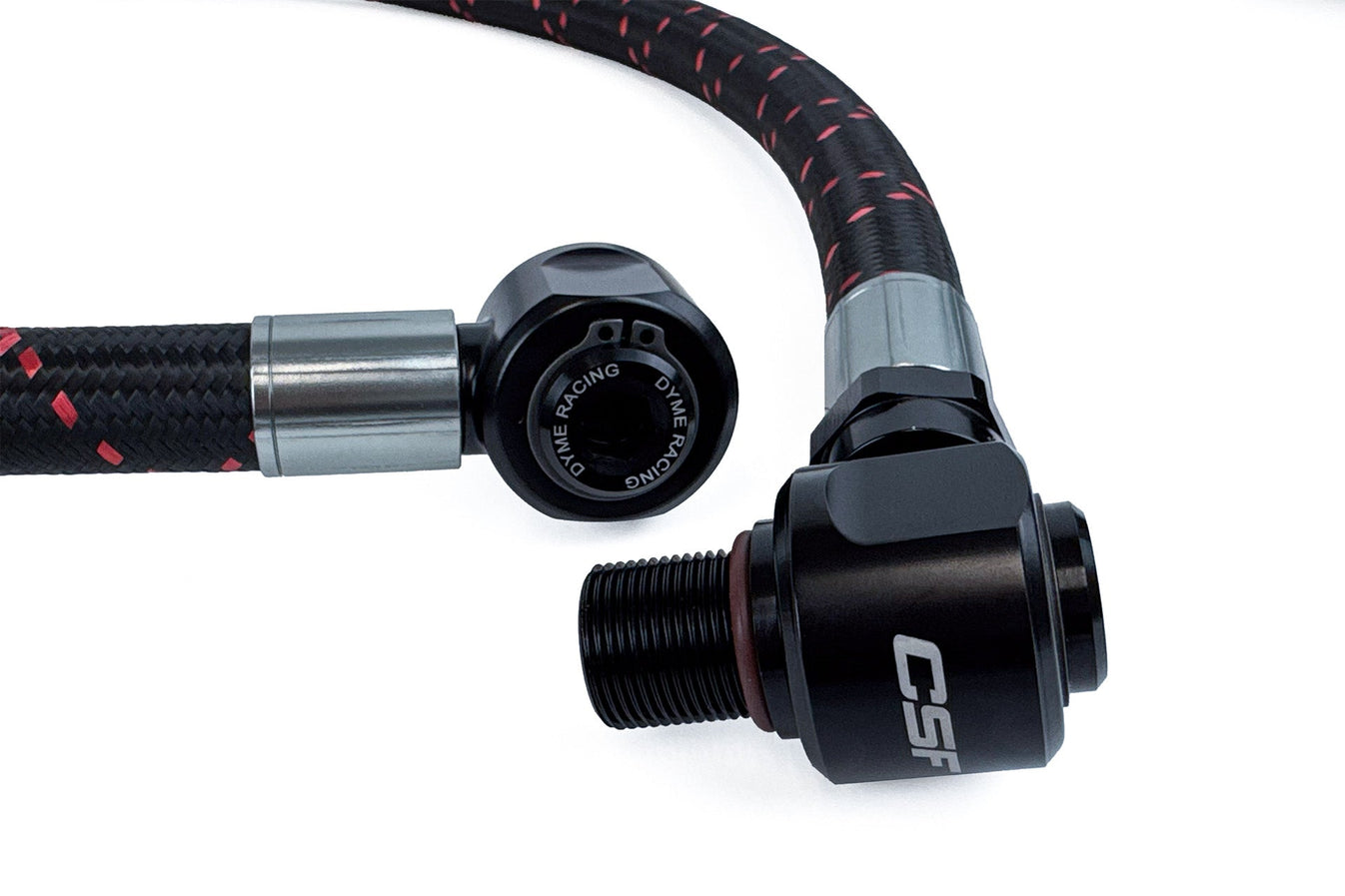

• Motorsport-grade AN oil lines with patented DYME PSI quick-release fittings
• 304 stainless steel reinforcing braid with polyethylene outer braid

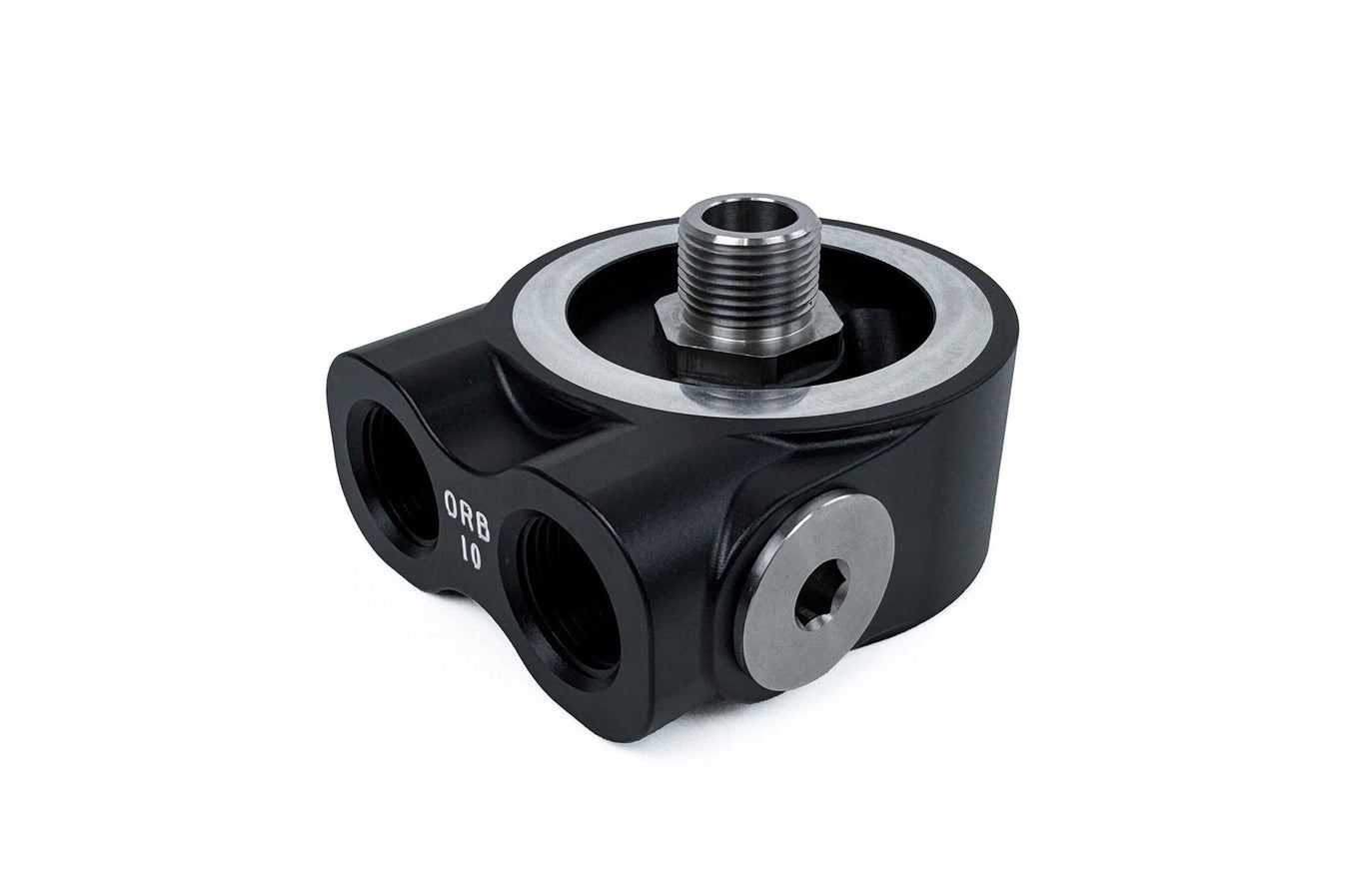

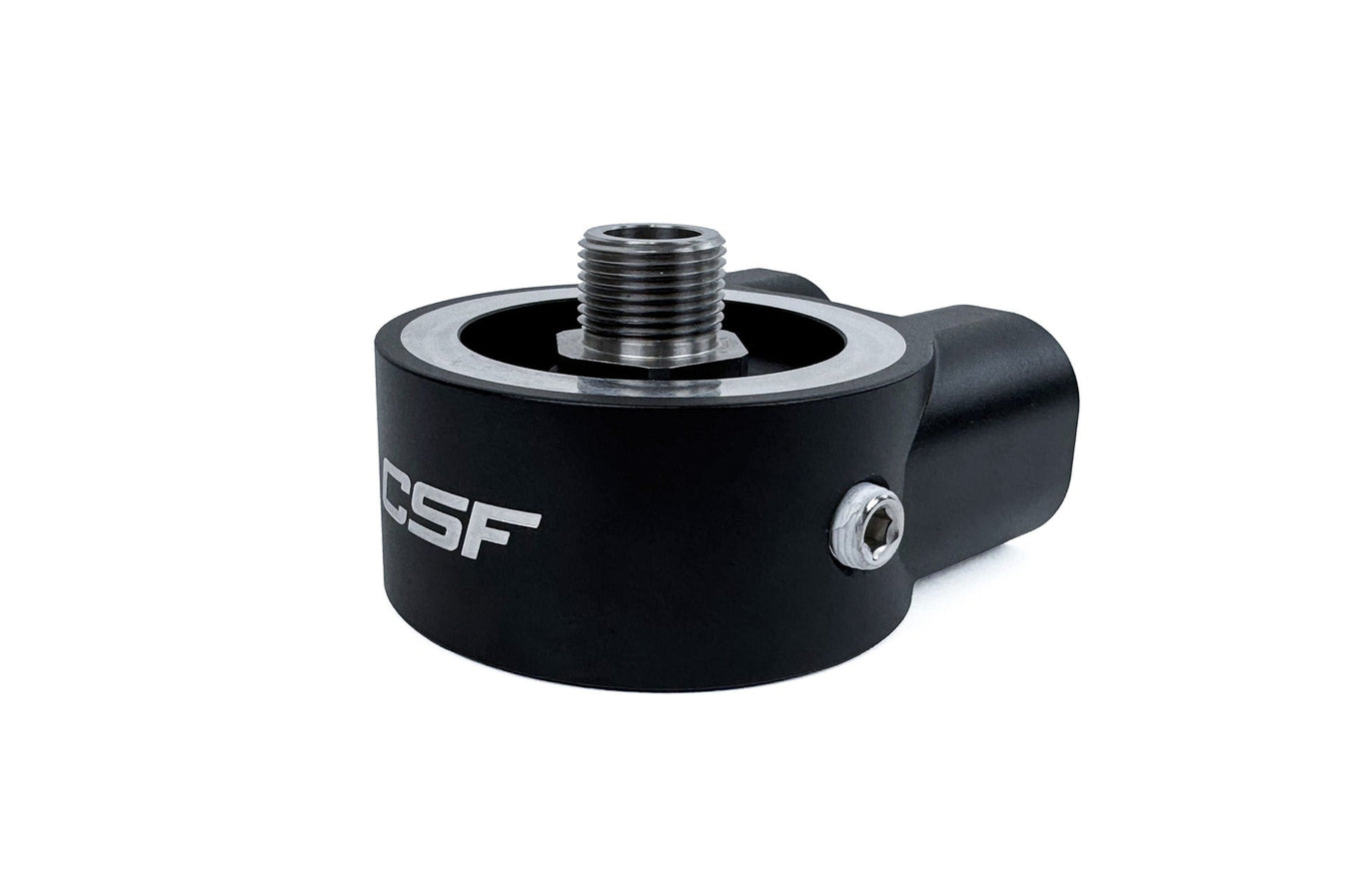

• CNC billet-machined sandwich plate with integrated thermostat and 1/8” NPT oil temperature sensor port

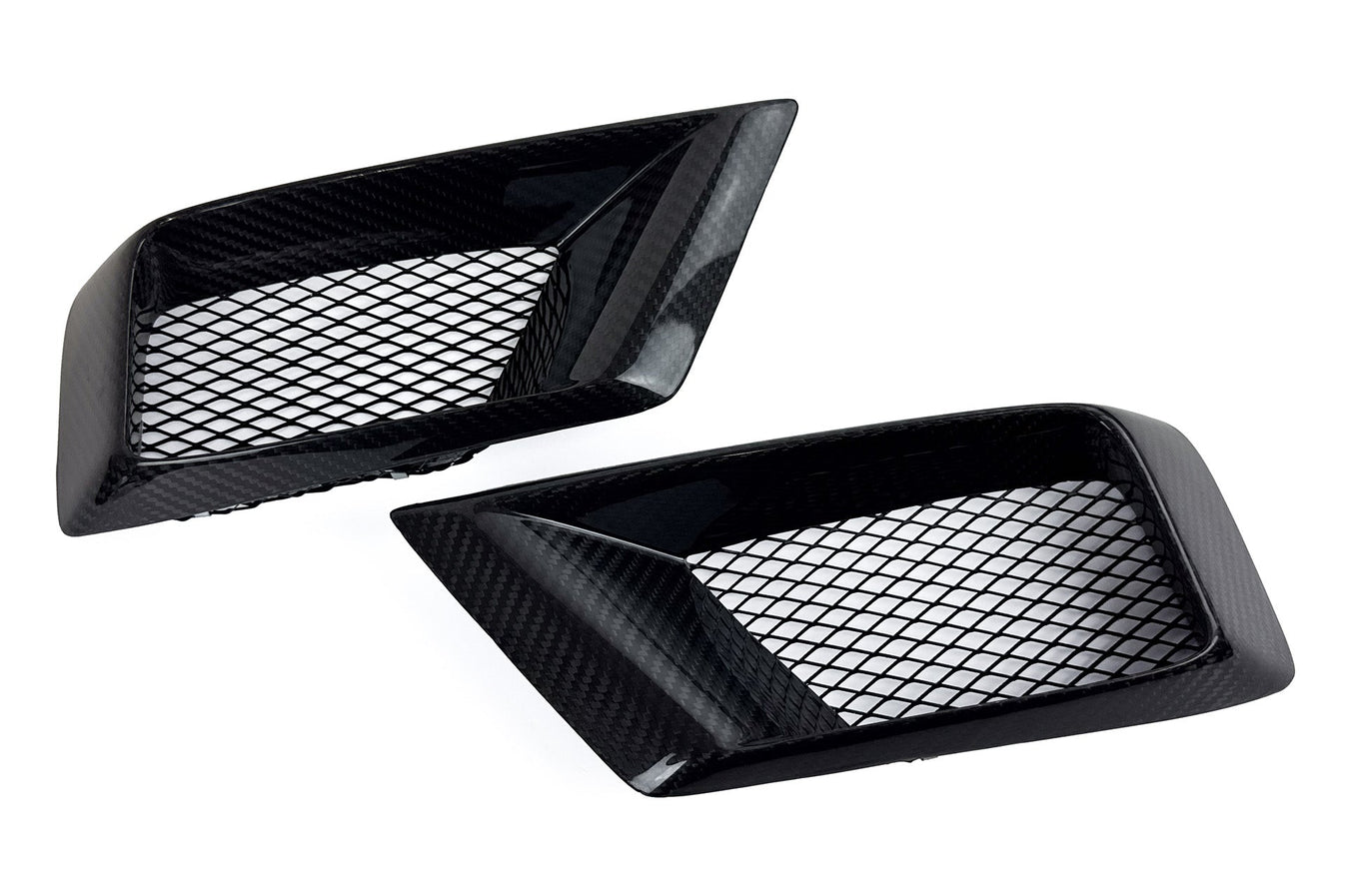

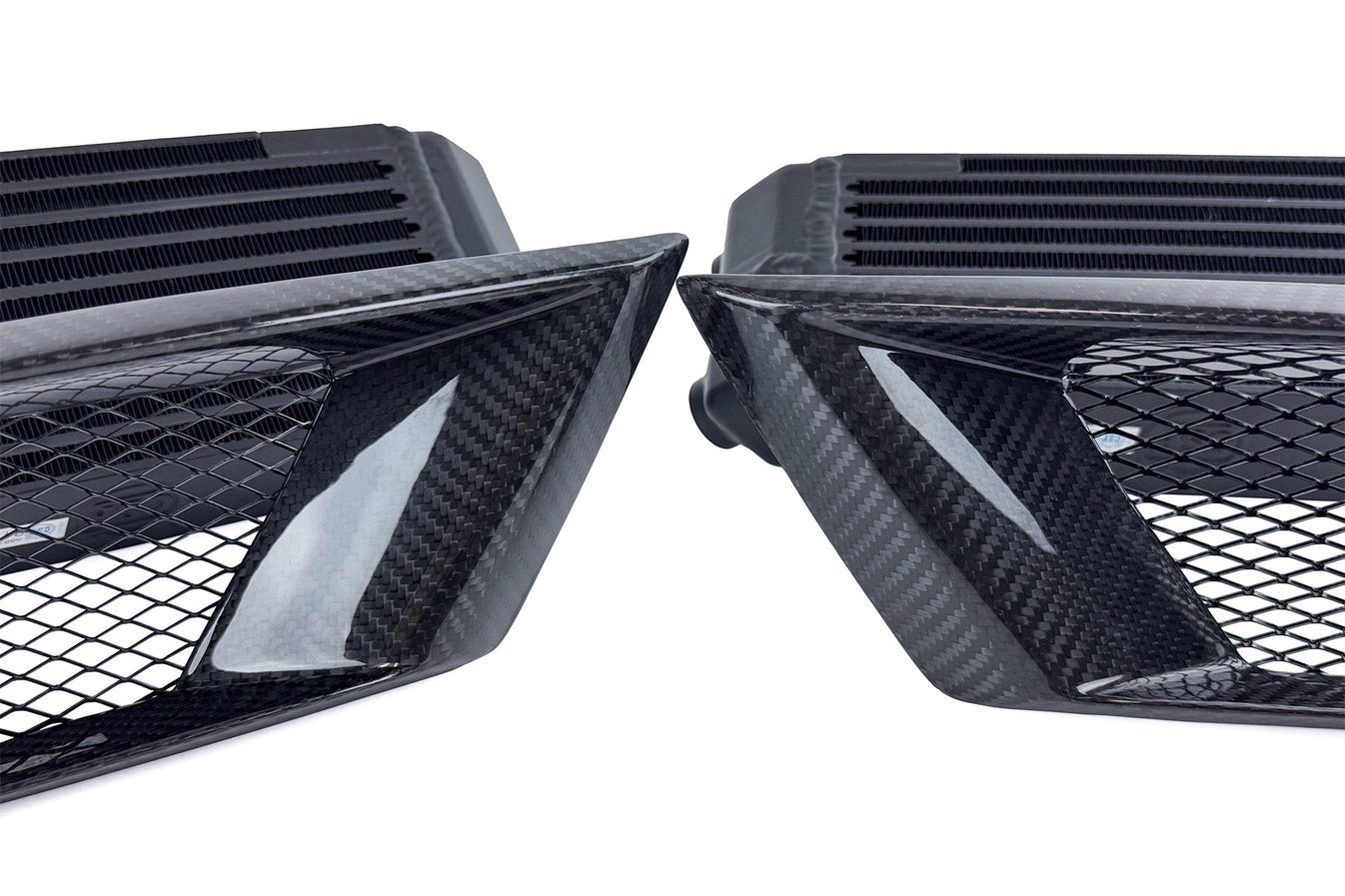

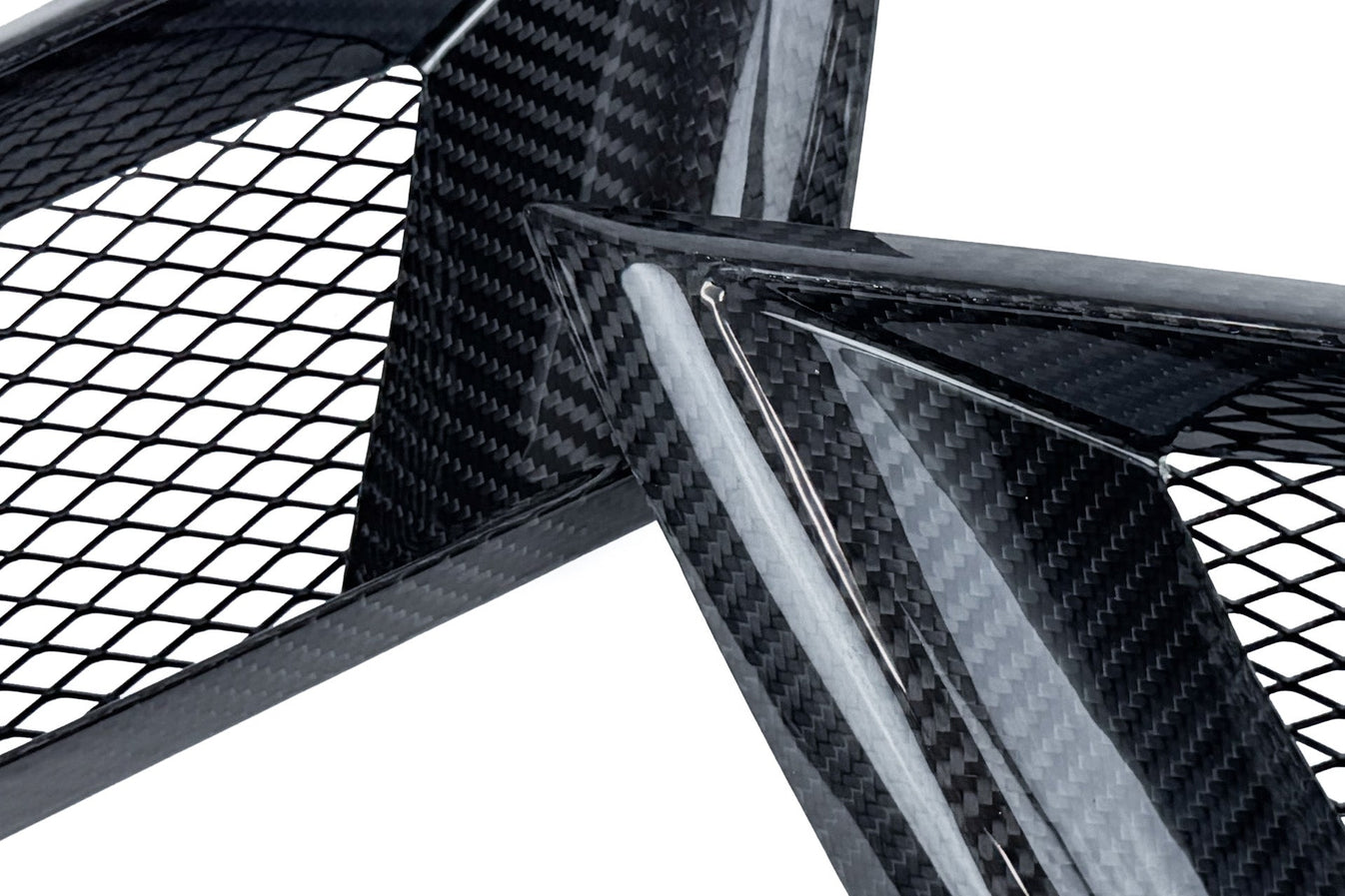

• Pre-preg carbon fibre bumper vents to maximise airflow
• Laser-cut louvered fender liner vents to promote heat extraction

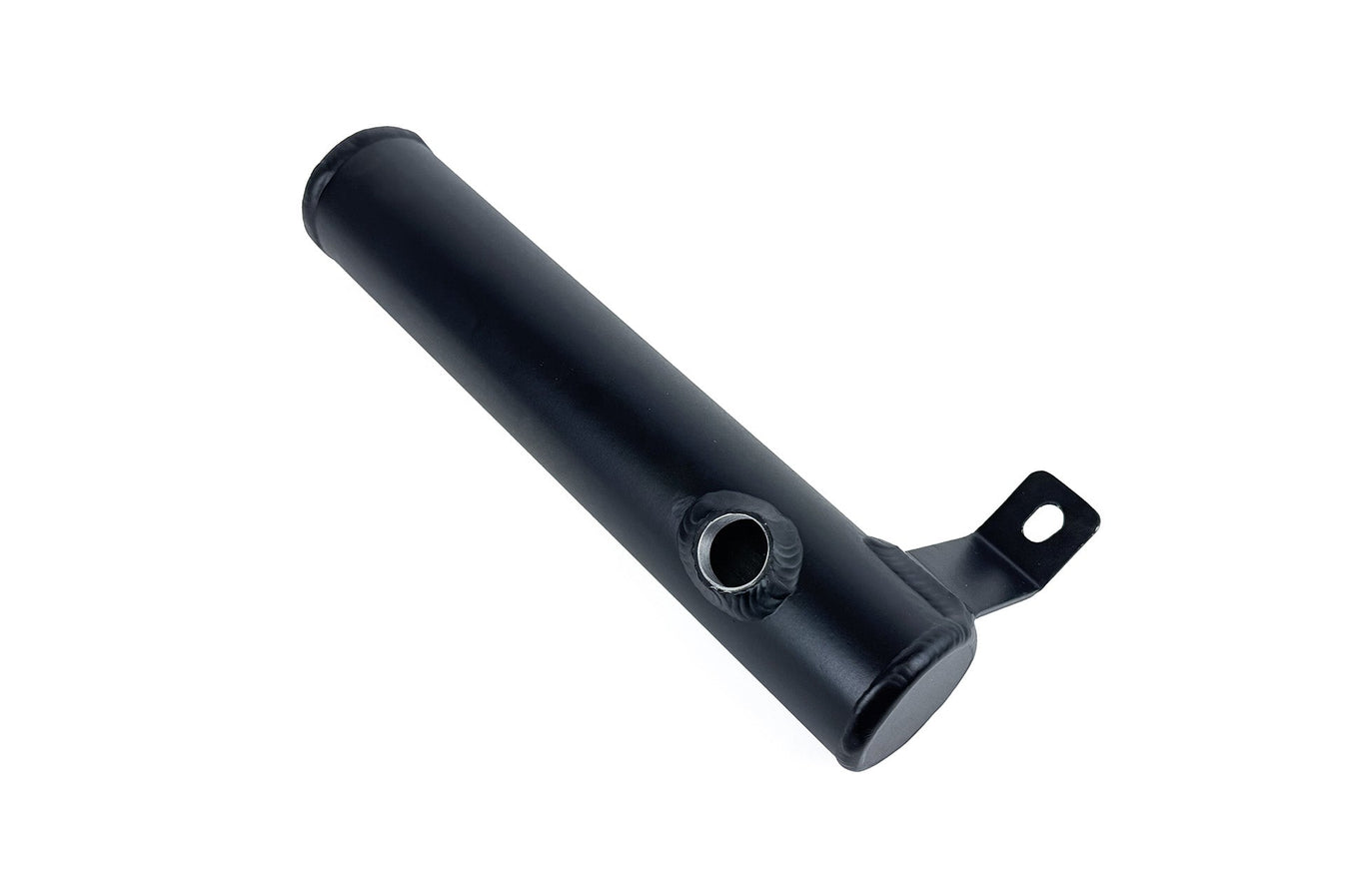

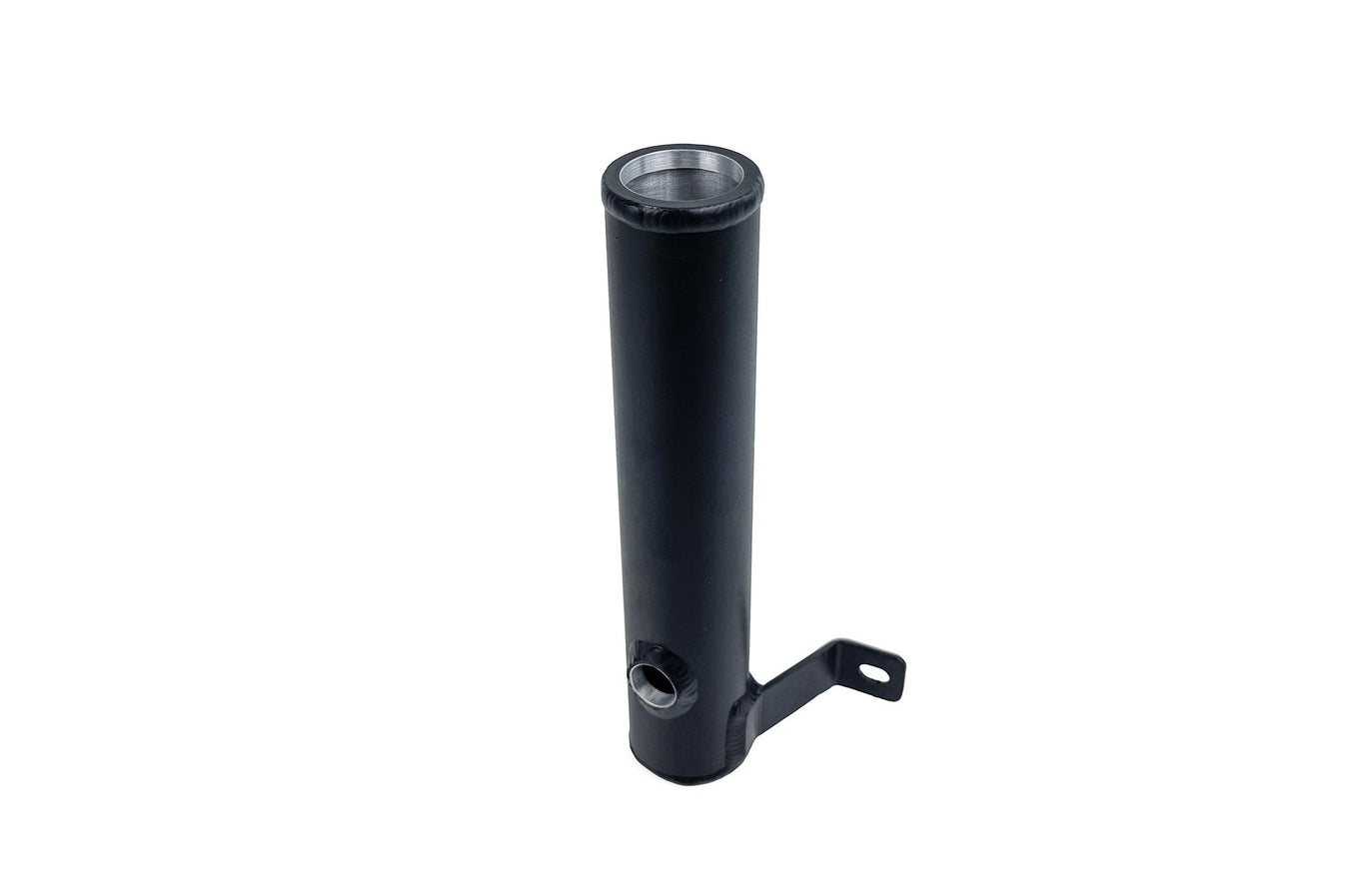

• Replacement washer fluid bottle compatible with factory washer motor

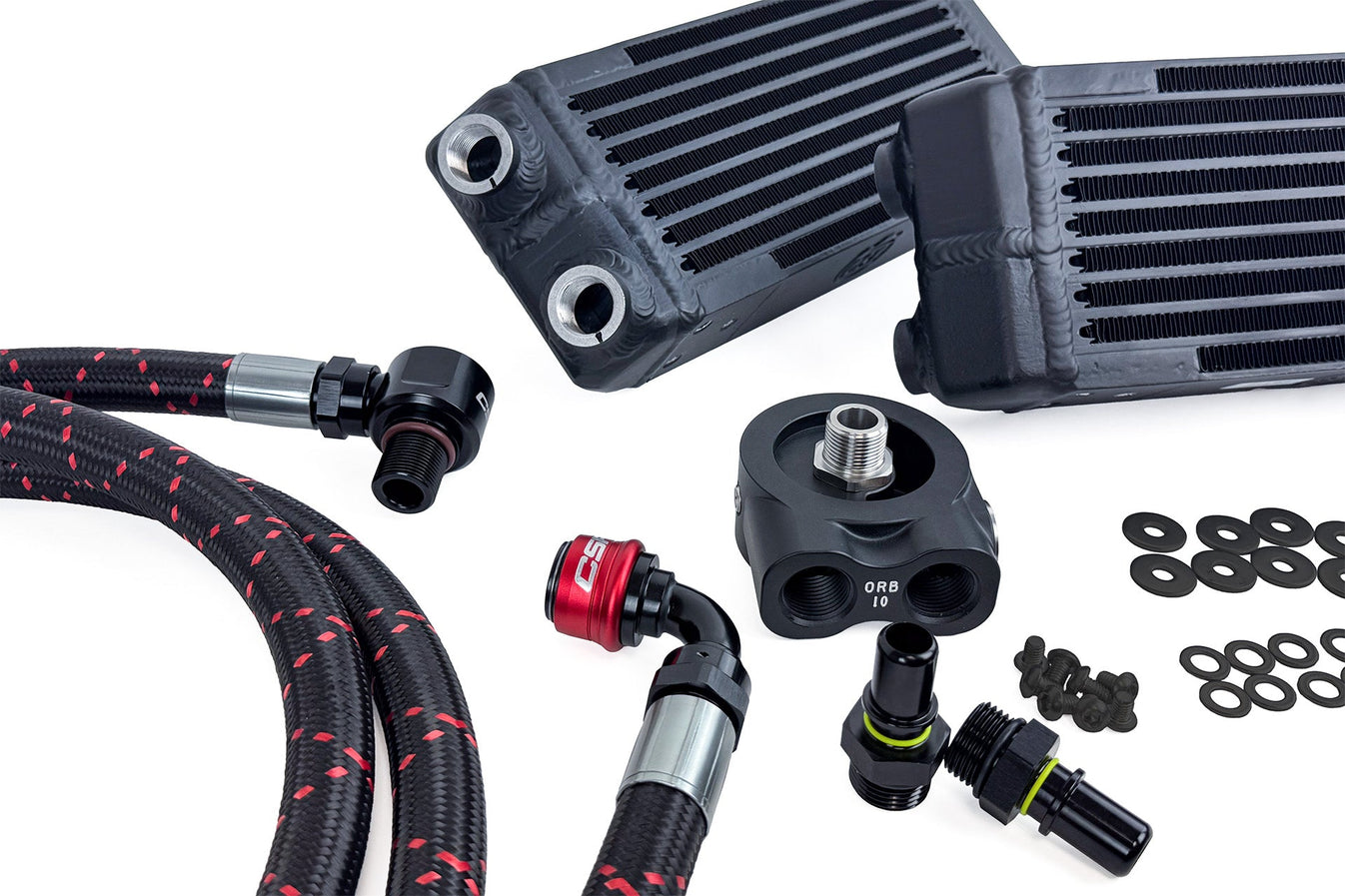

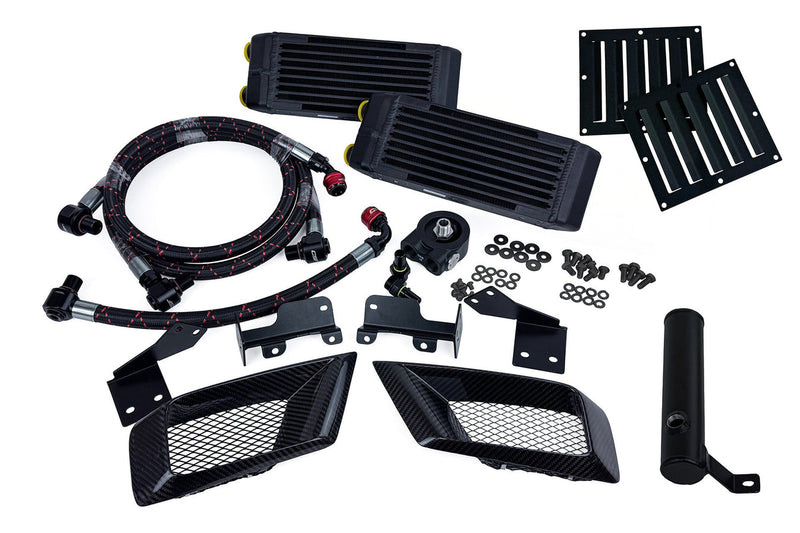

What’s Included

• Dual engine oil coolers
• All oil lines and fittings
• Carbon fibre bumper vents
• Mounting brackets and hardware
• Replacement washer fluid bottle
• Installation templates and instructions

Warranty

Covered by a 2-year limited manufacturer warranty.
