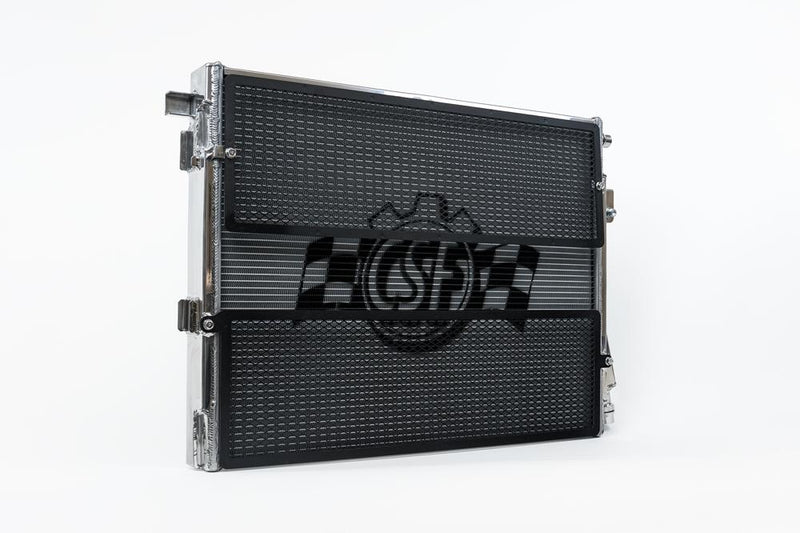

CSF High-Performance Front Mount Heat Exchanger Silver BMW M2 (G87) / M3 (G80/G81) / M4 (G82/G83)

CSF High-Performance Front Mount Heat Exchanger Silver - BMW M2 (G87) / M3 (G80/G81) / M4 (G82/G83) S58 - CSF #8215

Address heat soak on your BMW S58-powered M car with the CSF High-Performance Front Mount Heat Exchanger. Developed over nine months of testing with leading time attack teams and tuners, this heat exchanger is a critical bolt-on upgrade for any modified G8X pushing increased power through software tunes, bolt-on upgrades, or upgraded turbochargers.

The S58 engine uses a liquid-to-air charge cooler built into the intake manifold, with the front-mounted heat exchanger responsible for removing heat from the charge-air cooling system. Under sustained hard driving or track use, the factory single-row heat exchanger struggles to keep up, leading to rising intake air temperatures, ECU timing pull, and in extreme cases, limp mode. The CSF unit replaces the factory heat exchanger with a significantly more efficient 2-row 42mm core featuring CSF's exclusive B-Tube technology and 6.5mm tall multi-louvered fins, delivering faster heat soak recovery and lower intake air temperatures for consistent power output.

Key Features

• 2-row 42mm ultra-high-performance core (vs OEM single row)
• 6.5mm tall multi-louvered fin with CSF's exclusive B-Tube technology
• CNC machined mounting brackets with OEM-style quick-connect inlet/outlet
• 100% all-aluminium TIG-welded construction
• Includes black rock guards (upper and lower) and transmission cooler mounting kit
• Upper and lower rock guards for manual transmission models
• Upper rock guard and transmission cooler mounting kit for ZF8 auto models
• True plug-and-play drop-in fitment — no modifications required
• Suits both 6-speed manual (6MT) and ZF8 automatic transmissions
• Suits both RWD and AWD (xDrive) models
• 1-hour mirror finish hand polish
• 2-year limited warranty

Vehicle compatibility and fitment notes are provided in the tabs above. Please ensure your vehicle's year, trim level, and transmission configuration are confirmed before ordering.

Not sure if this suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
