What is Fuel Starvation and Why Does It Matter?
Fuel starvation occurs when the fuel pump cannot deliver a consistent supply of fuel to the engine. It happens most commonly during hard cornering, heavy braking, or aggressive acceleration — any situation where fuel sloshes away from the pump pickup inside the tank. On a stock vehicle at normal power levels, the factory fuel system handles this adequately. But once you add forced induction, larger injectors, or significantly more power, the demand on the fuel system exceeds what the factory setup was designed to deliver.
The consequences of fuel starvation range from mild to catastrophic. A brief interruption might cause a momentary lean spike that the ECU corrects. A sustained interruption under full boost can cause a dangerously lean condition, leading to detonation, melted pistons, and a destroyed engine. For vehicles used on track — where sustained high-G cornering and full-throttle runs are the norm — fuel starvation is not a theoretical risk. It is an inevitability that must be engineered out of the system.
This is where fuel surge tanks come in. They provide a buffered fuel supply that keeps the engine fed even when the main tank's pickup momentarily loses prime.
How a Fuel Surge Tank Works
A fuel surge tank (FST) is a small secondary reservoir that sits between the main fuel tank and the engine. The OEM fuel pump in the main tank acts as a lift pump, continuously feeding fuel into the surge tank. Inside the surge tank, one or more high-flow aftermarket fuel pumps draw from this buffer and deliver fuel to the fuel rails at the pressure the engine requires.
The key principle is simple: the volume of fuel stored inside the surge tank acts as a buffer. If the main tank's pump momentarily starves during a hard corner or under heavy braking, the surge tank still has fuel available to keep the engine supplied. The surge tank is also replenished by fuel returning from the fuel pressure regulator, so it stays topped up during normal operation.
Excess fuel that overflows the surge tank is returned to the main tank via a dedicated overflow line. This means the surge tank is always cycling fuel through it — supply from the main tank, fuel out to the engine, return from the regulator, overflow back to the main tank. It is a closed system that integrates seamlessly with the existing fuel infrastructure.
Types of Fuel Surge Tanks
Not all surge tanks are the same. The right choice depends on your power level, vehicle platform, and whether you are working with a factory fuel tank or a purpose-built fuel cell. Here are the main types in the Radium Engineering range.
External Single Pump FST
The most straightforward option. A single aftermarket fuel pump sits inside a compact CNC-machined aluminium canister that mounts externally — typically in the boot or under the vehicle. The OEM pump feeds fuel in, and the single surge tank pump feeds the engine. This is ideal for moderately modified street and track vehicles where a single high-flow pump provides enough fuel volume for the power target. It is also the simplest to plumb and install.

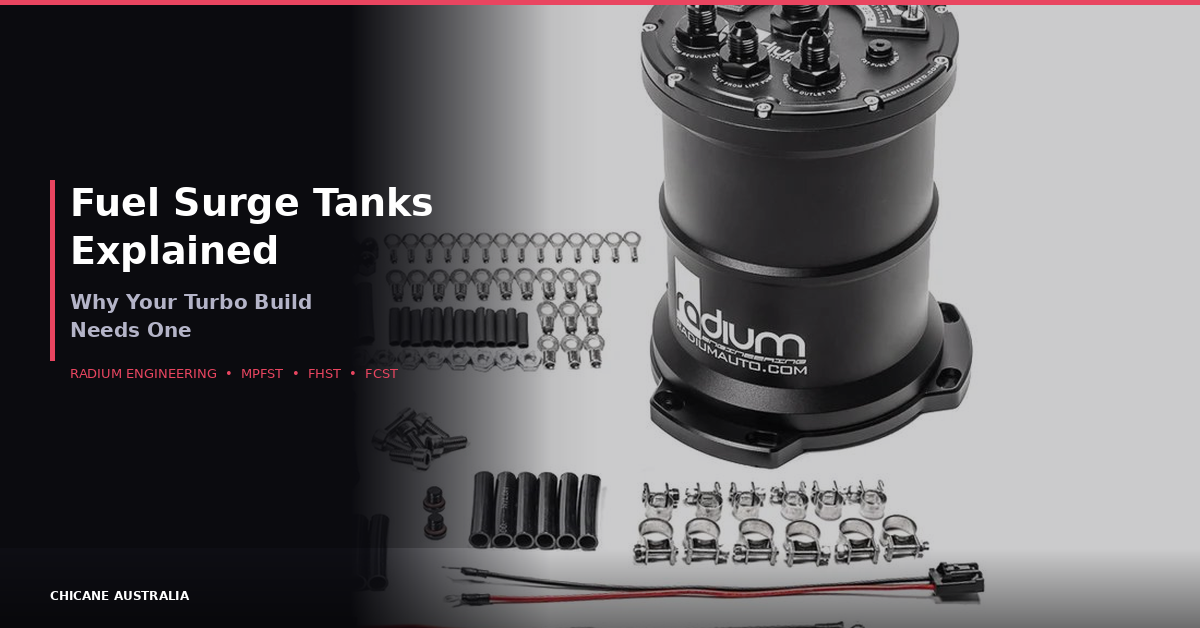

External Multi-Pump FST (MPFST)
Radium's MPFST is designed for high-power applications that demand more fuel flow than a single pump can provide. The MPFST accepts up to three fuel pumps, and because compatible pumps use integrated check valves, all pump outlets merge into a single line — simplifying external plumbing significantly. The 2024-redesigned MPFST features an internal swirl pot design that redirects incoming fuel tangentially through the canister, eliminating air bubbles and fuel foam that can affect pump performance. It also supports pump staging, where additional pumps activate only at higher demand, reducing electrical load and heat during cruising.
The MPFST is compatible with a wide range of brushed and brushless pumps, including the Bosch BR540 (DeatschWerks DW400), Walbro F90000267/274/285, and Ti Automotive E5LM brushless units. Radium also offers the MPFST-R — a regulated version with a built-in fuel pressure regulator featuring tool-less pressure adjustment, eliminating the need for a separate external regulator and further simplifying plumbing.
Fuel Hanger Surge Tank (FHST)
The FHST is a vehicle-specific solution that installs inside the factory fuel tank, replacing or supplementing the OEM fuel pump module. This is particularly useful on vehicles where mounting an external surge tank is impractical — such as the Nissan 370Z, which has an open cabin design with no firewall between the driver and the rear of the vehicle.
The FHST uses one-way fill valves on the bottom of the collector box that allow fuel in but not out, ensuring the surge tank pumps are always supplied. It works in conjunction with the OEM venturi jet pumps to scavenge fuel from all sections of the tank. No grinding, bending, or modification of the vehicle's sheet metal is required.
Fuel Cell Surge Tank (FCST)
For dedicated competition vehicles running a purpose-built fuel cell, Radium's FCST is a drop-in fuel pump system that installs inside the fuel cell using the industry-standard 6x10 inch, 24-bolt fill plate pattern. The FCST is a true dual-chamber system — a lift pump scavenges fuel from the bottom of the fuel cell and pumps it into a 2-litre internal surge tank canister, where up to three EFI pumps feed the engine.
Radium pioneered the in-tank fuel cell surge tank concept in 2013, and the FCST quickly became the preferred fuel system solution in professional racing. The current FCST-X is the latest evolution. This is the ultimate solution for competition vehicles — road racing, drifting, rally, endurance, and time attack builds where fuel delivery reliability is non-negotiable.
When Do You Need a Surge Tank?
Not every modified vehicle needs a surge tank. Here is a practical guide based on common build scenarios.
You probably do not need one if: You are running a mildly modified street car at stock or near-stock power levels with the original fuel pump. The factory fuel system is designed to handle normal driving conditions, and even spirited road use rarely causes sustained starvation on a properly functioning OEM setup.
You should seriously consider one if: You have added forced induction or significantly increased boost on a turbocharged car; you have upgraded to larger injectors and a higher-flow fuel pump; you are tracking your car regularly, especially on circuits with sustained high-G corners; you are running E85, which requires roughly 30% more fuel volume than petrol; or you are building beyond what the factory fuel tank baffling can reliably support.
You definitely need one if: You are building a dedicated track or competition car making serious power; you have experienced fuel pressure drops under hard driving; your data logging shows lean spikes during cornering or sustained full-throttle runs; or you are running a fuel cell in a competition vehicle.
Choosing the Right Surge Tank for Your Build
The decision comes down to power level, vehicle type, and intended use.
Street turbo builds (250-400kW): A single-pump external FST is typically sufficient. It provides a reliable buffer without the complexity of a multi-pump setup. Pair it with a quality fuel pressure regulator, filter, and appropriately sized AN lines for a complete system.
Serious track builds (400-600kW): The MPFST with two pumps is the sweet spot. Dual pumps provide the flow capacity needed for high power, while pump staging keeps things efficient during cruising. The MPFST-R variant with built-in regulator simplifies the plumbing package further.
All-out competition (600kW+): The MPFST with three pumps or the FCST inside a dedicated fuel cell. At this power level, fuel delivery is mission-critical and redundancy matters. The FCST is the gold standard for professional racing applications where everything runs from a purpose-built fuel cell.
Vehicles with packaging constraints: The FHST for platforms where external mounting is impractical. Currently available for specific vehicles like the Nissan 370Z, with more applications in development.
Mounting and Plumbing Considerations
Proper installation is critical to surge tank performance. A few key points to keep in mind.
Mounting location: The surge tank should be mounted in a location that is not prone to collision impact, away from heat sources like exhaust components, and clear of moving parts such as suspension components. The boot floor is the most common location for external surge tanks. Radium's MPFST features a contoured underside designed to sit securely on the uneven surfaces typically found in vehicle boots.
Line sizing: Undersized fuel lines will negate the benefits of a surge tank. The supply line from the main tank to the surge tank, the pump output line to the fuel rails, and the return lines must all be appropriately sized for your fuel flow requirements. Radium's surge tanks use 10AN ORB and 8AN ORB ports with pre-installed adapter fittings that can be swapped to suit your line setup.
Return line (overflow): The surge tank overflow line must return to the main fuel tank. On returnless fuel systems — which many modern vehicles use — you will need to create a return path to the main tank. This cannot be blocked or omitted; excess fuel must have somewhere to go.
Electrical: High-flow fuel pumps draw significant current. Radium's surge tanks use high-current stainless steel electrical studs with hermetic sealing. Ensure your wiring, relay, and fuse are rated for the combined current draw of all installed pumps, and run dedicated supply wiring from the battery rather than tapping into existing circuits.
Australian Track Considerations
For vehicles competing in Australian motorsport — whether it is time attack at Sydney Motorsport Park, sprint events at Wakefield Park, endurance racing at The Bend, or hillclimbs — fuel surge tanks are not optional at serious power levels. The sustained high-G loads through fast corners, combined with Australia's warm climate increasing fuel vapour pressure, make fuel starvation a genuine risk that increases with power and session length.
If you are running CAMS or Motorsport Australia sanctioned events, check your class regulations regarding fuel system modifications. FIA-certified fuel cells (such as the Radium RA-Series) paired with an FCST are compliant with most competition fuel system requirements. For state-level circuit events and track days, external surge tanks are widely accepted as safety-enhancing modifications.
Frequently Asked Questions
What does a fuel surge tank actually do?
A fuel surge tank is a small secondary fuel reservoir that sits between your main fuel tank and the engine. It holds a buffer volume of fuel so that if the main tank's pump momentarily loses prime during hard cornering, braking, or acceleration, the engine still receives a consistent fuel supply. The surge tank is continuously replenished by the main tank pump and by fuel returning from the fuel pressure regulator.
Do I need a fuel surge tank for street driving?
For most street-driven vehicles at stock or mildly modified power levels, a surge tank is not necessary. The factory fuel system is designed to handle normal driving conditions. A surge tank becomes important when you significantly increase power through forced induction, upgrade to higher-flow fuel pumps and injectors, switch to E85, or regularly track your car under sustained high-load conditions where fuel slosh can interrupt delivery.
What is the difference between an MPFST and an FHST?
An MPFST (Multi-Pump Fuel Surge Tank) is an external unit that mounts outside the fuel tank — typically in the boot — and can hold up to three fuel pumps. An FHST (Fuel Hanger Surge Tank) is a vehicle-specific unit that installs inside the factory fuel tank, replacing the OEM fuel pump module. The FHST is ideal for vehicles where mounting an external tank is impractical, while the MPFST offers more flexibility and higher flow capacity for high-power builds.
Can I run a surge tank with E85?
Yes. All Radium Engineering surge tanks are constructed from CNC-machined anodised aluminium with internal components and seals that are compatible with petrol, E85, ethanol, methanol, and other race fuels. E85 requires approximately 30% more fuel volume than petrol, making a surge tank particularly valuable for E85 builds where fuel delivery demands are significantly higher.
How do I know what size surge tank I need?
The surge tank size depends on your power level and the number of fuel pumps you need. For builds up to approximately 400kW, a single-pump FST is typically sufficient. For 400 to 600kW, a dual-pump MPFST provides the flow capacity needed. Above 600kW or for dedicated competition vehicles, a three-pump MPFST or a Fuel Cell Surge Tank (FCST) is recommended. Your fuel system builder or tuner can help determine the exact requirements based on injector size, fuel pressure, and target power.
